Supermicro CloudDC SuperServer 121C-TN2R

Outfitted with 4th or 5th generation Intel Xeon Scalable processors, the 2U Supermicro CloudDC SuperServer 121C-TN2R delivers up to 4TB of DDR5 ECC memory. There are 8x SAS, SATA storage bays up front with an option for installing 2x NVMe drive types. As an option, you can install 2x M.2 drives on the system board. Expansion options include 2x PCIe 5.0 x16 full-height, half-length slots, and 2x AIOM (Advanced I/O Module) OCP 3.0 mezzanine card slots. A single mLAN port is available for remote management of the system.
Configure

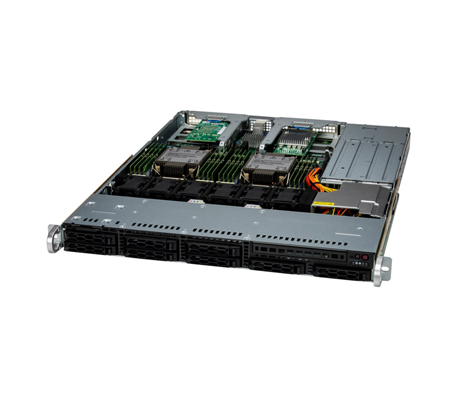

Supermicro CloudDC 121C-TN2R front of server
Intel Partner Gold AMD Executive Elite System Builder NVIDIA Elite Partner
Configure

Supermicro CloudDC SuperServer 121C-TN2R - System Overview

Description

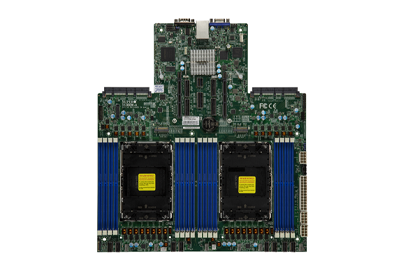

Supermicro CloudDC SuperServer 121C-TN2R motherboard

The Supermicro 121C-TN2R is optimized for cloud computing, use as a web server, data center optimization, a DNS or Gateway server, among other business critical applications. It’s powered by dual redundant 860W Platinum or 1200W Titanium rated power supply units (PSU).

*This system is only sold as a completely assembled unit with a minimum 2x CPUs, 4x DIMMs, 2x HDDs, SSDs or M.2 drives, plus 1x NIC either a PCIe NIC or AIOM OCP 3.0 card.

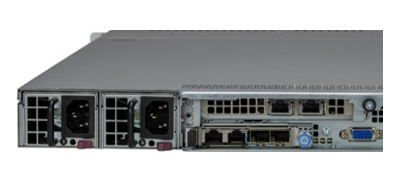

Supermicro CloudDC SuperServer 121C-TN2R PSUs

Supermicro CloudDC SuperServer 121C-TN2R - Specifications

Processor - 2 sockets

  • Dual Socket E (LGA-4677)
  • 5th Gen Intel Xeon Scalable Processors
  • 4th Gen Intel Xeon Scalable Processors
  • Support up to 270W TDP CPUs (air-cooled)*
  • Up to 32C/64T; Up to 82.5MB Cache per CPU

    • *Air Cooled CPUs with TDP over 250W only supported under specific conditions.

Memory

    Memory Capacity:

  • 16 x DIMM slots
  • Up to 4TB: 16x 256 GB DRAM
  • Memory Type: 5600MHz ECC DDR5 RDIMM

Drive Bays

    Hot-Swap:

  • 8x 2.5" hot-swap NVMe/SATA/SAS drive bays (2x 2.5" NVMe hybrid)
  • Storage drives require additional cables from the optional parts list

    • M.2:

  • 2x M.2 NVMe
  • M-Key, 2280

    • Peripheral Bays

  • 1x DVD-ROM drive bays (optional)

Expansion Slots

  • 2x PCIe 5.0 x16 FHHL slot(s)

Input / Output

    LAN:

  • 1 x Dedicated IPMI LAN port

    • USB:

  • 2 x USB 3.0 port(s) (2 rear)

    • Video:

  • 1 x VGA port(s)

    • Serial Port:

  • 1 x COM Port(s) (1 rear)

On-Board Devices

    SATA:

  • SATA3 (6Gbps); RAID 0/1/5/10 support

    • NVMe:

  • NVMe

    • Chipset:

  • Intel C741

    • Network Connectivity:

  • with Advanced IO Module, AIOM (OCP 3.0 NIC, refer to AIOM Network Card(s) under Optional Parts List for options)

    • IPMI:

  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support


    • Note: High TDP 200-400G NICs have support conditions due to thermal requirements.

Management

  • SCC
  • Redfish API
  • IPMI 2.0
  • SSM
  • SPM
  • SUM
  • NMI
  • Intel Node Manager
  • KVM with dedicated LAN
  • Watch Dog
  • SuperDoctor 5

System BIOS

  • AMI 32MB SPI FLASH ROM

System Cooling

    Fans:

  • 6x 4cm heavy duty fans with optimal fan speed control

    • Air Shroud:

  • 2 x Air Shrouds

Power Supply

  • 800W/860W 1U redundant power supply

Chassis

    Form Factor

  • 1U

    • Dimensions (D x W x H)

  • 23.5" x 17.2" x 1.7" (597mm x 437mm x 43mm)

    • Weight

  • Net Weight: 25 lbs (11.3 kg)
  • Gross Weight: 40 lbs (18.1 kg)

Supermicro CloudDC SuperServer 121C-TN2R - Documentation

Supermicro CloudDC SuperServer 121C-TN2R Data Sheet Supermicro CloudDC SuperServer 121C-TN2R User Manual Supermicro CloudDC SuperServer 121C-TN2R Quick Reference Guide
