Supermicro CloudDC SuperServer 222C-TN

This system is designed for Data Center Modular Hardware Systems (DC-MHS) to simplify Cloud Solution Provider (CSP) deployments and serviceability. Under the hood, the 2U platform delivers 2x Intel Xeon 6700 series processors with E-cores or 6700 or 6500 series processors with P-cores. The system can support CPUs with a maximum thermal design power (TDP) rating of 350W with air cooling. The Supermicro CloudDC SuperServer 222C-TN supports up to 6x PCIe 5.0 x16/x8 slots and 2x PCIe 5.0 x16 AIOM connectors. It also offers 3x long riser brackets to accommodate up to 2x double-width or 4x single-width GPUs.
Configure

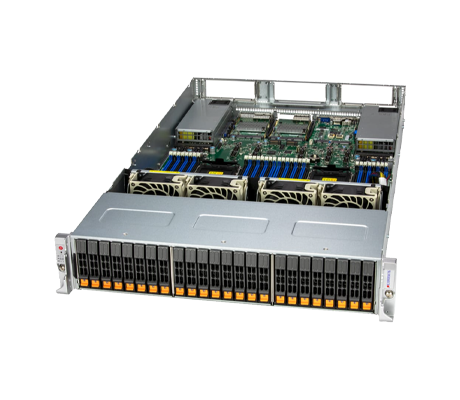

Supermicro CloudDC SuperServer 222C-TN side view
Intel Partner Gold AMD Executive Elite System Builder NVIDIA Elite Partner
Configure

Supermicro CloudDC SuperServer 222C-TN - System Overview

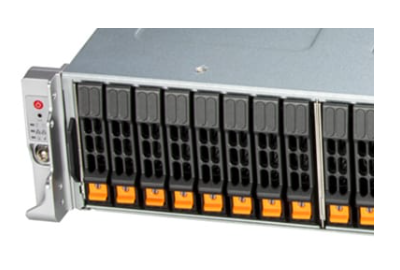

Supermicro CloudDC SuperServer 222C-TN front

24x hot-swap 2.5” NVMe/SATA/SAS bays on the front of the CloudDC SuperServer 222C-TN provide options for hot and cold storage. To boot the OS, there are 2x M.2 PCIe 5.0 x4 NVMe slots compatible with 2280 or 22110 form factor cards. For RAID, the system supports a VROC hardware key. Surrounding the CPUs are 32x DIMM slots that can accommodate up to 4TB of DDR5 RDIMM memory, when fully populated with 128GB memory modules. 2x 2000W redundant Titanium-level PSUs power the system.

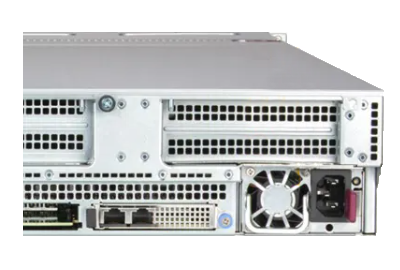

Supermicro CloudDC SuperServer 222C-TN rear

Software, including Supermicro SuperDoctor 5 (SD5), Supermicro Server Manager (SSM), and SuperServer Automation Assistant (SAA) can monitor and manage the SuperServer 222C-TN either locally or remotely. Along with the 3x internal CXL 2.0 devices supported, there are 3x PCIe configurations:

Default:
  • 4x PCIe 5.0 x16 (in x16) FHFL slot(s)
  • 1x PCIe 5.0 x8 (in x16) FHFL slot(s)
Option A:
  • 2x PCIe 5.0 x16 (in x16) FHFL slot(s)
Option B:
  • 6x PCIe 5.0 x16 (in x16) FHFL slots

*This system can only be sold as a completely assembled server with a minimum of 2x CPUs, 2x DIMMs, 1x storage device HDD/HDS/M.2, and 1x NIC. NIC requirement can be either an AIOM or PCIe card.

Supermicro CloudDC SuperServer 222C-TN - Specifications

Processor - 2 Sockets

  • Intel Xeon 6 6700/6500 series processors with P-cores
  • Intel Xeon 6 6700 series processors with E-cores

  • P-cores: Up to 86C/172T; Up to 336MB Cache per CPU
  • E-cores: Up to 144C/144T; Up to 108MB Cache per CPU
  • Supports up to 350W TDP CPUs (Air Cooled)

    • Socket:

  • Dual Socket E2 (LGA-4710)

Motherboard

  • Super X14DBHM

GPU

    Max GPU Count:

  • Up to 2 double-width or 4 single-width GPUs

    • Supported GPU:

  • NVIDIA PCIe: NVIDIA RTX PRO™ 6000 Blackwell Server Edition

Memory

    Memory Slots:

  • 32x DDR5 DIMM slots

    • Memory Capacity:

  • Max Memory (1DPC): Up to 2TB 6400MT/s ECC DDR5 RDIMM
  • Max Memory (2DPC): Up to 4TB 5200MT/s ECC DDR5 RDIMM

Drive Bays

    Default: Total 24 bays

  • 24x front hot-swap 2.5" NVMe*/SAS*/SATA* drive bays
    • *NVMe/SAS/SATA support may require additional storage controller and/or cables

    M.2:

  • 2x M.2 PCIe 5.0 x2 NVMe slots (M-key 22110(default)/2280; VROC required for RAID)

Expansion Slots

    Default:

  • 4x PCIe 5.0 x16 (in x16) FHFL slots
  • 1x PCIe 5.0 x8 (in x16) FHFL slot

    • Option A:

  • 2x PCIe 5.0 x16 (in x16) FHFL slots

    • Option B:

  • 6x PCIe 5.0 x16 (in x16) FHFL slots

On-Board Devices

    NVMe:

  • NVMe; RAID 0/1/5/10 support(VROC HW key required)

    • Chipset:

  • System on Chip

    • Network Connectivity:

  • Via AIOM

Input/Output

    LAN:

  • 1x RJ45 1 GbE Dedicated BMC LAN port(s)

    • USB:

  • 1x USB 3.0 Type-A port(s) (Rear)
  • 1x USB 2.0 Type-A port(s) (Rear)

    • Video:

  • 1x VGA port(s)

    • TPM:

  • 1x TPM header

System BIOS

    BIOS Type:

  • AMI 64MB SPI Flash ROM

Fans

  • 4x 8cm heavy duty fans with optimal fan speed control

Power Supply

  • 2x 2000W Redundant (1 + 1) Titanium Level (96%) power supplies

Chassis

    Enclosure:

    Height: 3.47" (88 mm)

    Width: 17.25" (438 mm)

    Depth: 30.7" (780 mm)

    Gross Weight: 83.78 lbs (38 kg)

    Net Weight: 61.73 lbs (28 kg)

Supermicro CloudDC SuperServer 222C-TN - Documentation

Supermicro CloudDC SuperServer 222C-TN Data Sheet Supermicro CloudDC SuperServer 222C-TN User Manual Supermicro CloudDC SuperServer 222C-TN Quick Reference Guide
