Supermicro CloudDC SuperServer 611C-TN4R

Built with 5th Gen Intel Xeon Scalable processors, the Supermicro CloudDC SuperServer 611C-TN4R features dual sockets and 16 DIMM slots. At full capacity it can provide up to 4TB of DDR5 memory operating at speeds of up to 5600MHz. This model has 4x 3.5" hot-swappable NVMe/SATA/SAS drive bays. 2x PCIe 5.0 x16 FHHL slots provide options for expansion. 2x 2.5" 7mm fixed drive bays are an optional feature, along with 2x NVMe M.2 slots on the motherboard of the Supermicro CloudDC 611C-TN4R.
Configure

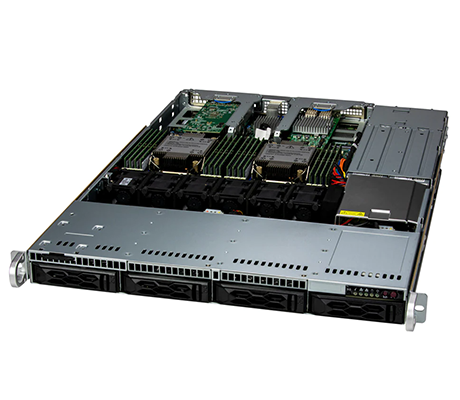

Supermicro 611C-TN4R side view
Intel Partner Gold AMD Executive Elite System Builder NVIDIA Elite Partner
Configure

Supermicro CloudDC SuperServer 611C-TN4R - System Overview

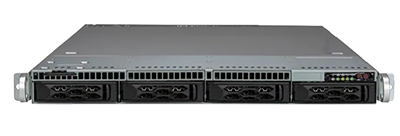

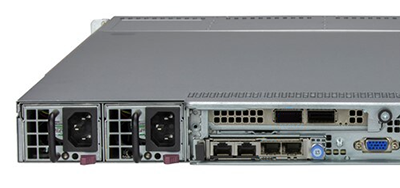

Supermicro SuperServer 611C-TN4R front detail Supermicro SuperServer 611C-TN4R detail top

Additional Information

The Supermicro 611C-TN4R can be used as a web server, for data centers, cloud computing, and use for DNS and Gateway Server. Heavy duty fans on this SuperServer number 6x total and measure in at 4cm. Automated fan speed control and 2x air shrouds ensure optimal cooling. High thermal design power (TDP) 200-400G network interface controllers (NICs) have additional support conditions due to thermal requirements and may require additional hardware. RAID of 0, 1, 5, and 10 for SATA3 drives is provided by the onboard controller. A Virtual RAID on CPU (VROC) key is required for NVMe RAID support.

NOTE: This product is only sold as a completely assembled system with a minimum of 2x CPUs, 4x DIMMs, 1x storage device (HDD, SSD, NVMe, M.2) and 1x NIC (Either advanced I/O Module (AIOM) or PCIe).

Supermicro CloudDC SuperServer 611C-TN4R - Specifications

Processor - 2 Sockets (per Node)

  • Dual Socket E (LGA-4677)
  • 5th Gen Intel Xeon Scalable Processors
  • 4th Gen Intel Xeon Scalable Processors
  • Support up to 270W TDP CPUs (air-cooled)*
  • Up to 32C/64T; Up to 82.5MB Cache per CPU

    • *Air Cooled CPUs with TDP over 250W only supported under specific conditions.

    Socket:

  • 2 x LGA-4677

Motherboard

  • Super X13DDW-A

Memory (per Node)

    Memory Slots:

  • 16 x DDR5 DIMM slots

    • Memory Capacty:

  • Up to 4TB: 16x 256GB DRAM

    • Memory Speed:

  • Up to 4800MHz

Drive Bays (per Node)

    Hot-Swap:

  • 4 x 3.5" hot-swap NVMe/SATA/SAS drive bays (Storage drives require additional cables from the optional parts list.)

    • M.2:

  • 2 x M.2 NVMe
  • Form Factor: 2280

    • Peripheral Bays:

  • 2 x 2.5" 7mm fixed drive bays (optional)

Expansion Slots (per Node)

  • 2 x PCIe 5.0 x16 Full-Height, Half-Length slots

On-Board Devices (per Node)

    Chipset:

  • Intel C741 chipset

    • Network Connectivity:

  • Via AIOM

    • IPMI:

  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Chassis

    Enclosure:

    Height: 1.7" (43mm)

    Width: 17.2" (437mm)

    Depth: 25.6" (650mm)

Supermicro CloudDC SuperServer 611C-TN4R - Documentation

Supermicro CloudDC Superserver 611C-TN4R Data Sheet Supermicro CloudDC SuperServer-611C-TN4R User Manual Supermicro CloudDC SuperServer-611C-TN4R Quick Reference Guide
