Supermicro FatTwin SuperServer F511E2-RT

The Supermicro FatTwin SuperServer F511E2-RT is a 4U rackmountable system, which house 8x compute nodes. Each node house a single 4th Generation Intel Xeon Scalable socket for a total of 8x across the whole system. There are 16x DIMM slots per node for up to 4TB of DDR5 memory. With all servers at maximum memory capacity, the system can provide up to 32TB of memory. 6x 2.5-inch hot-swap NVMe/SATA/SAS drive bays on the front of each server node provide a total of 48x drive bays on this chassis. The Supermicro F511E2-RT can have its capabilities expanded via a single PCIe 5.0 x16 low-profile per node, a total of 8x PCIe 5.0 slots on the whole system.
Configure

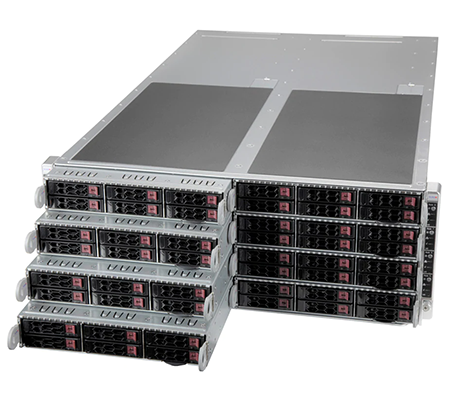

Supermicro F511E2-RT side view
Intel Partner Gold AMD Executive Elite System Builder NVIDIA Elite Partner
Configure

Supermicro FatTwin SuperServer F511E2-RT - System Overview

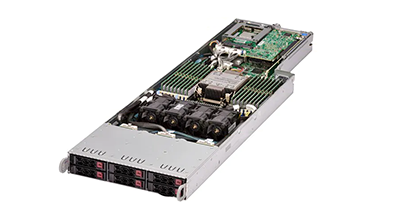

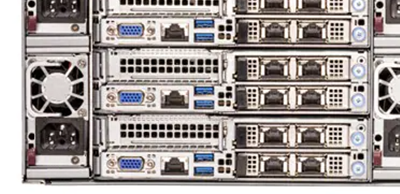

Supermicro SuperServer F511E2-RT front detail Supermicro SuperServer F511E2-RT detail top

Additional Features

Featuring 8x compute nodes, the Supermicro FatTwin F511E2-RT is designed for Hyperscale / Hyperconverged applications, High-Performance Computing and Big Data, and Telco Data Center tasks. In addition to the single low-profile PCIe 5.0 slot, there are 2x Advanced I/O Module (AIOM) slots compatible with OCP 3.0 mezzanine cards. 2x hybrid PCIe 3.0 x2 and SATA slots for support of Hybrid M.2 drives types. This system is powered by 4x 2000W Titanium Level power supplies in a redundant configuration.

NOTE: this product is sold only as a completely assembled system with 1x CPU and a maximum TDP of 350W. Under specific conditions higher wattage CPUs are supported.

Supermicro FatTwin SuperServer F511E2-RT - Specifications

Processor - 1 Socket

  • 4th Generation Intel Xeon Scalable Processor

    • Socket (per Node):

  • 1 x LGA-4677

    • Socket (Total):

  • 8 x LGA-4677

Motherboard

  • Super X13SEFR-A

Memory

    Memory Slots (per Node):

  • 16 x DDR5 DIMM slots

    • Memory Capacity (per Node):

  • Up to 4TB: 16x 256GB DRAM

    • Memory Slots (Total):

  • 128 x DDR5 DIMM slots

    • Memory Capacity (Total):

  • Up to 32TB: 128x 256GB DRAM

    • Memory Speed:

  • Up to 4800MHz

Drive Bays

    Drive Bays (per Node):

  • 6 x 2.5" hot-swap NVMe/SATA/SAS drive bays (6x 2.5" NVMe hybrid)

    • M.2 (per Node):

  • 2 x M.2 NVMe + SATA
  • M-Key, 2280/22110

    • Drive Bays (Total):

  • 48 x 2.5" hot-swap NVMe/SATA/SAS drive bays (48x 2.5" NVMe hybrid)

    • M.2 (Total):

  • 16 x M.2 NVMe + SATA
  • M-Key, 2280/22110

Expansion Slots

    Per Node:

  • 1 x PCIe 5.0 x16 LP slot
  • 2 x AIOM slots PCIe 5.0

    • Total:

  • 8 x PCIe 5.0 x16 LP slots
  • 16 x AIOM slots PCIe 5.0

On-Board (per Node)

    Chipset:

  • Intel C741 chipset

    • Network Connectivity:

  • 1 x 1GbE RJ45 (BMC)

    • IPMI:

  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Input / Output (per Node)

    SATA:

  • 10 x SATA (6Gbps) ports

    • LAN:

  • 1 x RJ45 Dedicated IPMI LAN port

    • USB:

  • 2 x USB 3.0 ports (2 rear)

    • Video:

  • 1 x VGA ports

Chassis

    Enclosure:

    Height: 6.96" (177mm)

    Width: 17.63" (448mm)

    Depth: 29" (737mm)

Supermicro FatTwin SuperServer F511E2-RT - Documentation

Supermicro FatTwin SuperServer F511E2-RT Data Sheet
