Supermicro FatTwin SuperServer F521E3-RTB

Fully configured, each of the 4x compute nodes has a maximum memory capacity of 4TB. Across the whole system, the maximum memory capacity is 16TB. Each node holds a single 4th Generation Intel Xeon Scalable CPU (LGA-4677 CPU socket) with 16x DDR5 DIMM slots. Every node on the Supermicro FatTwin F521E3-RTB houses up to 8x 3.5-inch hot-swap NVMe/SATA/SAS drive bays. To expand the capabilities of this system, each node supports a single PCIe 5.0 x16 low-profile slot.
Configure

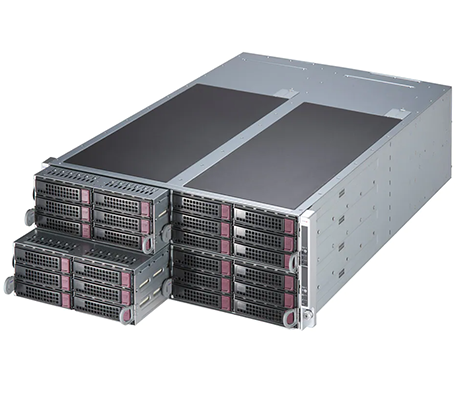

Supermicro F521E3-RTB side view
Intel Partner Gold AMD Executive Elite System Builder NVIDIA Elite Partner
Configure

Supermicro FatTwin SuperServer F521E3-RTB - System Overview

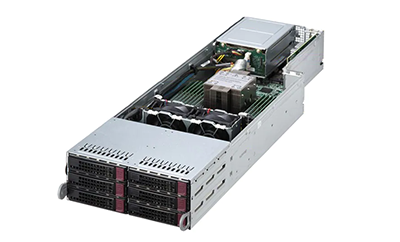

Supermicro SuperServer F521E3-RTB front detail Supermicro SuperServer F521E3-RTB detail top

Additional Features

The Supermicro F521E3-RTB is designed for Hyperscale/Hyperconverged infrastructure, Data Center Enterprise Applications, HPC and Big Data, and Telco Data Center tasks. Across the whole system there are 4x 4th Generation Intel Xeon Scalable CPU sockets and 64x DDR5 DIMM slots. There are also 2x hybrid M.2 slost on the system board for PCIe 3.0 or SATA drive types. It is powered by 4x 2000W Titanium Level power supplies in a redundant configuration.

NOTE: this produict is sold only as a completely assembled system with 1x CPU and a maximum TDP of 350W. Under specific conditions higher wattage CPUs are supported.

Supermicro FatTwin SuperServer F521E3-RTB - Specifications

Processor - 1 Socket

  • 4th Generation Intel Xeon Scalable Processor

    • Socket (per Node):

  • 1 x LGA-4677

    • Socket (Total):

  • 4 x LGA-4677

Motherboard

  • Super X13SEFR-A

Memory

    Memory Slots (per Node):

  • 16 x DDR5 DIMM slots

    • Memory Capacity (per Node):

  • Up to 4TB: 16x 256GB DRAM

    • Memory Slots (Total):

  • 64 x DDR5 DIMM slots

    • Memory Capacity (Total):

  • Up to 16TB: 128x 256GB DRAM

    • Memory Speed:

  • Up to 4800MHz

Drive Bays

    Drive Bays (per Node):

  • 8 x 3.5" hot-swap NVMe/SATA/SAS drive bays (8x 2.5" NVMe hybrid)

    • M.2 (per Node):

  • 2 x Hybrid M2 (PCIe 3.0 x2 & SATA)
  • M-Key, 2280/22110

    • Drive Bays (Total):

  • 32 x 3.5" hot-swap NVMe/SATA/SAS drive bays (32x 2.5" NVMe hybrid)

    • M.2 (Total):

  • 8 x Hybrid M2 (PCIe 3.0 x2 & SATA)
  • M-Key, 2280/22110

Expansion Slots

    Per Node:

  • 1 x PCIe 5.0 x16 LP slot
  • 1 x AIOM slot

    • Total:

  • 4 x PCIe 5.0 x16 LP slots
  • 4 x AIOM slots

On-Board (per Node)

    Chipset:

  • Intel C741 chipset

    • Network Connectivity:

  • 1 x 1GbE RJ45 (BMC)

    • IPMI:

  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Input / Output (per Node)

    SATA:

  • 10 x SATA (6Gbps) ports

    • LAN:

  • 1 x RJ45 Dedicated IPMI LAN port

    • USB:

  • 2 x USB 3.0 ports (2 rear)

    • Video:

  • 1 x VGA ports

Chassis

    Enclosure:

    Height: 6.96" (177mm)

    Width: 17.63" (448mm)

    Depth: 29" (737mm)

    Net weight: 150 lsb (68.04kg)

Supermicro FatTwin SuperServer F521E3-RTB - Documentation

Supermicro FatTwin SuperServer F521E3-RTB Data Sheet Supermicro FatTwin SuperServer F521E3-RTB User's Manual
