The Supermicro FlexTwin SuperServer 122FT-DEO-LCC is a 1 OU, 2-node liquid-cooled system designed for extreme compute density in Open Compute Project (OCP) ORv3 racks. Each node supports dual Intel Xeon 6900 Series processors with up to 128 P-cores or Intel Xeon 6+ processors with up to 288 E-cores. At full capacity it can provide up to 6TB of DDR5 memory, per node, to address high-density HPC, scientific research, and cloud deployments. Direct-to-chip liquid cooling captures up to 90% of server heat.

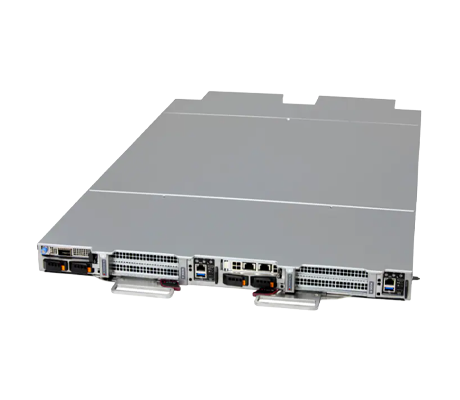

Supermicro FlexTwin SuperServer 122FT-DEO-LCC - System Overview
Additional Information

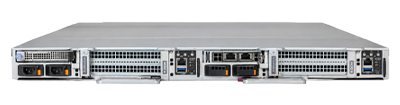

The Supermicro 122FT-DEO-LCC houses 2x independent, hot-pluggable dual-socket nodes in a single 1-OU chassis. Each node features a direct-to-chip cold-plate liquid cooling. This design supports processors with up to 500W TDP without thermal throttling. The front panel design provides access to nodes, I/O, and storage entirely from the cold aisle. A 44OU ORv3 rack can accommodate up to 40 systems, or 80 nodes, delivering as many as 46,080 cores depending on the processor configuration.
Each node includes one PCIe 5.0 x16 AIOM slot, which is OCP 3.0 compatible. Optional riser kits provide additional FHHL and LP PCIe 5.0 x16 slots. Storage options include up to 2x front hot-swap E1.S PCIe 5.0 x4 NVMe drives per node. Each node also supports 2x internal M.2 PCIe 5.0 x4 NVMe slots. It is fully compatible with 21-inch OCP ORv3 racks and a 1400A busbar with power shelves.
Available Configurations
Explore available configurations for the Supermicro FlexTwin SuperServer 122FT-DEO-LCC. Each configuration includes a specific combination of components and options to meet different performance, cooling, storage, and deployment requirements.
- Dual Socket BR (LGA-7529) - Intel Xeon 6900 Series processors with P-cores and Intel Xeon 6+ processors
- P-cores: Up to 128 cores/256 threads; Up to 504MB Cache per CPU - E-cores: Up to 288 cores/288 threads; Up to 576MB Cache per CPU
- Supports up to 500W TDP CPUs (Liquid Cooled)
Memory (Per Node)
- 24x DIMM slots - Max Memory (1DPC): Up to 3TB 8800MT/s ECC DDR5 MRDIMM (P-core only) - Max Memory (1DPC): Up to 6TB 6400MT/s ECC DDR5 RDIMM (P-core) - Max Memory (1DPC): Up to 3TB 8000MT/s ECC DDR5 RDIMM (E-core)
Drive Bays (Per Node)
- Option A: Total 2 bays - 2x front hot-swap E1.S PCIe 5.0 x4 NVMe* drive bays *NVMe support may require additional storage controller and/or cables
Get a quote for Supermicro FlexTwin SuperServer 122FT-DEO-LCC
If you know what you want but can't find the exact configuration you're looking for, have one of our knowledgeable sales staff contact you. Give us a list of the components you would like to incorporate into the system, and the quantities, if more than one. We will get back to you immediately with an official quote.
