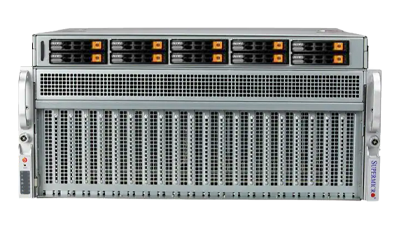

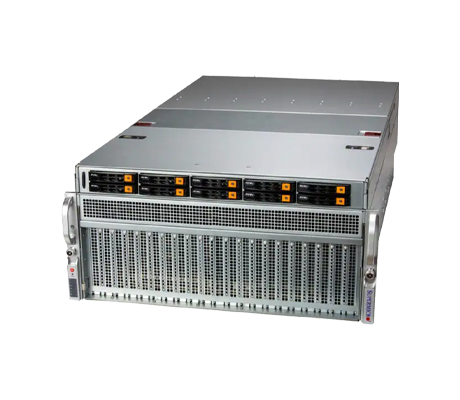

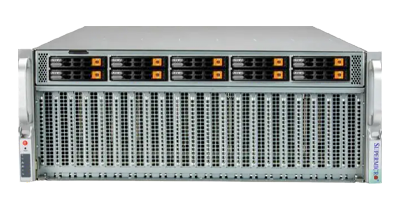

The Supermicro 4124GQ-TNMI features dual AMD EPYC 7003 series processors with up to 128 cores and 256 threads. It supports a Thermal Design Power (TDP) rating of up to 280W when air cooled. Each CPU delivers 8x memory channels and oversees 16x DDR4 memory module slots for 32x memory module slots total. At capacity it can deliver up to 8TB of memory. It’s compatible with RDIMMs and LRDIMMs, which can reach memory speeds of 3200MT/s when 2x DIMMs per channel are installed. On the front panel, there are 10x hot-swap 2.5" drive bays which can be configured with NVMe, SAS, or SATA drives. On the rear, 8x PCIe 4.0 x16 are accessible via PLX slots with an optional 2x PCIe 4.0 x16 LP slots.
Administrators can manage the Supermicro GPU A+ 4124GQ-TNMI both remotely or at-chassis using software like Supermicro SuperDoctor 5 (SD5), Supermicro Server Manager (SSM), and SuperServer Automation Assistant (SAA). On the rear panel there are 4x 3000W Titanium level power supplies offering 2 + 2 redundancy. This product is only sold as a completely assembled system with a fully populated universal GPU baseboard, a minimum of 2x CPUs, a minimum of 512GB of memory, 1x storage device, and 1x NIC included on the IO board.
Memory Slots:
Max GPU Count: 4x onboard GPUs
Supported GPU:
CPU-GPU Interconnect:
Default: Total 10 bays
Default:
Option A*:
*Requires additional parts
Chipset:
Network Connectivity:
IPMI:
Enclosure: 4U Rackmount
Height: 7" (175.6 mm)
Width: 17.67" (449 mm)
Depth: 32.79" (833 mm)
Gross Weight: 140 lbs (64 kg)
Net Weight: 105 lbs (48 kg)
