Supermicro GPU A+ Server 4125GS-TNRT2 - System Overview
For GPU-intensive workloads, the server supports up to 10x double-width, full-length GPUs with a PCIe 5.0 x16 CPU-to-GPU interconnect, along with optional NVIDIA NVLink Bridge and AMD Infinity Fabric Link. Compatible GPUs include:
NVIDIA PCIe:
- H100, H100 NVL, A30, A40, L4, L40S, RTX 6000 Ada, RTX A4000, A100, RTX A6000, L40, RTX 4000 Ada, RTX 4000 SFF Ada, RTX 4500 Ada, RTX 5000 Ada, RTX PRO 6000 Blackwell Max-Q, RTX A5000
AMD PCIe:

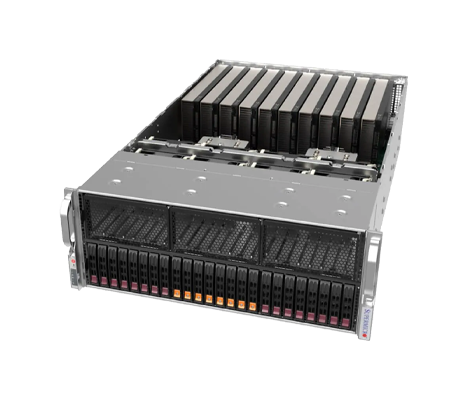

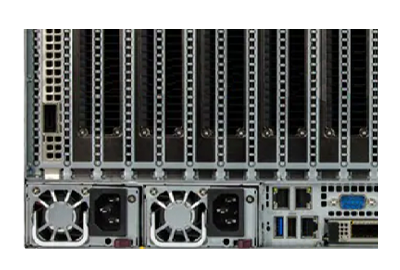

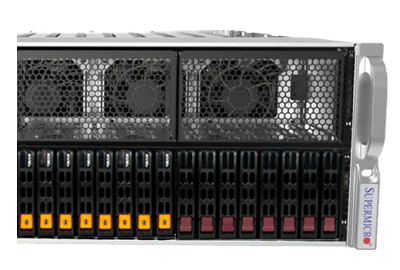

The front panel offers 24x 2.5-inch hot-swap NVMe, SATA, and SAS drive bays, with 8x NVMe and 2x SATA drives supported by default. For boot drives, the motherboard provides 1x M.2 PCIe 3.0 x4 NVMe slot. Expansion is handled via 11x PCIe Gen5 x16 FHFL slots accessible from the rear panel. Another option, Option A, provides 13x PCIe 5.0 x16 FHFL slots. 4x 2000W Titanium-level power supplies provide 2+2 redundancy. The Supermicro 4125GS-TNRT2 can be managed locally or remotely using Supermicro’s software tools. Minimum configuration requirements include 2x CPUs, 2x GPUs, 2x DIMMs, and 1x storage device.
