Offering high performance computing in an 8U chassis, the Supermicro GPU A+ Server 8125GS-TNMR2 houses 2x AMD EPYC 9004 Series Processors. Those CPU support 8x AMD Instinct MI300X GPU Accelerators with Remote Direct Memory Access (RDMA) featuring a 1:1 GPU to NIC ratio for unrivaled throughput. Each CPU socket supports 12x DIMM slots, for a total memory capacity of up to 6TB of DDR5 RDIMMs or LRDIMMs. The storage configuration on this server supports 18x 2.5-inch hot-swap NVMe/SATA drive bays, total. 8x PCIe 5.0 x16 low-profile slots are compatible with 8x AMD MI300X GPUs.

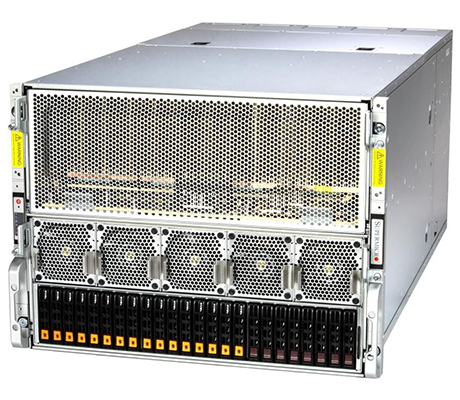

Supermicro GPU A+ Server 8125GS-TNMR2 - System Overview
Additional Features
Designed for high-performance computing, industrial automation, retail, AI/Deep learning training, and climate, and weather modeling tasks. There are a total of 24x DIMM slots on the system board, compatible with Registered DIMMs or Load Reduced DIMMs. Fully configured, the maximum memory capacity on the Supermicro 8125GS-TNMR2 is up to 6TB. Powering this system, there are 6x 3000W Titanium level power supplies in a redundant configuration with an option to install 2x more. Storage solutions on this system include a total of 18x 2.5-inch drive bays accessible from the front of the server. Depending on application needs, the system can be configured with dedicated Gen5 NVMe drives in all 18 bays or with 16x 2.5-inch NVMe plus 2x hot-swap SATA drives. Additional hard drive controllers may be required to activate all drive bays.
In order to meet fast access storage needs or OS installation, there is a single M.2 NVMe drive slot on the system board as well. System expansion is achieved via 8x PCIe 5.0 x16 low-profile slots and 2x PCIe 5.0 x16 full-height, full-length slots. Administrators have the option to activate 2x more optional x16 slots. The Instinct MI300X GPUs reside on a separate pull-out drawer and are connected to the CPUs via PLX switch. With 8x network interface controllers (NICs) installed, the system offers a 1:1 ratio of NICs to GPUs with remote direct memory access. The MI300X GPUs are based on the CDNA3 architecture and have a maximum dedicated memory of 192GB.
Supported GPUS:
AMD MI300X
NOTE: This system is only sold as a completely assembled system with minimum 2 CPUs (minimum 48 cores per socket), 1.5TB of memory, 1 storage device, and 1 BMC port.
Supermicro GPU A+ Server 8125GS-TNMR2 - Specifications
Processor - 2 Sockets
AMD EPYC 9004 Series Processor
Socket:
SP5
TDP:
400W (Air Cooled)
Motherboard
Super H13DSG-OM
Memory
Memory Capacity:
24x DIMM slots
Up to 6TB
Memory Type:
4800MHz ECC DDR5 RDIMM/LRDIMM
Drive Bays
Drive Bays:
18 x 2.5" hot-swap NVMe/SATA drive bays (16 x 2.5" NVMe dedicated)
