Designed for applications in AI, Deep Learning, media and video streaming plus industrial automation, gaming and for use as a high-performance enterprise server, each of the two server nodes in the Supermicro GPU SuperServer 210GP-DNR can support up to 3x full-height double-width PCIe-based GPUs, for 12x total. Each of the two server nodes supports a single 3rd Generation Intel Xeon Scalable Processor for a total of 2 sockets across both nodes of the 210GP-DNR. The system board holds a total of 8x DIMM slots, for a combined 16x DIMM slots. On the front of each node there are dual hot-swappable 2.5-inch U.2 NVMe drive bays. Each of the nodes support up to 3x full-height, full-length PCIe GPUs. This high-performance system is powered by 2600W Redundant Power Supplies.
*This system is only sold completely assembled with a minimum of 1CPU, 2x DIMMs, 1x GPU, and 1x storage device installed.
Depending on the chosen processor for the Supermicro SuperServer 210GP-DNR, the 3rd generation Intel Xeon Scalable Processor can provide up to 40x Physical Cores and 80x Virtual Threads. With both nodes fully configured with top-of-the-line CPUs it has the potential to hold 80x Physical Cores and 160x Virtual Threads. The system architecture supports a CPU Thermal Design of 270W.
On the front of each of the nodes there are dual 2.5-inch U.2 NVMe Gen4 hot-swap drive bays. In addition, there are 2x M.2 NVMe/SATA3 slots on the system board of each node that can be used to support the OS in mirror mode.
Each node of the Supermicro 210GP-DNR houses 8x DIMM slots for a total of 16x DIMM slots across both nodes. Registered and Load Reduced DIMMs are both fully supported on the Supermicro GPU 210GP-DNR server. At full capacity, this system holds up to 2TB of memory using 8x 256GB ECC DDR4 LRDIMM/RDIMM DRAM modules. Memory speeds of compatible DIMMs include 3200MHz, 2933MHz, 2666MHz.
A total of 3x PCIe GPUs can be installed on each of the two nodes housed in the Supermicro 210GP-DNR server. 3x PCIe Gen4 x16 full-height full-length, double-width slots can be used to install the GPUs. The GPUs are linked to one another via PCIe. An advanced I/O module (AIOM) or OCP 3.0 card can also be installed in each node via a PCIe 4.0 x8 mezzanine slot.
Supermicro offers a variety of software management features such as the Intelligent Platform Management Interface (IPMI) 2.0, KVM with dedicated LAN, SuperDoctor 5, Watch Dog, and Out-of-band Management Package. The AST2500 Baseboard Management Controller (BMC) provides on-site or remote access to the system.

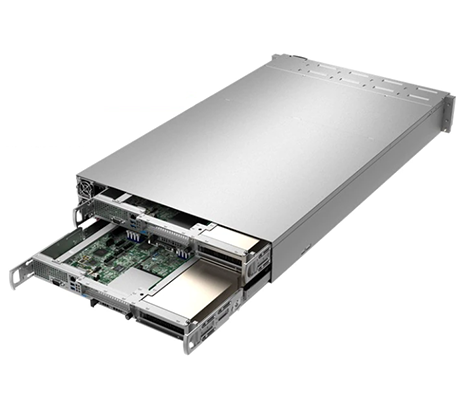

The Supermicro GPU SuperServer 210GP-DNR is a 2U rackmountable server populated with 2x single-socket server nodes. Compatible 3rd generation Intel Xeon Scalable Processors, the single-socket supports 8x DIMM slots on the system board of each node. The front of each node holds 2x 2.5-inch U.2 NVMe Gen4 supported drive bays. Each node also holds 3x FHFL double-width GPUs, connecting them together via PCIe.
Compose the exact configuration you looking for to build the perfect server.
Just add components and quantities you would like to incorporate into the system
