The Supermicro GPU SuperServer 220GQ-TNAR+, with its 2U capacity, is ideal for high performance computing, AI, deep learning training, and more. The system is outfitted with dual 3rd Generation Intel Xeon Scalable processors with a core count of up to 40 cores each and a maximum TDP of up to 270W. With 32x 256GB DRAM, or 16x 512GB PMem (Intel Persistent memory 200 series), the server supports up to 8TB of memory with speeds of up to 3200MHz. It includes NVIDIA's NVLink with NVSwitch for support of up to 4x HGX A100 SXM4 GPUs, plus a PCIe 4.0 x16 CPU-to-GPU Interconnect.

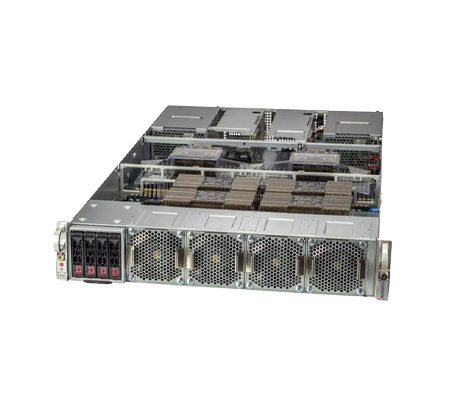

Supermicro GPU SuperServer 220GQ-TNAR+ - System Overview
The flexible Supermicro 220GQ-TNAR+ offers several storage configurations. Storage options include 4x 2.5-inch hot-swap NVMe/SATA/SAS drive bays, 2x M.2 NVMe slots, or 2x M.2 SATA3 slots. Up to 4x PCIe 4.0 x16 low-profile slots can be accessed through the rear of the chassis, as well as dual redundant 3000W Titanium level power supplies. To manage the server, there is a dedicated IPMI LAN port for at-chassis management. The system can also be managed with IPMI 2.0, SuperDoctor 5, Redfish API, and Supermicro Update Manager, among others.
Available Configurations
Explore available configurations for the Supermicro GPU SuperServer 220GQ-TNAR+. Each configuration includes a specific combination of components and options to meet different performance, cooling, storage, and deployment requirements.
Get a quote for Supermicro GPU SuperServer 220GQ-TNAR+
If you know what you want but can't find the exact configuration you're looking for, have one of our knowledgeable sales staff contact you. Give us a list of the components you would like to incorporate into the system, and the quantities, if more than one. We will get back to you immediately with an official quote.
