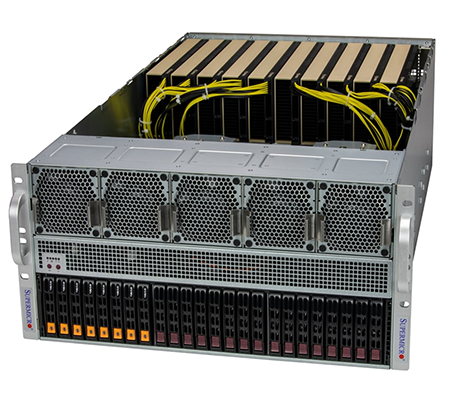

Supermicro GPU SuperServer 521GE-TNRT

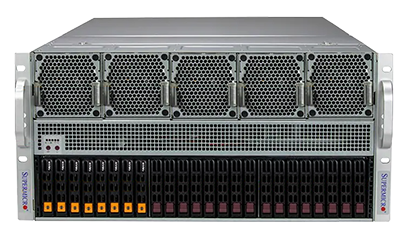

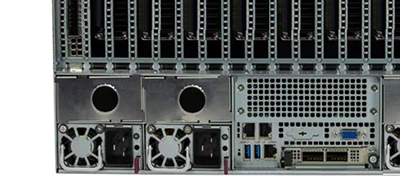

Featuring up to 10x PCIe-based GPGPUs through a PCIe 5.0 dual-root switch, the 5U Supermicro GPU SuperServer 521GE-TNRT features dual 4th or 5th Generation Intel Xeon Scalable Processors. With 32x DDR5 DIMM slots on the system board, this platform can support a maximum memory capacity of up to 8TB. On the front of the system there are 24x 2.5-inch hot-swap NVMe/SATA/SAS drive bays. 8x of the drive bays are NVMe hybrid bays, plus 8x dedicated to NVMe with add-on card. Accessible from the rear of the server, there are 12x PCIe 5.0 x16 Low-Profile slots. Supported GPU models on this system include the NVIDIA H100 and NVIDIA A100.

Supermicro GPU SuperServer 521GE-TNRT - System Overview

Summary

With support for GPU acceleration the dual-root Supermicro 521GE-TNRT GPU server is designed for High Performance Computing, VDI, AI/Deep Learning applications, and more. Powering the system are 4x 2700W Titanium level (2+2) redundant power supplies.

NOTE: This system is only sold as a complete system and should include at least 2 CPU, 4 DIMMs, & 1 HDD/SSD.

Supermicro GPU SuperServer 521GE-TNRT - Specifications

Processor - 2 Sockets

5th Generation Intel Xeon Scalable Processor
4th Generation Intel Xeon Scalable Processor
Up to 64C/128T; Up to 320MB Cache per CPU
Supports up to 350W TDP CPUs (Air Cooled)
Supports up to 385W TDP CPUs (Liquid Cooled)

Socket:

2 x LGA-4677

Motherboard

Super X13DEG-OA

Memory

32 x DDR5 DIMM slots

Memory Capacty:

Up to 8TB: 32x 256GB DRAM

Memory Speed:

Up to 5600MHz

Drive Bays

24 x 2.5" hot-swap NVMe/SATA/SAS drive bays (8x 2.5" NVMe hybrid; 8x 2.5" NVMe dedicated)

M.2:

2 x M.2 NVMe (2280/22110 form factor)

GPU

GPU-NVH100-80,GPU-NVA100-80-NC

CPU-GPU Interconnect:

PCIe 5.0 x16 Switch Dual-Root

GPU-GPU Interconnect:

NVIDIA NVLink Bridge (optional)

Expansion Slots

12 x PCIe 5.0 x16 LP slot(s)
1 x PCIe 5.0 X16 slot(s)

On-Board Devices

Intel C741 chipset

Network Connectivity:

2 x 10GbE BaseT with Intel® X710-AT2

IPMI:

Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Input / Output

1 x VGA port

Chassis

Height: 7" (178mm)

Width: 17.2" (437mm)

Depth: 29" (737mm)
