Supermicro GPU SuperServer 821GE-TNHR

The 8U Supermicro GPU SuperServer 821GE-THNR supports up to 2x 4th or 5th generation Intel Xeon Scalable Processors and up to 8x SXM5 NVIDIA HGX H100 GPUs. 32x DIMM slots on the system board provide a maximum memory capacity of up to 8TB. 2x NVME M.2 drives and 20x 2.5-inch hot-swappable NVMe/SATA drive bays, 8x of which are dedicated NVMe bays provide storage options. An SXM5 Multi-GPU Board with NVIDIA’s NVLink and NVSwitch provides the GPU-to-GPU interconnect. There are 8x PCIe 5.0 x16 low-profile slots and 2x PCIe 5.0 x16 full-height, full-length slots on the rear of the Supermicro GPU 821GE-TNHR.
Configure

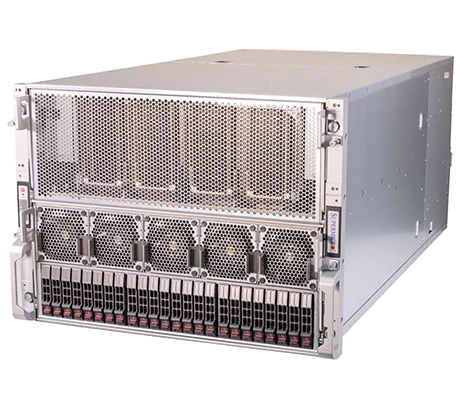

Supermicro 821GE-TNHR side view
Intel Partner Gold AMD Executive Elite System Builder NVIDIA Elite Partner
Configure

Supermicro GPU SuperServer 821GE-TNHR - System Overview

Supermicro 821GE-TNHR front detail Supermicro 821GE-TNHR detail top

Summary

Supermicro’s 821GE-THNR is designed for High Performance Computing (HPC), Finance and Economics applications, AI/Deep Learning Training, Conversational AI, and more.

NOTE: This system is only sold as a complete system and should include at least 1 CPU, 1 DIMM, and 1 HDD/SSD.

Supermicro GPU SuperServer 821GE-TNHR - Specifications

Processor - 2 Sockets

  • 5th Generation Intel Xeon Scalable Processor
  • 4th Generation Intel Xeon Scalable Processor
  • Up to 64C/128T; Up to 320MB Cache per CPU
  • Supports up to 350W TDP CPUs (Air Cooled)​
  • Supports up to 385W TDP CPUs (Liquid Cooled)​

    • Socket:

  • 2 x LGA-4677

Motherboard

  • Super X13DEG-QT

Memory

    Memory Slots:

  • 32 x DDR5 DIMM slots

    • Memory Capacty:

  • Up to 8TB: 32x 256GB DRAM

    • Memory Speed:

  • Up to 5600MHz

Drive Bays

    Hot-Swap:

  • 20 x 2.5" hot-swap NVMe/SATA drive bays (8x 2.5" NVMe dedicated)

    • M.2:

  • 2 x M.2 NVMe

GPU

    Supported GPU:

  • HGX H100 8-GPU SXM5 Multi-GPU Board

    • CPU-GPU Interconnect:

  • PCIe 5.0 x16 CPU-to-GPU Interconnect

    • GPU-GPU Interconnect:

  • NVIDIA NVLink with NVSwitch

Expansion Slots

  • 8 PCIe 5.0 x16 LP slots
  • 2 PCIe 5.0 x16 FHFL slots

On-Board Devices

    Chipset:

  • Intel C741 chipset

    • Network Connectivity:

  • 2 x 10GbE BaseT with Intel® X550-AT2 (optional)
  • 2 x 25GbE SFP28 with Broadcom® BCM57414 (optional)
  • 2 x 10GbE BaseT with Intel® X710-AT2 (optional)

    • IPMI:

  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Input / Output

    Video:

  • 1 x VGA port

Chassis

    Enclosure:

    Height: 14" (355.6mm)

    Width: 17.2" (437mm)

    Depth: 33.2" (843.28mm)

Supermicro GPU SuperServer 821GE-TNHR - Documentation

Supermicro GPU SuperServer 821GE-TNHR Data Sheet Supermicro GPU SuperServer 821GE-TNHR User Manual
