Supermicro GPU SuperServer A21GE-NBRT

Powered by dual 4th or 5th generation Intel Xeon Scalable processors, the Supermicro GPU SuperServer A21GE-NBRT offers up to 64 cores, 128 threads, and a 350W TDP per CPU. Up to 32x DDR5 memory module slots are available on this server. The maximum memory for 2DPC is 8TB running at speeds of up to 4400MT/s with DDR5 RDIMMs, while 1DPC supports 4TB running at optimal speeds of 5600MT/s with the same memory modules. This system is a 10U platform featuring the NVIDIA SXM form-factor HGX B200, capable of accommodating up to 8x 1000W TDP Blackwell GPUs with 2x CPUs installed. It can be integrated into the SRS-48UAC-10U4N-A1, a scalable unit that supports up to 32x GPUs with up to 4x systems installed.
Supermicro GPU SuperServer A21GE-NBRT front view
Intel Partner Gold AMD Executive Elite System Builder NVIDIA Elite Partner

Supermicro GPU SuperServer A21GE-NBRT - System Overview

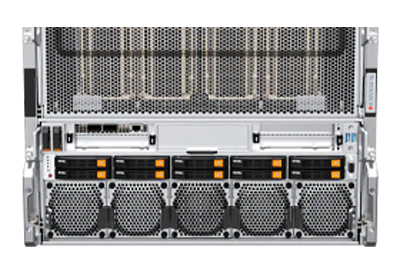

Supermicro GPU SuperServer A21GE-NBRT front

The Supermicro A21GE-NBRT server is designed for healthcare applications, finance and economics, industrial automation, and more. On the rear of the chassis, users will find 8x PCIe 5.0 x16 LP slots and 2x PCIe 5.0 x16 FHHL slots, while 6x 5000W redundant (3+3) Titanium Level PSUs provide power to the system. The front of the server supports 10x hot-swap 2.5" PCIe 5.0 x4 NVMe drive bays, which may require an additional storage controller and/or cable. Additionally, the front panel features 2x easily removeable M.2 PCIe 4.0 x4 NVMe drive caddies. For connectivity, the A21GE-NBRT boasts a PCIe 5.0 x16 CPU-to-GPU interconnect, and includes NVIDIA NVLink with NVSwitch for GPU-to-GPU connectivity. It also delivers 8x single-port NVIDIA ConnectX-7 NICs or NVIDIA BlueField-3 SuperNICs to maximize throughput and network connectivity.

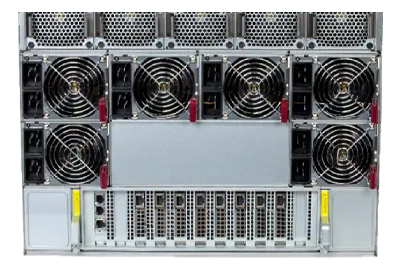

Supermicro GPU A21GE-NBRT rear

To manage the system, administrators can use Super Diagnostics Offline (SDO), Supermicro ThinAgent Service (TAS), and SuperServer Automation Assistant (SAA). SAA allows for configuration and updates of a single node or an entire datacenter, both remotely and locally.

Supermicro GPU SuperServer A21GE-NBRT - Specifications

Processor - 2 Sockets

  • Intel Xeon Scalable 5th Gen
  • Intel Xeon Scalable 4th Gen
  • Dual Socket BR (LGA-4677)
  • Up to 64C/128T; Up to 320MB Cache per CPU
  • Supports up to 350W TDP CPUs (Air Cooled)

Motherboard

  • Super X13DEG-D-P

Memory

    Memory Slots:

  • 32x DIMM slots/2 Channels

    • Max Memory (1DPC)

  • Up to 4TB 5600MT/s ECC DDR5 RDIMM

    • Max Memory (2DPC)

  • Up to 8TB 4400MT/s ECC DDR5 RDIMM

Drive Bays

    Default: Total 10 bays

  • 10x front hot-swap 2.5" PCIe 5.0 x4 NVMe drive bays

    • M.2:

  • 2x M.2 PCIe 3.0 x4 NVMe slots (M-key 2280/22110; VROC required for RAID)

Expansion Slots

    Default:

  • 8x PCIe 5.0 x16 LP slots
  • 2x PCIe 5.0 x16 FHHL slots

On-Board Devices

    Chipset:

  • System on Chip

    • Network Connectivity:

  • 2x RJ45 10GbE

System Cooling

  • 15 heavy duty hot-swappable 80mm Fan(s)
  • 4 heavy duty internal 60mm Fan(s)

Power Supply

  • 6x 5250W Redundant (3 + 3) Hot-plug power supplies

Chassis

    Enclosure: 10U

    Height: 17.2" (438.8 mm)

    Width: 17.6" (449 mm)

    Depth: 33.2" (843.28 mm)

    Gross Weight: 341 lbs (155 kg)

    Net Weight: 293 lbs (133 kg)

Supermicro GPU SuperServer A21GE-NBRT - Documentation

Supermicro GPU SuperServer A21GE-NBRT Data Sheet Supermicro GPU SuperServer A21GE-NBRT Brochure
