Supermicro GrandTwin A+ Server 2115GT-HNTR

Designed for High-Performance Computing applications, Cloud Gaming, and Mission Critical Web Applications, the Supermicro GrandTwin A+ Server 2115GT-HNTR houses 4x compute nodes. Each single-socket server node supports an AMD EPYC 9004 Series processor with 12x DDR5 DIMM slots on the system board. Fully configured, nodes have a maximum memory capacity of 3TB. On the front of each node, there are 6x 2.5-inch hot-swappable NVMe/SATA drive bays. The Supermicro 2115GT-HNTR Server is powered by 2x 2200W 80 PLUS Titanium Level power supplies.
Configure

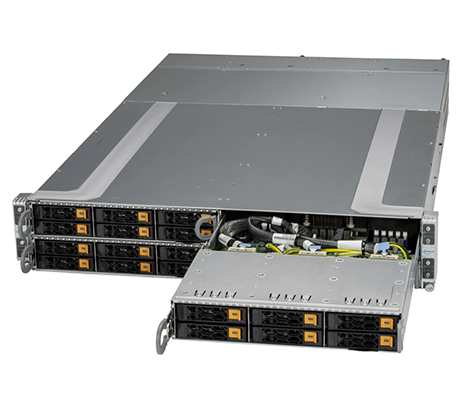

Supermicro 2115GT-HNTR side view
Intel Partner Gold AMD Executive Elite System Builder NVIDIA Elite Partner
Configure

Supermicro GrandTwin A+ Server 2115GT-HNTR - System Overview

Performance

Supermicro GrandTwin 2115GT-HNTR front detail

Memory

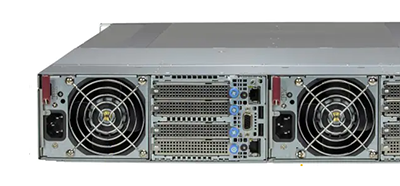

Supermicro 2115GT-HNTR detail rear

Storage

Expansion

Supermicro GrandTwin 2115GT-HNTR detail top

Summary

Supermicro GrandTwin A+ Server 2115GT-HNTR - Specifications

Processor - 1 Socket (Per node)

  • 4th Generation AMD EPYC 9004 Series Processor

    • Socket:

  • 1 x Socket SP5

Motherboard

  • Super H13SST-G

Memory (Per node)

    Memory Slots

  • 12 x DDR5 DIMM slots

    • Memory Type

  • RDIMM
  • 3DS RDIMM

    • Memory Speed

  • Up to 4800MHz

    • DIMM Module Sizes

  • RDIMM: Up to 128GB
  • 3DS RDIMM: Up to 256GB

Drive Bays (Per node)

  • 6 x 2.5" hot-swap NVMe/SATA drive bays (6x 2.5" NVMe hybrid)
  • 2 x M.2 NVMe or SATA3 (2280 form factor)

Input / Output (Per node)

    LAN:

  • 1 x RJ45 Dedicated BMC LAN port

    • USB:

  • 2 x USB 3.0 port(s) (2 USB)

    • Video:

  • 1 x VGA port

Chassis

    Enclosure:

    Height: 3.46" (88mm)

    Width: 17.67" (449mm)

    Depth: 28" (711.2mm)

Power Supply

  • 2 x 2200W 80 PLUS Titanium Redundant power supply

System Cooling

    Air Shroud:

  • 1 per node Air Shroud

    • Fans:

  • 2 x 17.6K RPM Heavy Duty 8cm Fan

System Management

  • SuperCloud Composer
  • Supermicro Server Manager (SSM)
  • Supermicro Update Manager (SUM)
  • Supermicro Power Manager (SPM)
  • SuperDoctor 5 (SD5)
  • Supermicro Thin-Agent Service (TAS)
  • Supermicro Diagnostics Offline (SDO)
  • Supermicro IPMI Utilities
  • Supermicro Intelligent Mgmt (BMC Resources)
  • Supermicro Server Mgmt (Redfish API)

Supermicro GrandTwin A+ Server 2115GT-HNTR - Documentation

Supermicro GrandTwin A+ Server 2115GT-HNTR Data Sheet Supermicro GrandTwin A+ Server 2115GT-HNTR User's Manual
