Supermicro GrandTwin SuperServer 211GT-HNC8F

The 4-node Supermicro GrandTwin SuperServer 211GT-HNC8F features a single socket for a 5th or 4th generation Intel Xeon Scalable processor. The system also supports Intel Xeon CPU Max Series CPUs with support for high bandwidth memory. The Intel Xeon Scalable CPUs offer up to 64 cores and 128 threads, and are limited to a TDP of up to 350W when air cooled. Each node can deliver up to 4TB of memory when all 16x DIMM slots are filled with 256GB DDR5 RDIMMs running at speeds of up to 5600 MT/s.
Configure

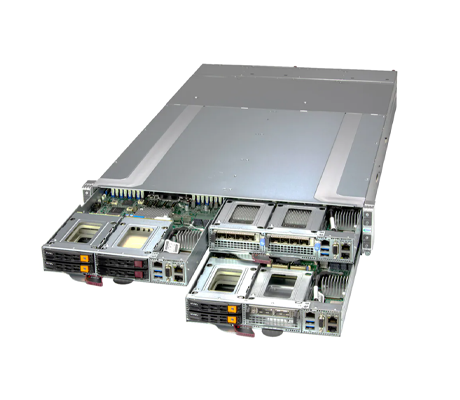

Supermicro GrandTwin SuperServer 211GT-HNC8F front view
Intel Partner Gold AMD Executive Elite System Builder NVIDIA Elite Partner
Configure

Supermicro GrandTwin SuperServer 211GT-HNC8F - System Overview

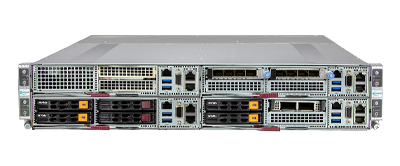

Supermicro GrandTwin SuperServer 211GT-HNC8F front

Each node on the Supermicro GrandTwin 211GT-HNC8F supports 4x front hot-swap 2.5" NVMe/SAS/SATA drive bays along with a front I/O panel. Similarly, each server board holds 2x M.2 NVMe Gen4 or SATA slots, an optional AIOM module, and 1x PCIe 5.0 x16 low-profile slot. The rear I/O also includes a 2200W redundant Titanium Level (96%) power supply.

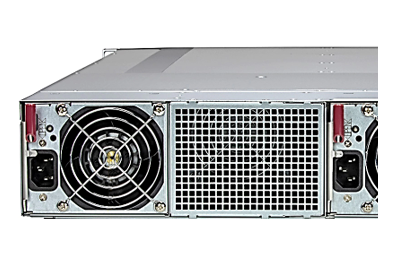

Supermicro GrandTwin SuperServer 211GT-HNC8F rear

To manage the Supermicro 211GT-HNC8F, administrators can deploy Supermicro software tools such as SuperCloud Composer, SuperServer Manager, SuperServer Automation Assistant, and SuperDoctor 5 (SD5). SD5 can monitor and control CPU temperature, voltage levels, fan speed, and power consumption. If something goes wrong, users can receive notifications by email or Simple Network Management Protocol (SNMP).

Supermicro GrandTwin SuperServer 211GT-HNC8F - Specifications

Processor - 1 Socket (per node)

  • 5th Gen Intel Xeon Scalable
  • 4th Gen Intel Xeon Scalable
  • Supports Intel Xeon CPU Max Series with high bandwidth memory (HBM)
  • Up to 64C/128T; Up to 320MB Cache per CPU
  • Supports up to 350W TDP CPUs (Air Cooled)

    • Socket:

  • Single Socket E (LGA 4677)

Motherboard

  • Super X13SET-GC

Memory (per node)

    Memory Slots:

  • 16x DIMM slots/2 Channels

    • Memory Capacity:

  • Max Memory (2DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM

Drive Bays (per node)

    Default: Total 4 bays

  • 4x front hot-swap 2.5" NVMe/SAS/SATA drive bays

    • M.2:

  • 2x M.2 NVMe/SATA slots (M-key)

Expansion Slots (per node)

  • 1x PCIe 5.0 x16 LP slot

On-Board Devices (per node)

    SAS:

  • SAS (12Gbps) via Broadcom 3808; (IT mode)

    • Chipset:

  • Intel C741

    • Network Connectivity:

  • Via IO Module

Fans

  • 2x 16K RPM Heavy Duty 8cm Fan(s)

Power Supply

  • 1x 2200W Redundant Titanium Level (96%) power supply

Chassis

    Enclosure: 2U

    Height: 3.46" (88 mm)

    Width: 17.67" (449 mm)

    Depth: 28" (711.2 mm)

    Gross Weight: 88 lbs (39.9 kg)

    Net Weight: 68 lbs (30.8 kg)

Supermicro GrandTwin SuperServer 211GT-HNC8F - Documentation

Supermicro GrandTwin SuperServer 211GT-HNC8F Data Sheet Supermicro GrandTwin SuperServer 211GT-HNC8F User Manual Supermicro GrandTwin SuperServer 211GT-HNC8F Quick Reference Guide
