Supermicro GrandTwin SuperServer 211GT-HNTF

The Supermicro GrandTwin SuperServer 211GT-HNTF has 4x hot-pluggable compute nodes and is intended for High-Performance Computing, Cloud Gaming, and Mission Critical Web Applications. Each compute node supports a single socket with a 4th or 5th Gen Intel Xeon Scalable CPU, which includes Intel’s Xeon CPU Max Series with high bandwidth memory and a maximum TDP of up to 350W. Each node can also be outfitted with 2x optional storage modules each with 2x 2.5-inch NVMe or SATA bays, for 4x bays total. In addition to these bays, the server supports 2x M.2 NVMe or 2x M.2 SATA3 slots to boot the operating system.
Configure

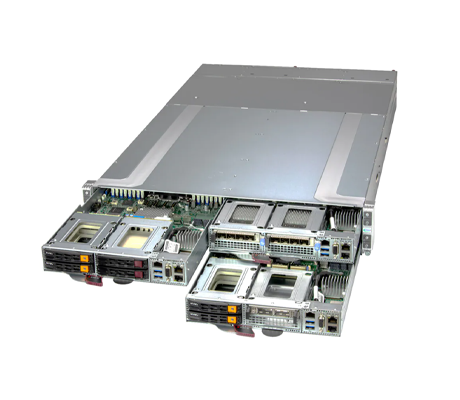

Supermicro GrandTwin SuperServer 211GT-HNTF side view
Intel Partner Gold AMD Executive Elite System Builder NVIDIA Elite Partner
Configure

Supermicro GrandTwin SuperServer 211GT-HNTF - System Overview

Supermicro GrandTwin SuperServer 211GT-HNTF front of system

Each node in the GrandTwin 211GT-HNTF server supports 16x DDR5 DIMMs for up to 4TB of memory and an optional Advanced I/O Module (AIOM) or PCIe 5.0 x16 slot. In addition, each node features an integrated GrandTwin I/O module with baseboard management controller (BMC) and 2x 10GbE or 2x 25GbE ports. The system can be managed using Supermicro’s SuperDoctor 5, plus Supermicro’s Update Manager, Power Manager, and Server Manager. Redfish API is also supported. Powering the system are dual 2200W redundant Titanium level power supplies. Supermicro GrandTwin SuperServer 211GT-HNTF rear of system

Supermicro GrandTwin SuperServer 211GT-HNTF - Specifications

Processor - 1 Socket

  • Single Socket E (LGA 4677)
  • 5th Gen Intel® Xeon® Scalable processors
  • 4th Gen Intel® Xeon® Scalable processors
  • Supports Intel Xeon CPU Max Series with high bandwidth memory (HBM)​
  • Up to 64C/128T; Up to 320MB Cache per CPU
  • Supports up to 350W TDP CPUs (Air Cooled)

Memory

    Maximum Memory:

  • Up to 4TB: 16x 256 GB DRAM

    • Memory Slots:

  • 16x DIMM slots

    • Memory Type:

  • 5600MHz ECC DDR5 RDIMM

Drive Bays

    Hot-swap:

  • 4x 2.5" hot-swap NVMe/SATA drive bays (4x 2.5" NVMe dedicated)

    • M.2:

  • 2x M.2 NVMe OR 2x M.2 SATA3

Expansion Slots

  • 1x PCIe 5.0 x16 slot(s)

Power Supply

  • 2200W Redundant Titanium Level power supplies

On-Board Devices

    Chipset:

  • Intel® C741

    • Network Connectivity:

  • Via IO Module

    • IPMI:

  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Input/Output

    LAN:

  • 1x RJ45 Dedicated BMC LAN port

    • USB:

  • 2x USB 3.0 port(s) (2 USB)

    • Video:

  • 1x VGA port(s)

System BIOS

  • AMI 32MB Flash ROM

Management

  • IPMI 2.0
  • KVM with dedicated LAN
  • Super Diagnostics Offline
  • SuperDoctor® 5
  • Supermicro Update Manager (SUM)
  • Supermicro Power Manager (SPM)
  • Supermicro Server Manager (SSM)
  • Redfish API

Front Panel

    Buttons:

  • Power On/Off button
  • UID button

    • LEDs:

  • HDD activity LED
  • Network activity LEDs
  • Power status LED
  • Universal Information (UID) LED

Chassis

    Form Factor

  • 2U Rackmount

    • Dimensions (D x W x H)

  • 28" (711.2mm) x 17.67" (449mm) x 3.46" (88mm)

    • Weight

  • Gross Weight: 88 lbs (39.9 kg)
  • Net Weight: 68 lbs (30.8 kg)

Supermicro GrandTwin SuperServer 211GT-HNTF - Documentation

Supermicro GrandTwin SuperServer 211GT-HNTF Data Sheet Supermicro GrandTwin SuperServer 211GT-HNTF User Manual
