Supermicro GrandTwin SuperServer 212GT-HNR

The 2U Supermicro GrandTwin SuperServer 212GT-HNR supports 4x nodes, each with 6x hot-swap 2.5-inch PCIe 5.0 x4 NVMe drive bays. Each single socket system features an Intel Xeon 6 6700 series processor with P-cores or E-cores or the Intel Xeon 6500 series with P-cores. CPUs with a maximum TDP of 330W when air cooled are supported. 16x DDR5 RDIMM slots in each node provide up to 4TB of RAM running at up to 6400MT/s with 2x DIMMs Per Channel (2DPC).
Configure

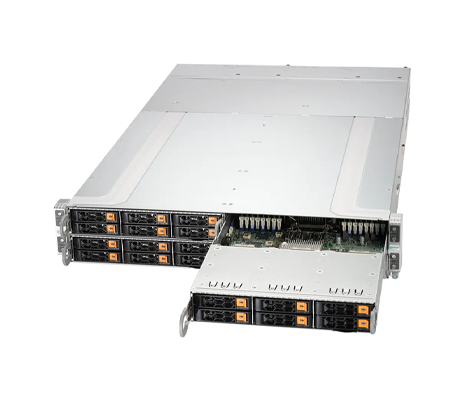

Supermicro GrandTwin SuperServer 212GT-HNR side view
Intel Partner Gold AMD Executive Elite System Builder NVIDIA Elite Partner
Configure

Supermicro GrandTwin SuperServer 212GT-HNR - System Overview

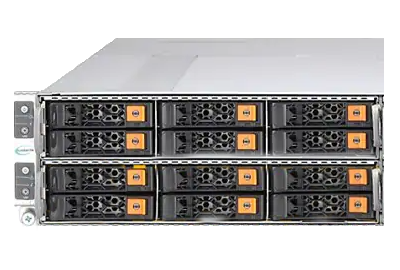

Supermicro GrandTwin SuperServer 212GT-HNR front

Ideal for scale-out object storage, cloud computing, mission critical web applications, and more, the GrandTwin SuperServer 212GT-HNR is powered by 2x 2200W/3000W Redundant (1 + 1) Titanium Level (96%) power supply units. There are 2x PCIe 5.0 x16 AIOM slots per node that are compatible with OCP 3.0. Similarly, dual M.2 PCIe 5.0 x4 NVMe slots compatible with 2280 form factor cards can be found in each system but a VROC card is required for RAID.

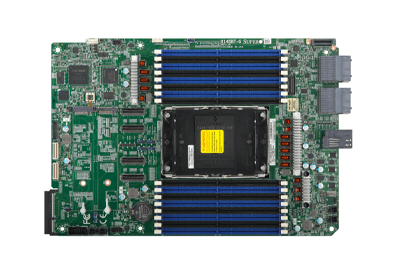

Supermicro GrandTwin SuperServer 212GT-HNR motherboard

Administrators will find 1x RJ45 1GbE dedicated BMC LAN port, 1x VGA port, and 2x USB 3.0 ports on the back of each I/O panel. For managing the system, Supermicro offers software such as SuperCloud Composer, Super Diagnostics Offline (SDO), Supermicro Server Manager (SSM), Supermicro Think-Agent Service (TAS), and SuperServer Automation Assistant (SAA).

Available Configurations

Explore available configurations for the Supermicro GrandTwin SuperServer 212GT-HNR. Each configuration includes a specific combination of components and options to meet different performance, cooling, storage, and deployment requirements.

Supermicro GrandTwin SuperServer 212GT-HNR - Specifications

Processor - 1 Socket (per node)

  • Intel Xeon 6 6700/6500 series processors with P-cores
  • Intel Xeon 6 6700 series processors with E-cores

  • P-cores: Up to 86C/172T; Up to 336MB Cache
  • E-cores: Up to 144C/144T; Up to 108MB Cache
  • Supports up to 330W TDP CPUs (Air Cooled)

    • Socket:

  • Single Socket E2 (LGA-4710)

Motherboard

  • Super X14SBT-G

Memory (per node)

    Memory Slots:

  • 16 x DDR5 DIMM slots/2 channels

    • Memory Capacity:

  • Max Memory (2DPC): Up to 4TB 6400MT/s ECC DDR5 RDIMM

Drive Bays (per node)

    Default: Total 6 bays

  • 6x front hot-swap 2.5" PCIe 5.0 x4 NVMe drive bay(s)

    • M.2:

  • 2 M.2 PCIe 5.0 x4 NVMe slot(s) (M-key 22110(default)/2280; VROC required for RAID)

Expansion Slots (per node)

    Default

  • 2 PCIe 5.0 x16 (in x16) AIOM slot(s) (OCP 3.0 compatible)

On-Board Devices (per node)

    Chipset:

  • System on Chip

    • Network Connectivity:

  • Via IO Module

Input/Output (per node)

    LAN:

  • 1x RJ45 1 GbE Dedicated BMC LAN ports

    • USB:

  • 2x USB 3.0 ports

    • Video:

  • 1x VGA port

Fans

  • 2x 16K RPM Heavy Duty 8cm Fan(s)

Power Supply

  • 2x 2200W Redundant (1 + 1) Titanium Level (96%) power supplies

Chassis

    Enclosure:

    Height: 3.46" (88mm)

    Width: 17.67" (449mm)

    Depth: 28" (711.2mm)

    Gross Weight: 88 lbs (39.9 kg)

    Net Weight: 68 lbs (30.8 kg)
