Supermicro Hyper A+ 1115HS-TNR

With up to 6TB of 4000MT/s ECC DDR5 memory across 24x memory module slots, the Supermicro Hyper A+ 1115HS-TNR is an ideal choice for cloud computing, virtualization, AI inference and machine learning, and software-defined storage. At its core, this 1U server is powered by a single AMD EPYC 9004 Series processor featuring up to 128 cores and 256 threads, and a maximum TDP of 360W. Additionally, it supports 1x double-width NVIDIA PCIe H100 GPU, connected via a PCIe 5.0 x16 interconnect for CPU-to-GPU performance.

Overview

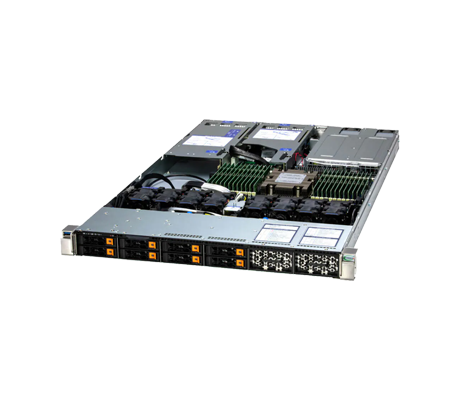

Supermicro Hyper A+ 1115HS-TNR - System Overview

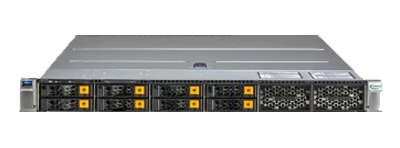

The front of the Hyper A+ 1115HS-TNR features 8x to 12x hot-swappable 2.5” NVMe/SAS/SATA drive bays, which may require additional storage controllers or cables. The motherboard also includes 1x M.2 PCIe 3.0 x4 NVMe slot and 1x M.2 PCIe 3.0 x2 NVMe slot, both compatible with 2280 and 22110 form factors. For expansion, the rear of the server provides access to 2x PCIe 5.0 x16 FH (10.5"L) slots, 1x PCIe 5.0 x16 FH (6.6"L) slot, and 1x PCIe 5.0 x16 AIOM slot that supports an OCP 3.0 mezzanine card for additional network connectivity. The system is powered by dual 1200W redundant Titanium-level power supplies.

A range of management software utilities for monitoring and control, include Supermicro SuperDoctor 5 (SD5), Supermicro Server Manager (SSM), and SuperServer Automation Assistant (SAA), among others. The SuperServer Automation Assistant (SAA) is a command-line interface (CLI) tool that enables users to locally or remotely update individual nodes or an entire datacenter.

*This server is only available as a completely-assembled system with 1x CPU, a minimum of 2x DIMMs, 1x AIOM/AOC NIC, and 1x storage device.

Specifications

Supermicro Hyper A+ 1115HS-TNR - Specifications

Processor - 1 Socket

AMD EPYC 9004 series CPUs
Up to 128C/256T
Supports up to 360W TDP CPUs (Air Cooled)*

Socket:

Single Socket SP5

Motherboard

Super X13SSH

GPU

Up to 1x double-width GPUs

Supported GPU:

NVIDIA PCIe: H100

CPU-GPU Interconnect:

PCIe 5.0 x16 CPU-to-GPU Interconnect

GPU-GPU Interconnect:

PCIe

Memory

24x DDR5 DIMM slots

Memory Capacity:

Max Memory (1DPC): Up to 3TB ECC DDR5 RDIMM
Max Memory (2DPC): Up to 6TB ECC DDR5 RDIMM

Memory Speed:

Max Memory (1DPC): 4800MT/s
Max Memory (2DPC): 4000MT/s

Drive Bays

8x front hot-swap 2.5" NVMe*/SAS*/SATA* drive bays

Option A: Total 12 bays

12x front hot-swap 2.5" NVMe*/SAS*/SATA* drive bays

M.2:

1x M.2 PCIe 3.0 x4 NVMe slot (M-key 22110(default)/2280)
1x M.2 PCIe 3.0 x2 NVMe slot (M-key 22110(default)/2280)

Expansion Slots

Default

1x PCIe 5.0 x16 FHHL slot
2x PCIe 5.0 x16 FH/10.5"L slots
1x PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)

On-Board Devices

Chipset:

System on Chip

Network Connectivity:

Via AIOM

Input/Output

LAN:

1x RJ45 1 GbE Dedicated BMC LAN port(s)

USB:

2x USB 3.0 port(s) (rear)
1x USB 3.0 port(s) (front)

Video:

1x VGA port(s)

System BIOS

BIOS Type:

AMI 32MB SPI Flash EEPROM

Fans

8x counter-rotating 40x40x56mm Fan(s)

Power Supply

2x 1200W Redundant Titanium Level (96%) power supplies

Chassis

Height: 1.7" (43 mm)

Width: 17.2" (436.88mm)

Depth: 29.4" (747 mm)

Gross Weight: 51 lbs (23.1 kg)

Net Weight: 32 lbs (14.5 kg)

Documentation

Supermicro Hyper A+ 1115HS-TNR - Documentation

Supermicro Hyper A+ 1115HS-TNR Data Sheet Supermicro Hyper A+ 1115HS-TNR User Manual Supermicro Hyper A+ 1115HS-TNR Quick Reference Guide
