Supermicro Hyper SuperServer 112H-TN

The single-socket Supermicro Hyper SuperServer 112H-TN is powered by an Intel Xeon 6 6700 series processor with E-cores (Efficient Cores) or 6700/6500 series processors with P-cores (Performance Cores). The E-core variant provides up to 144 cores and 144 threads with a maximum cache of 108MB. P-cores support 86 cores and 172 threads. The thermal design point (TDP) ranges from 205W to 330W when air cooled. With an 8-channel memory architecture, the platform supports up to 4TB of memory when all 16x DIMMs are populated with 256GB RDIMM memory modules. Depending on the type of CPU and memory modules installed, memory speeds of up to 8000MT/s can be reached.

Overview

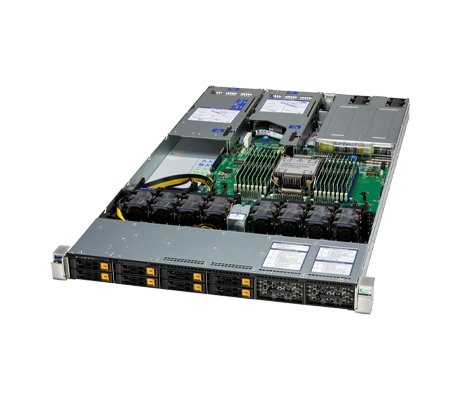

Supermicro Hyper SuperServer 112H-TN - System Overview

Summary

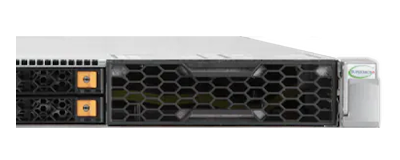

Supermicro’s Hyper SuperServer 112H-TN is designed for scale out all-flash NVMe storage, AI inference, virtualization and financial applications, among others. Up to 12x hot-swap 2.5” hybrid drive bays with NVMe, SAS, or SATA configurations can line the front of the system, but they may require additional storage controller or cables. 2x M.2 PCIe 5.0 x2 NVME expansion slots that can accommodate 2280, 22110, and 25110 card form factors. An Intel VROC RAID key is required to achieve RAID 0/1/5/10 support. For more RAID options, a storage controller PCIe card can be installed in one of the PCIe slots and is required for SAS implementations.

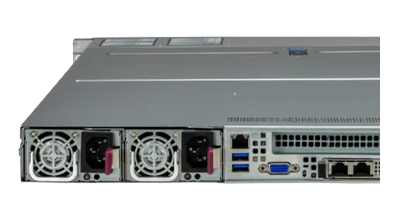

With a PCIe 5.0 x16 CPU-to-GPU link, the 1U platform can house up to 1x double-width or 3x single-width GPUs. The back of the chassis provides access to one PCIe 5.0 x16 AIOM slot that supports OCP 3.0. Supermicro offers 2x 1200W, 1300W, or 1600W redundant (1+1) Titanium level (96%) power supplies. Administrators have the option to install Supermicro Server Manager (SSM), SuperCloud Composer, Super Diagnostics Offline (SDO), and SuperServer Automation Assistant (SAA) to configure and oversee the system remotely.

Specifications

Supermicro Hyper SuperServer 112H-TN - Specifications

Processor - 1 Socket

Intel Xeon 6 6700/6500 series with P-cores
Intel Xeon 6 6700 series with E-cores

P-cores: Up to 86C/172T; Up to 336MB Cache
E-cores: Up to 144C/144T; Up to 108MB Cache
Supports up to 330W TDP CPUs (Air Cooled)

Socket:

Single Socket E2 (LGA-4710)

Motherboard

Super X14SBH

GPU

Up to 1x double-width or 3x single-width GPUs

Supported GPU:

NVIDIA PCIe: L40S, L4
Intel PCIe: Intel Data Center GPU Flex 170

CPU-GPU Interconnect:

PCIe 5.0 x16 CPU-to-GPU Interconnect

Memory

16 x DDR5 DIMM slots

Memory Capacity:

(1DPC): Up to 2TB 6400MT/s ECC DDR5 RDIMM
(1DPC): Up to 512GB 8000MT/s ECC DDR5 MRDIMM
(2DPC): Up to 4TB 5200MT/s ECC DDR5 RDIMM

Drive Bays

8x front hot-swap 2.5" NVMe*/SAS*/SATA* drive bay(s)

Option A: Total 12 bay(s)

8x front hot-swap 2.5" NVMe*/SAS*/SATA* drive bay(s)
4x front hot-swap 2.5" SAS*/SATA* drive bay(s)

M.2:

2 x M.2 NVMe slots (M-key 2280/22110/25110; VROC required for RAID)

Expansion Slots

1x PCIe 5.0 x16 FHHL slot(s)
1x PCIe 5.0 x16 FHFL double-width slot(s)
1x PCIe 5.0 x16 AIOM slot(s) (OCP 3.0 compatible)

On-Board Devices

Chipset:

System on Chip

NVMe:

NVMe; RAID 0/1/5/10 support(Intel® VROC RAID key required

Network Connectivity:

Via AIOM

Input/Output

LAN:

1x RJ45 1 GbE Dedicated BMC LAN port(s)

USB:

2x USB 3.0 port(s) (rear)
1x USB 3.0 port(s) (front)

Video:

1x VGA port

System BIOS

LAN:

AMI 64MB SPI Flash

Power Supply

2x 1200W Redundant (1 + 1) Titanium Level (96%) power supplies
2x 1300W Redundant (1 + 1) Gold (Certification Pending) Level power supplies
2x 1600W Redundant (1 + 1) Titanium Level (96%) power supplies

Chassis

Height: 1.7" (43mm)

Width: 17.2" (437mm)

Depth: 30.66" (778.7mm)

Weight:

Gross Weight: 41.4 lbs (18.8 kg)
Net Weight: 19.2 lbs (8.7 kg)

Documentation

Supermicro Hyper SuperServer 112H-TN - Documentation

Supermicro Hyper SuperServer 112H-TN Data Sheet Supermicro Hyper SuperServer 112H-TN User Manual Supermicro Hyper SuperServer 112H-TN Quick Reference Guide
