Supermicro Hyper SuperServer 120H-TNR

With support for up to 12TB of memory when using Intel Optane Persistent memory 200-series modules and standard DRAM in 32x DIMM slots, the Supermicro Hyper SuperServer 120H-TNR is designed for AI inference, cloud computing, and virtualization. This platform supports dual 3rd generation Intel Xeon Scalable processors with up to 40 cores, 80 threads, and a maximum TDP of up to 270W. It features 8x 2.5” hot-swap NVMe, SATA, or SAS drive bays up front with the option to install 4x more drive bays for a total of 12x.

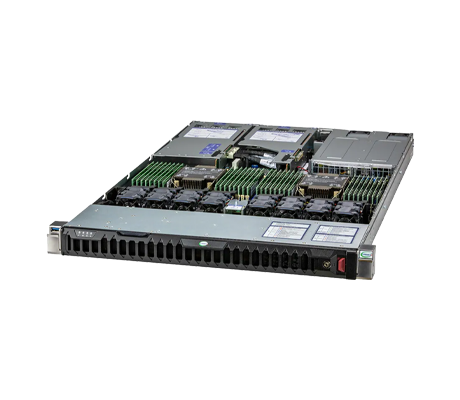

Supermicro Hyper SuperServer 120H-TNR - System Overview

The 1U Supermicro 120H-TNR supports up to 1x double slot GPU or 3x single slot GPUs and is powered by dual 1200W Titanium level power supplies. For networking expansion options, there is 1x PCIe 4.0 x16 full-height, 6.6” slot, and 2x PCIe 4.0 x16 full-height, 10.5” slots. 2x internal slots are dedicated for M.2 NVMe or SATA3 2280 or 22110 cards. A VROC RAID key is required for NVMe support. Software such as Redfish API, SuperDoctor 5, and IPMI 2.0 can be used to manage the system both at-chassis or remotely.

Supermicro Hyper SuperServer 120H-TNR - Specifications

Processor - 2 Sockets

Dual Socket P+ (LGA-4189)
3rd Gen Intel Xeon Scalable Processors
Up to 40C/80T; Up to 60MB Cache per CPU
Supports up to 270W TDP (air cooled)

GPU

Up to 1x double slot GPU or 3x single slot GPU

Memory

Up to 8TB: 32x 256 GB DRAM
Up to 12TB: 16x 512 GB PMem and 16x 256 GB DRAM

Memory Slots:

32 x DIMM slots
Intel Optane persistent memory 200 series

Memory Type:

3200MHz ECC DDR4

Drive Bays

Hot-swap:

8x 2.5" hot-swap NVMe/SATA/SAS drive bays (8x 2.5" NVMe hybrid)
Configurable option for 12x 2.5" hot-swap NVMe/SAS/SATA drive bays. NVMe, SATA, or SAS support requires additional parts

M.2:

2x M.2 NVMe OR 2x M.2 SATA3
M-Key, 2280 and 22110

On-board Devices

SATA:

SATA3 (6Gbps); RAID 0/1/5/10 support

NVMe:

RAID 0/1/5/10 support (Intel® VROC RAID key required)

Chipset:

Intel C621A

Network Connectivity:

2x 1GbE BaseT with Intel® i350-AM2 (optional)
4x 1GbE BaseT or 4x 1GbE SFP with Intel® i350-AM4 (optional)
2x 10GbE BaseT with Intel® X550-AT2 (optional)
2x 10GbE SFP+ with Intel® X710-BM2 (optional)
4x 10GbE SFP+ with Intel® XL710-BM1 (optional)
4x 10GbE RJ45/SFP+ with Intel® X710-TM4 (optional)
2x 25GbE SFP28 with Broadcom® BCM57414 (optional)
4x 25GbE RJ45/SFP28 with Mellanox® CX-4 Lx EN Intel® X550-AT2 (optional)
2x 100GbE QSFP28 with Broadcom® BCM57508 (optional)

IPMI:

Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Input/Output

LAN:

1x RJ45 Dedicated BMC LAN port

Video:

1x VGA Port

USB:

3x USB 3.0 port(s) (1x front; 2x rear)

Management

Super Diagnostics Offline
IPMI 2.0, KVM with dedicated LAN
Supermicro Update Manager (SUM)
Supermicro Server Manager (SSM)
SuperDoctor® 5
Redfish API

Front Panel

Power On/Off button
UID button

LEDs:

HDD Activity LED
LAN1 Activity LED
Power Status LED
System Information LED

Expansion Slots

1x PCIe 4.0 x16 FH, 6.6"L slot(s)
2x PCIe 4.0 x16 FH, 10.5"L slot(s)

Power Supply

2x 1200W Redundant Titanium Level power supplies

Chassis

1U Rackmount

Dimensions (D x W x H)

29.4" (747mm) x 17.2" (437mm) x 1.7" (43mm)

Weight

Gross Weight: 49 lbs (22.2 kg)
Net Weight: 34 lbs (15.4 kg)
