Supermicro Hyper SuperServer 121H-TNR

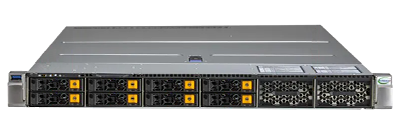

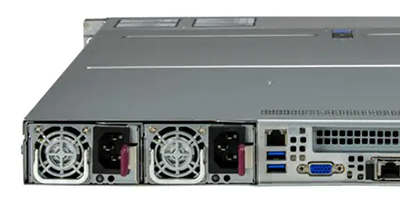

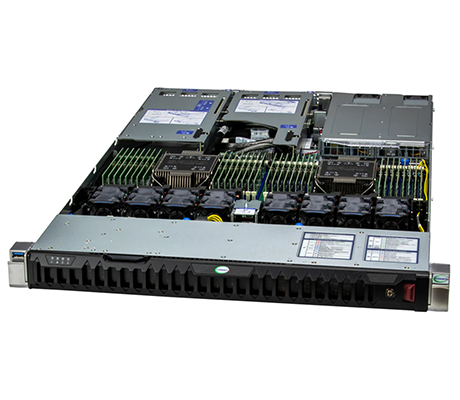

The Supermicro Hyper SuperServer 121H-TNR is a 1U rackmount system that supports 2x 4th or 5th Generation Intel Xeon Scalable processors. 32x DDR5 DIMM slots on the system board can house up to 8TB of DDR5 memory. On the front of the system, 8x 2.5-inch hot-swap NVMe/SATA/SAS drive bays are available with an option to install 4x more. The Supermicro 121H-TNR server has dual PCIe 5.0 x16 full-height, full-length slots and a single PCIe 5.0 full-height, half-length slot and slots for 2x M.2 NVMe drives. A Baseboard Management Controller (BMC) LAN port and an AIOM/OCP 3.0 NIC slot are available on the rear of the server.

Overview

Supermicro Hyper SuperServer 121H-TNR - System Overview

Summary

It’s designed for Virtualization, Cloud Computing, AI Inference and Machine Learning, plus Enterprise Server applications. Dual 1200W Titanium level power supplies provide a redundant power configuration for the Supermicro Hyper 121H-TNR Server.

NOTE: This platform is only sold as a complete system with at least 2 CPU, 4 DIMMs, 1 NIC adapter, & 1 HDD/SSD.

Available Configurations

Explore available configurations for the Supermicro Hyper SuperServer 121H-TNR. Each configuration includes a specific combination of components and options to meet different performance, cooling, storage, and deployment requirements.

Specifications

Supermicro Hyper SuperServer 121H-TNR - Specifications

Processor - 2 Sockets

5th Generation Intel Xeon Scalable Processor
4th Generation Intel Xeon Scalable Processor
Supports Intel Xeon CPU Max Series with high bandwidth memory (HBM)
Up to 64C/128T; Up to 320MB Cache per CPU
Supports up to 350W TDP CPUs (Air Cooled)*
Supports up to 350W TDP CPUs (Liquid Cooled)

Socket:

2 x LGA-4677

Motherboard

Super X13DEM

Memory

32 x DDR5 DIMM slots

Memory Capacty:

Up to 8TB: 32x 256GB DRAM

Memory Speed:

Up to 5600MHz

Drive Bays

8 x 2.5" hot-swap NVMe/SATA/SAS drive bays
Configurable option for 12 x 2.5" hot-swap NVMe/SAS/SATA drive bays

M.2:

2 x M.2 NVMe or 2 x M.2 SATA3

Expansion Slots

1 x PCIe 5.0 x16 Full-Height, 6.6" Length slot
2 x PCIe 5.0 x16 FH, 10.5" Length slots
1 x AIOM / OCP 3.0 PCIe NIC slot

On-Board Devices

Chipset:

Intel C741 chipset

Network Controllers:

2x 1GbE BaseT with Intel i350-AM2 (optional)
4x 1GbE BaseT or 4x 1GbE SFP with Intel i350-AM4 (optional)
2x 10GbE BaseT with Intel X550-AT2 (optional)
2x 10GbE SFP+ with Intel X710-BM2 (optional)
4x 10GbE SFP+ with Intel XL710-BM1 (optional)
4x 10GbE RJ45/SFP+ with Intel X710-TM4 (optional)
2x 25GbE SFP28 with Broadcom BCM57414 (optional)
4x 25GbE RJ45/SFP28 with Mellanox CX-4 Lx EN Intel X550-AT2 (optional)
2x 100GbE QSFP28 with Broadcom BCM57508 (optional)

IPMI:

Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Chassis

Height: 1.7" (43mm)

Width: 17.2" (437mm)

Depth: 29.4" (747mm)
