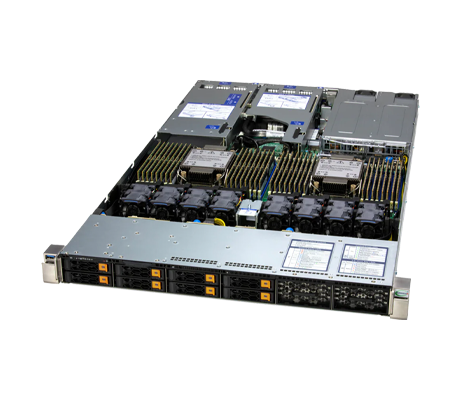

Supermicro Hyper SuperServer 122H-TN - System Overview
Additional Information
Cloud computing, big data analytics, hyperconverged storage, network functionality, virtualization, AI inference and machine learning, and other applications are all well suited for this 1U platform. Administrators can choose from 2x different layouts for the front panel's storage bays. The system offers either 8x or 12x hot-swap 2.5-inch drive bays for NVMe, SAS, SATA configurations. There are 2x M.2 PCIe 5.0 x2 NVME slots available on the motherboard, which support 2280 and 22110 card form factors. With an 8-channel memory architecture the Hyper SuperServer 122H-TN can provide up to 8TB of memory using all 32x DDR5 RDIMM slots, at memory speeds of up to 5200MT/s. MRDIMMs are also compatible, but only with P-cores, and cam support up to 1TB of memory running at speeds of up to 8000MT/s.
There are several ports on the back of the Hyper 122H-TN. 3x PCIe 5.0 x16 slots can support 3x single-width GPUs, or 1x double-width GPU, or an assortment of network cards and storage controllers. The rear also accommodates 1x PCIe 5.0 x16 AIOM slot that is compatible with OCP 3.0. Administrators can select redundant (1+1) Titanium level (96%) power supplies in pairs of 1200W, 1600W, 2000W, or 2600W. Supermicro offers management tools for updating, monitoring, and managing IT assets, including an at-chassis 1x RJ45 1 GbE Dedicated BMC LAN port. To manage the system remotely, businesses can deploy SuperCloud Composer, Supermicro Server Manager (SSM), Super Diagnostics Offline (SDO), and SuperServer Automation Assistant (SAA).
