Supermicro Hyper SuperServer 122HA-TN-LCC

Built for artificial intelligence, virtualization, and data analytics, the Supermicro Hyper SuperServer 122HA-TN-LCC supports a dual socket design. Its X14 motherboard supports up to 2x Intel Xeon 6900 series processors with P-cores delivering up to 128 cores, 256 threads, and a TDP of up to 500W with Direct to Chip (D2C) liquid cooling. The 1U server offers 24x memory module slots accommodating DDR5 RDIMMs and MRDIMMs with up to 6TB and 3TB, respectively. RDIMMs support memory speeds of up to 6400MT/s, meanwhile MRDIMMs can provide speeds of up to 8800MT/s.

Overview

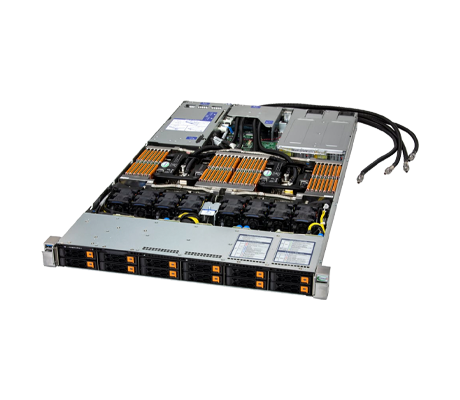

Supermicro Hyper SuperServer 122HA-TN-LCC - System Overview

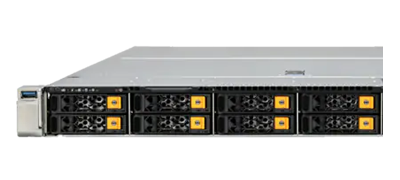

Supermicro Hyper SuperServer 122HA-TN-LCC front detail

The front of the Supermicro 122HA-TN-LCC chassis houses 12x hot-swap 2.5” NVMe drive bays. Additional storage or OS boot are available through 2x M.2 PCIe 5.0 x2 NVMe slots supporting 2280 or 22110 form factor cards. For expansion, the system includes 2x PCIe 5.0 x16 slots (full-height, 10.5" length) and 1x AIOM/OCP 3.0 NIC slot, located just below the liquid cooling tubes at the rear of the SuperServer. This system also offers 3x power supply configurations:

2x 1600W Redundant (1 + 1) Titanium Level (96%) Hot-plug power supplies
2x 2000W Redundant (1 + 1) Titanium Level (96%) Hot-plug power supplies
2x 2600W Redundant (1 + 1) Titanium Level (96%) Hot-plug power supplies

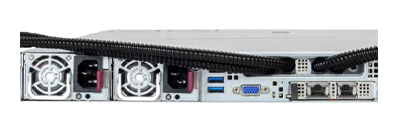

Supermicro Hyper SuperServer 122HA-TN-LCC rear

Administrators can manage and control the Supermicro Hyper 122HA-TN-LCC using a range of tools from Supermicro’s management suite. Options include SuperCloud Composer, Supermicro Server Manager (SSM), and SuperServer Automation Assistant (SAA). Management can be performed either at the chassis or remotely for a single system or across an entire data center.

Specifications

Supermicro Hyper SuperServer 122HA-TN-LCC - Specifications

Processor - 2 Sockets

2x Intel Xeon 6900 series Processors with P-Cores
Up to 128 cores, 256 threads
Supports up to 500W TDP CPUs (Liquid Cooled)
Chipset: System on Chip

Motherboard

Super H14DBM-APL

Memory

Slot Count:

24x DIMMs

Max Memory (1DPC):

Up to 6TB 6400MT/s ECC DDR5 RDIMM

Max Memory (1DPC):

Up to 3TB 8800MT/s ECC DDR5 MRDIMM

Drive Bays

12x front hot-swap 2.5" NVMe drive bays

M.2

2x M.2 PCIe 5.0 x2 NVMe slots (M-key 2280/22110)

Expansion Slots

2x PCIe 5.0 x16 FH/10.5"L slots
1x PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)

On-Board Devices

Chipset:

System On Chip

Network Connectivity:

Via AIOM

NVMe:

NVMe; RAID 0/1/5/10 support(Intel® VROC RAID key required)

System BIOS

AMI 64MB SPI Flash

Input / Output

LAN:

1 x RJ45 1 GbE Dedicated BMC LAN port

USB:

2 x USB 3.0 ports(Rear)
1 x USB 3.0 port(Front)

Video:

1 x VGA port

Management

Software:

SuperCloud Composer
Supermicro Server Manager (SSM)
Super Diagnostics Offline (SDO)
Supermicro Thin-Agent Service (TAS)
SuperServer Automation Assistant (SAA)

Power Configurations:

ACPI Power Management
Power-on mode control for AC power loss recovery

System Cooling

8 Counter-Rotating PWM 40x40x56mm Fan(s)
Direct to Chip (D2C) Cold Plate

Power Supply

2x 1600W Redundant (1 + 1) Titanium Level (96%) Hot-plug power supplies
2x 2000W Redundant (1 + 1) Titanium Level (96%) Hot-plug power supplies
2x 2600W Redundant (1 + 1) Titanium Level (96%) Hot-plug power supplies

Chassis

Height: 1.7" (43 mm)

Width: 17.2" (437 mm)

Depth: 30.66" (778.7 mm)

Gross Weight: 41.4 lbs (18.8 kg)

Net Weight: 19.2 lbs (8.7 kg)

Documentation

Supermicro Hyper SuperServer 122HA-TN-LCC - Documentation

Supermicro Hyper SuperServer 122HA-TN-LCC Data Sheet Supermicro Hyper SuperServer 122HA-TN-LCC User Manual Supermicro Hyper SuperServer 122HA-TN-LCC Quick Reference Guide
