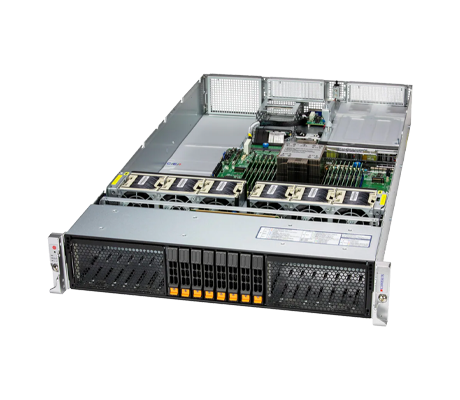

Supermicro Hyper SuperServer 212H-TN

Additional Information

The 2U platform is equipped with up to 4x double-width or 8x single-width GPUs with a PCIe 5.0 x16 CPU-to-GPU interconnect. Two PCIe 5.0 options are available, with 1x PCIe 5.0 x16 FHFL double-width slot and 1x PCIe 5.0 x16 FH/10.5" L double-width slot, or 1x PCIe 5.0 x16 FHFL double-width slot and 2x PCIe 5.0 x8 FH/10.5"L slots. Both options also deploy a single PCIe 5.0 x16 AIOM slot that’s compatible with OCP 3.0. The Hyper SuperServer 122H-TN has an 8-channel memory architecture and 16x DDR5 memory module slots that can sustain memory speeds of up to 8000MT/s with 1DPC MRDIMMs or 5200MT/s with 2DPC.

Administrators have the option to choose 2x 1200W, 1300W, 1600W, or 2600W redundant (1+1) Titanium level (96%) power supplies. A single RJ45 1 GbE dedicated BMC LAN port provides remote access to the system. Supermicro provides several management tools for configuring, tracking, and overseeing IT assets. Businesses can install SuperCloud Composer, Supermicro Server Manager (SSM), Super Diagnostics Offline (SDO), and SuperServer Automation Assistant (SAA) to control the system remotely.

The motherboard has 2x M.2 PCIe 5.0 x2 NVME expansion slots that can accommodate 2280, 22110, and 25110 card form factors. VROC is required for RAID. The storage bays on the front panel have three distinct arrangement options available. The following configurations are supported on the platform:

Default: Total 8 bay(s) 8 front hot-swap 2.5" NVMe*/SAS*/SATA* drive bay(s)

Option A: Total 16 bay(s)

• 16x front hot-swap 2.5" NVMe*/SAS*/SATA* drive bays

Option B: Total 24 bay(s)

• 24 front hot-swap 2.5" NVMe*/SAS*/SATA* drive bays

*NVMe/SAS/SATA support may require additional storage controller and/or cables
