Supermicro Hyper SuperServer 212HA-TN

The single-socket Supermicro Hyper SuperServer 212HA-TN is powered by an Intel Xeon 6 processor from the 6900 series with P-cores. These CPUs support up to 128 cores and 256 thread, as well as a 500W TDP when air cooled. Under the hood, the Intel processor is surrounded by 12x memory module slots featuring up to 3TB of memory with RDIMM speeds running at 6400MT/s, or 8800MT/s with Multiplexed Rank DIMMs (MRDIMM). This system is ideal for virtualization, AI inference and machine learning, and more.
Configure

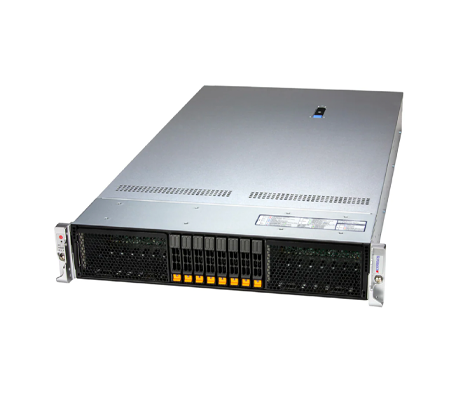

Supermicro Hyper SuperServer 212HA-TN side view
Intel Partner Gold AMD Executive Elite System Builder NVIDIA Elite Partner
Configure

Supermicro Hyper SuperServer 212HA-TN - System Overview

Supermicro Hyper SuperServer 112HA-TN front

There are two drive bay configuration options for the front of the 2U Supermicro SuperServer 212HA-TN. One option includes 24x hot-swap 2.5” SAS/SATA drive bays, while the other supports 8x hot-swap 2.5” NVMe/SAS/SATA drive bays. In addition, the motherboard features 2x M.2 NVMe slots for 2280, 22110, or 25110 cards. The Supermicro 212HA-TN also supports two PCIe expansion options:

Option A
  • 1x PCIe 5.0 x16 FH/10.5"L double-width slot
  • 1x PCIe 5.0 x8 FHFL slot
  • 1x PCIe 5.0 x16 HHFL double-width slot
  • 1x PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)

Option B
  • 2x PCIe 5.0 x8 FH/10.5"L slots
  • 1x PCIe 5.0 x8 FHHL slot
  • 1x PCIe 5.0 x16 FHFL double-width slot
  • 1x PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)

To manage the system, administrators can use SuperCloud Composer, Supermicro Server Manager, and SuperServer Automation Assistant, among other software. Users can deploy, maintain, and monitor the system in real-time to troubleshoot or update the system. The 212HA-TN has several PSU possibilities including the following:

Supermicro Hyper 112HA-TN rear
  • 2x 1200W Redundant (1 + 1) Titanium Level (96%) power supplies
  • 2x 1300W Redundant (1 + 1) Gold (Certification Pending) Level power supplies
  • 2x 1600W Redundant (1 + 1) Titanium Level (96%) power supplies
  • 2x 2000W Redundant (1 + 1) Titanium Level (96%) power supplies
  • 2x 2600W Redundant (1 + 1) Titanium Level (96%) power supplies

*This product is only sold completely assembled system including a minimum of 1x CPU, 1x DIMM, 1x Storage device HDD/HDS/M.2, and 1x NIC either AIOM or PCIe card.

Available Configurations

Explore available configurations for the Supermicro Hyper SuperServer 212HA-TN. Each configuration includes a specific combination of components and options to meet different performance, cooling, storage, and deployment requirements.

Supermicro Hyper SuperServer 212HA-TN - Specifications

Processor

  • Single Socket BR (LGA-7529)
  • Intel Xeon 6900 series processors with P-cores
  • Up to 128C/256T; Up to 504MB Cache
  • Supports up to 500W TDP CPUs (Air Cooled)

Memory

    Slot Count:

  • 12x DIMM slots

    • Max Memory:

  • Max Memory (1DPC): Up to 3TB 8800MT/s ECC DDR5 MRDIMM
  • Max Memory (1DPC): Up to 3TB 6400MT/s ECC DDR5 RDIMM

Drive Bays

    Default: Total 8 bays

  • 8x front hot-swap 2.5" NVMe*/SAS*/SATA* drive bays

    • Option A: Total 24 bays

  • 24x front hot-swap 2.5" SAS*/SATA* drive bays

    • M.2:

  • 2x M.2 NVMe slots (M-key 2280/22110/25110; VROC required for RAID)

    • *NVMe/SAS/SATA support may require additional storage controller and/or cables

On-board Devices

    NVMe:

  • NVMe; RAID 0/1/5/10 support(Intel VROC RAID key required)

    • Chipset:

  • System on Chip

    • Network Connectivity:

  • Via AIOM

Input/Output

    LAN:

  • 1x RJ45 1GbE Dedicated BMC LAN port

    • USB:

  • 2x USB 3.2 Gen1 ports(Rear)
  • 1x USB 3.2 Gen1 port(Front)

    • Video:

  • 1x VGA port

System BIOS

  • AMI 64MB SPI Flash

Management

    Software

  • SuperCloud Composer
  • Supermicro Server Manager (SSM)
  • Super Diagnostics Offline (SDO)
  • Supermicro Thin-Agent Service (TAS)
  • SuperServer Automation Assistant (SAA)

    • Power Configurations

  • Power-on mode for AC power recovery
  • ACPI Power Management

Expansion Slots

    Option A:

  • 1x PCIe 5.0 x16 FH/10.5"L double-width slot
  • 1x PCIe 5.0 x16 FHFL slot
  • 1x PCIe 5.0 x16 HHFL double-width slot
  • 1x PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)

    • Option B:

  • 2x PCIe 5.0 x8 FH/10.5"L slots
  • 1x PCIe 5.0 x8 FHHL slot
  • 1x PCIe 5.0 x16 FHFL double-width slot
  • 1x PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)

Power Supply

  • 2x 1200W Redundant (1 + 1) Titanium Level (96%) power supplies
  • 2x 1300W Redundant (1 + 1) Gold (Certification Pending) Level power supplies
  • 2x 1600W Redundant (1 + 1) Titanium Level (96%) power supplies
  • 2x 2000W Redundant (1 + 1) Titanium Level (96%) power supplies
  • 2x 2600W Redundant (1 + 1) Titanium Level (96%) power supplies

Chassis

    Form Factor

  • 2U Rackmount

    • Dimensions

  • Height: 3.5" (88.9 mm)
  • Width: 17.2" (437 mm)
  • Depth: 31.74" (806.2 mm)

    • Weight

  • Gross Weight: 75 lbs (34 kg)
  • Net Weight: 45 lbs (20.5 kg)
