Supermicro Hyper SuperServer 220H-TN24R

With support for up to 2x 3rd Generation Intel Xeon Scalable processors, the Supermicro Hyper SuperServer 220H-TN24R can be outfitted with up to 12TB of memory using Intel Optane with DRAM. On the front of the server, there are 24x 2.5-inch drive bays compatible with NVMe/SAS/SATA drives. To expand the capabilities of this system, the rear houses 4x optional PCIe 4.0 x16 or x8 full-height slots and 4x optional PCIe 4.0 x8 full-height slots. These slots will not be available to use if the chosen storage configuration is 24x NVMe drives.
Configure

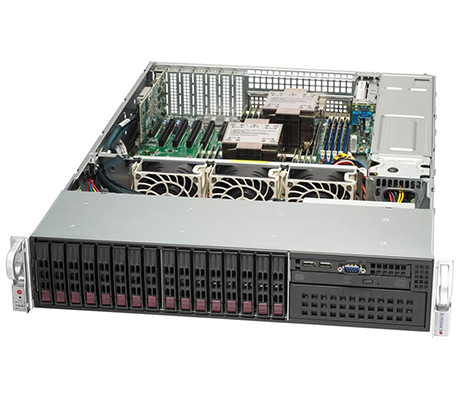

Supermicro 221P-C9R side view
Intel Partner Gold AMD Executive Elite System Builder NVIDIA Elite Partner
Configure

Supermicro Hyper SuperServer 220H-TN24R - System Overview

Supermicro SuperServer 2015S-E1CR24L front detail Supermicro 2015S-E1CR24L detail top

Additional Features

With a total of 32x DIMM slots evenly divided across both CPU sockets, The Supermicro Hyper 220H-TN24R server is designed for intensive computational applications such as cloud computing, server deployment, machine learning and more. 2x NVMe M.2 slots on the system board provide options for additional super-fast storage or can be used to boot the system in a mirrored RAID.

An optional Advanced I/O Module can be installed on the back of the chassis for additional network ports that will not detract from the PCIe slots. Depending on the choice of risers, the system will be outfitted with either 8x PCIe 4.0 x8 slots or 4x PCIe 4.0 x16 slots which will support up to 4x double-wide accelerator cards. System management is achieved by a dedicated Baseboard Management Controller (BMC) LAN port found on the back of the system. Powering the system are dual redundant 1600W Titanium level power Supply Units (PSU).

Supermicro Hyper SuperServer 220H-TN24R - Specifications

Processor - 2 Sockets

  • 3rd Gen Intel Xeon Scalable processors

    • Socket:

  • Dual Socket P+ (LGA-4189)

    • Physical Cores:

  • 40x

    • Virtual Threads:

  • 80x

Motherboard

  • Super X12DHM-6

Memory

    Memory Capacity:

  • Up to 8TB: 32x 256 GB DRAM
  • Up to 12TB: 16x 512 GB PMem and 16x 256 GB DRAM

    • Memory Type:

  • 3200MHz ECC DDR4 Intel Optane persistent memory 200 series

Drive Bays

    Drive Bays:

  • 24x 2.5" hot-swap NVMe/SATA/SAS drive bays

    • M.2:

  • 2 x M.2 NVMe or 2 x M.2 SATA3
  • M-Key, 2280 and 22110

Expansion Slots

    PCIe:

  • 4 x PCIe 4.0 x16 or x8 FH, 10.5"L slots (Optional)
  • 4 x PCIe 4.0 x8 FH, 10.5"L slots (Optional)

On-Board Devices

    SATA:

  • SATA3 (6Gbps); RAID 0/1/5/10 support

    • NVMe

  • NVMe; RAID 0/1/5/10 support (Intel VROC RAID Key required)

    • Chipset:

  • Intel C621A

    • Network Connectivity:

    • 2 x 1GbE BaseT with Intel i350-AM2 (optional)
    • 4 x 1GbE BaseT or 4x 1GbE SFP with Intel i350-AM4 (optional)
    • 2 x 10GbE BaseT with Intel X550-AT2 (optional)
    • 2 x 10GbE SFP+ with Intel X710-BM2 (optional)
    • 4 x 10GbE SFP+ with Intel XL710-BM1 (optional)
    • 4 x 10GbE RJ45/SFP+ with Intel X710-TM4 (optional)
    • 2 x 25GbE SFP28 with Broadcom BCM57414 (optional)
    • 4 x 25GbE RJ45/SFP28 with Mellanox CX-4 Lx EN Intel X550-AT2 (optional)
    • 2 x 100GbE QSFP28 with Broadcom® BCM57508 (optional)

    IPMI:

  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Input / Output

    LAN:

  • 1 x RJ45 Dedicated BMC LAN port

    • USB:

  • 2 x USB 3.0 ports (2 rear)

    • Video:

  • 1 x VGA port

Management

  • Intelligent Platform Managemnt Interface (IPMI) 2.0
  • KVM with dedicated LAN
  • Super Diagnostics Offline
  • SuperDoctor 5
  • Supermicro Update Manager (SUM)
  • Supermicro Power Manager (SPM)
  • Supermicro Server Manager (SSM)
  • Redfish API

System Cooling

    Fans:

  • 4x 8cm heavy duty fans with optimal fan speed control

    • Air Shroud:

  • 2 x Air Shrouds

Power Supply

  • 2 x 1600W Redundant Titanium Level Power Supplies

Chassis

    Enclosure:

    Height: 3.5" (88.9mm)

    Width: 17.2" (437mm)

    Depth: 29.9" (760mm)

Supermicro Hyper SuperServer 220H-TN24R - Documentation

Supermicro Hyper SuperServer 220H-TN24R Data Sheet Supermicro Hyper SuperServer 220H-TN24R User's Manual
