Supermicro Hyper SuperServer 221H-TN24R

Featuring dual 4th or 5th Generation Intel Xeon Scalable Processors, the Supermicro Hyper SuperServer 221H-TN24R features 32x DDR5 DIMM slots for a maximum memory capacity of up to 8TB. Accessible from the front of the system, there are 24x hot-swappable 2.5-inch hybrid drive bays, and 2x internal NVMe M.2 drive slots. To expand the capabilities of, depending on the installed risers the Supermicro 221H-TN24R will support up to 8x PCIe 5.0 x8 or 4 PCIe 5.0 x16 slots with support for double-width GPU/Accelerator cards.
Configure

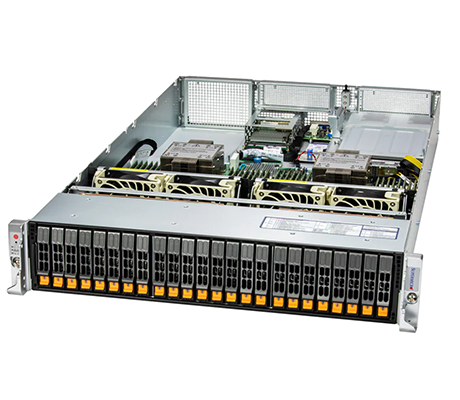

Supermicro 221H-TN24R side view
Intel Partner Gold AMD Executive Elite System Builder NVIDIA Elite Partner
Configure

Supermicro Hyper SuperServer 221H-TN24R - System Overview

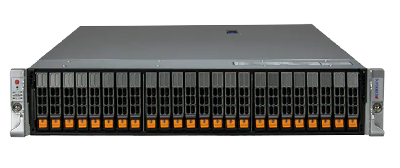

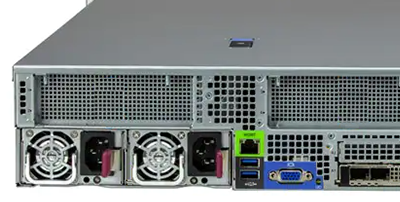

Supermicro SuperServer 221H-TN24R front detail Supermicro SuperServer 221H-TN24R detail top

Summary

Designed for virtualization, software-defined storage (SDS), and cloud computing, the Supermicro Hyper 221H-TN24R server is powered dual 1600W power supplies in a redundant configuration. SAS drive support requires optional parts.

NOTE: This system is only sold as a complete system and should include at least 2 CPU, 4 DIMMs, 1 NIC adapter, & 1 HDD/SSD.

Available Configurations

Explore available configurations for the Supermicro Hyper SuperServer 221H-TN24R. Each configuration includes a specific combination of components and options to meet different performance, cooling, storage, and deployment requirements.

Supermicro Hyper SuperServer 221H-TN24R - Specifications

Processor - 2 Sockets

  • 5th Generation Intel Xeon Scalable Processor
  • 4th Generation Intel Xeon Scalable Processor
  • Supports Intel Xeon CPU Max Series with high bandwidth memory (HBM)​
  • Up to 64C/128T; Up to 320MB Cache per CPU
  • Supports up to 350W TDP CPUs (Air Cooled)
  • Supports up to 350W TDP CPUs (Liquid Cooled)

    • Socket:

  • 2 x LGA-4677

Motherboard

  • Super X13DEM

Memory

    Memory Slots:

  • 32 x DDR5 DIMM slots

    • Memory Capacty:

  • Up to 8TB: 32x 256GB DRAM

    • Memory Speed:

  • Up to 5600MHz

Drive Bays

    Hot-Swap:

  • 24 x 2.5" hot-swap NVMe/SATA/SAS drive bays

    • M.2:

  • 2 x M.2 NVMe or 2 x M.2 SATA3

Expansion Slots

  • 8 x PCIe 5.0 x8 Slots
  • 4 x PCIe 5.0 x16 slots with support for double-width GPU/Accelerator cards

On-Board Devices

    Chipset:

  • Intel C741 chipset

    • Network Controllers:

  • 2x 1GbE BaseT with Intel i350-AM2 (optional)
  • 4x 1GbE BaseT or 4x 1GbE SFP with Intel i350-AM4 (optional)
  • 2x 10GbE BaseT with Intel X550-AT2 (optional)
  • 2x 10GbE SFP+ with Intel X710-BM2 (optional)
  • 4x 10GbE SFP+ with Intel XL710-BM1 (optional)
  • 4x 10GbE RJ45/SFP+ with Intel X710-TM4 (optional)
  • 2x 25GbE SFP28 with Broadcom BCM57414 (optional)
  • 4x 25GbE RJ45/SFP28 with Mellanox CX-4 Lx EN Intel X550-AT2 (optional)
  • 2x 100GbE QSFP28 with Broadcom BCM57508 (optional)

    • IPMI:

  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Chassis

    Enclosure:

    Height: 3.5" (88.9mm)

    Width: 17.2" (437mm)

    Depth: 29.4" (747mm)
