Supermicro Hyper SuperServer 221H-TNR

Featuring a 2U chassis, the Supermicro Hyper SuperServer 221H-TNR supports dual 4th and 5th Generation Intel Xeon Scalable Processors. Each CPU socket supports 16x DDR5 DIMM slots for a maximum memory capacity of 8TB with all 32x slots in play. On the front of the system, there are 8x 2.5-inch hybrid drive bays with an option for 8x more for a total of 16x 2.5-inch hybrid drive bays. Expansion slots on the Supermicro 221H-TNR include 4x PCIe 5.0 x16 or x8 full-height, 10.5” length slots, 4x PCIe 5.0 x8 full-height, 10.5” length slots, and 2x optional internal NVMe M.2 drive slots. It can also support 2x DW GPUs.

Supermicro Hyper SuperServer 221H-TNR - System Overview

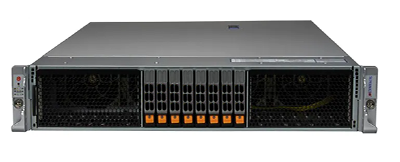

Supermicro SuperServer 221H-TNR front detail

Supermicro SuperServer 221H-TNR detail top

Summary

Designed for Virtualization, AI Inference and Machine Learning, Software-defined Storage, Cloud Computing, and other intensive applications, the Supermicro Hyper 221H-TNR server is powered by dual 800W/1200W Titanium CRPS power supplies in a redundant configuration.

NOTE: This chassis is only sold as a completely assembled system with at least 2 CPU, 4 DIMMs, 1 NIC adapter, and 1 HDD/SSD.

Supermicro Hyper SuperServer 221H-TNR - Specifications

Processor - 2 Sockets

5th Generation Intel Xeon Scalable Processor
4th Generation Intel Xeon Scalable Processor
Supports Intel Xeon CPU Max Series with high bandwidth memory (HBM)
Up to 64C/128T; Up to 320MB Cache per CPU
Supports up to 350W TDP CPUs (Air Cooled)
Supports up to 350W TDP CPUs (Liquid Cooled)

Socket:

2 x LGA-4677

Motherboard

Super X13DEM

Memory

32 x DDR5 DIMM slots

Memory Capacty:

Up to 8TB: 32x 256GB DRAM

Memory Speed:

Up to 5600MHz

Drive Bays

8 - 16 x 2.5" hot-swap NVMe/SATA/SAS drive bays

M.2:

2 x M.2 NVMe or 2 x M.2 SATA3

Expansion Slots

4 x PCIe 5.0 x16 or x8 FH, 10.5"L slots (Optional)
4 x PCIe 5.0 x8 FH, 10.5"L slots (Optional)

On-Board Devices

Chipset:

Intel C741 chipset

Network Controllers:

2x 1GbE BaseT with Intel i350-AM2 (optional)
4x 1GbE BaseT or 4x 1GbE SFP with Intel i350-AM4 (optional)
2x 10GbE BaseT with Intel X550-AT2 (optional)
2x 10GbE SFP+ with Intel X710-BM2 (optional)
4x 10GbE SFP+ with Intel XL710-BM1 (optional)
4x 10GbE RJ45/SFP+ with Intel X710-TM4 (optional)
2x 25GbE SFP28 with Broadcom BCM57414 (optional)
4x 25GbE RJ45/SFP28 with Mellanox CX-4 Lx EN Intel X550-AT2 (optional)
2x 100GbE QSFP28 with Broadcom BCM57508 (optional)

IPMI:

Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Chassis

Height: 3.5" (88.9mm)

Width: 17.2" (437mm)

Depth: 29.4" (747mm)
