Supermicro Hyper SuperServer 222H-TN - System Overview
Additional Information

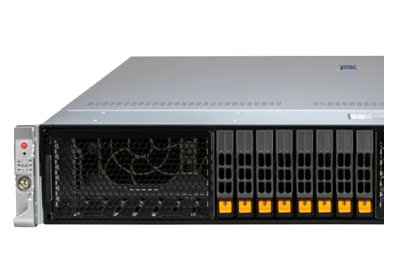

This flexible 2U platform is ideal for cloud computing, big data analytics, hyperconverged storage, network function, virtualization, AI inference and machine learning, and more. The Hyper SuperServer 222H-TN offers an 8-channel memory architecture supporting 32x DDR5 RDIMM slots with up to 8TB of memory and memory speeds ranging from 5200MT/s to 8000MT/s. Memory rates vary depending on the CPU, supported memory module speed, and configuration. The storage bays on the front panel are flexible with 3x configurations. The server delivers either 8x, 16x, or 24x 2.5-inch hybrid bays for NVMe, SAS, SATA storage mediums. To expand storage or install the OS, there are 2x internal M.2 PCIe 5.0 x2 NVME slots with support for 2280 and 22110 card form factors.

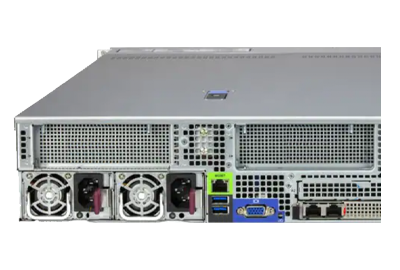

The Hyper 222H-TN supports two expansion slot options. Option B provides 8x PCIe 5.0 x8 slots with a x16 length for single-width GPUs, while Option A delivers 4x PCIe 5.0 x16 slots with support for double width GPUs. The rear of the platform also supports 1x PCIe 5.0 x16 AIOM slot and 1x PCIe 5.0 x8 AIOM slot, which are both OCP 3.0 compatible. It also offers CXL support with up to 4x CXL 2.0 x16/x8 devices. Additionally, administrators have the option of choosing dual 1200W, 1600W, 2000W, or 2600W redundant (1+1) Titanium level (96%) power supplies. Supermicro provides management solutions such as SuperCloud Composer, Supermicro Server Manager (SSM), Super Diagnostics Offline (SDO), and SuperServer Automation Assistant (SAA) to update, monitor, and manage IT assets.
