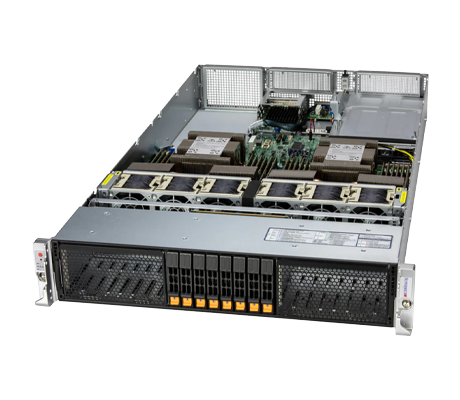

Supermicro Hyper SuperServer 222HA-TN
Engineered for demanding workloads such as artificial intelligence, virtualization, and data analytics, the Supermicro Hyper SuperServer 222HA-TN supports up to 4x double-width or 4x single-width GPUs, connected via a PCIe 5.0 x16 CPU-to-GPU interconnect. The system offers up to 24x memory module slots, accommodating up to 6TB of DDR5 memory. DDR5 RDIMMs support speeds of up to 6400MT/s, while DDR5 MRDIMMs can reach up to 8800MT/s. This Intel-based server features flexible power configurations, including dual hot-swap redundant Titanium-level PSUs rated at 2600W, with options for 2000W and 1600W units as well.

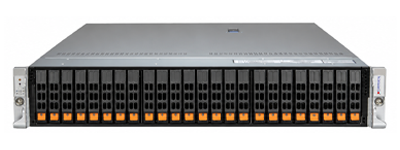

The dual-socket Supermicro SuperServer 222HA-TN supports Intel Xeon 6900 series processors with P-cores, each offering up to 128 cores and 256 threads, and a TDP of up to 500W, whether air- or liquid-cooled. The system offers 3x front panel drive bay configurations: 8x, 16x, or 24x hot-swap 2.5” NVMe, SAS, or SATA drive bays. Optional RAID functionality is supported via 2x M.2 PCIe 5.0 x2 NVMe slots on the X14 motherboard, compatible with 2280 and 22110 form factor cards. Depending on the chosen drive bay configuration, administrators can choose between 2x options for connecting expansion devices.
