Supermicro IoT SuperServer 112B-FWT

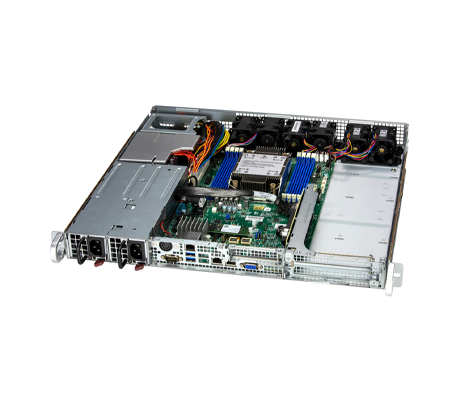

Offering a short chassis depth of 16.9-inches, the Supermicro IoT SuperServer 112B-FWT is a compact 1U edge server intended for multi-access edge computing, satellite communication, DU of 5G application, and more. At the heart of the system, a single Intel Xeon 6 processor with a maximum TDP of up to 350W when air cooled can be deployed. To each side of the CPU, there are 4x DIMM slots, for a total of 8x DIMM slots that can be outfitted with a maximum capacity of up to 1TB of DDR5 RDIMMs.

Overview

Supermicro IoT SuperServer 112B-FWT - System Overview

Supermicro IoT SuperServer 112B-FWT front

Under the hood, the IoT SuperServer 112B-FWT offers 2x internal, fixed storage expansion bays for 2.5” NVMe/SATA drive bays. Similarly, the operating system can be stored on 2x M.2 NVMe drives using the PCIe 5.0 x2 slots on the system board. Although it has a small physical footprint, this machine can support 1x single-width GPU such as the NVIDIA PCIe A2 and NVIDIA PCIe L4 GPU cards.

Supermicro IoT SuperServer 112B-FWT motherboard

For expansion options, the chassis provides 2x PCIe 5.0 x16 full-height, full-length slots and 1x PCIe 5.0 x16 low-profile slot. The platform is powered by 2x 860W redundant (1 + 1) Titanium Level (96%) hot-plug power supplies. Easily managed at chassis and remotely by Supermicro software utilities, applications include the Think-Agent Service (TAS), SuperCloud Composer, Super Diagnostics Offline (SDO), Supermicro Server Manager (SSM), and SuperServer Automation Assistant (SAA).

*This product is only sold as a completely assembled system with a minimum of 1x CPU, 2x DIMMs, and 1x storage device (HDD/HDS).

Specifications

Supermicro IoT SuperServer 112B-FWT - Specifications

Processor - 1 Socket

Intel Xeon 6 6700/6500 series processors with P-cores
Intel Xeon 6 6700 series processors with E-cores

P-cores: Up to 86C/172T; Up to 336MB Cache
E-cores: Up to 144C/144T; Up to 108MB Cache
Supports up to 350W TDP CPUs (Air Cooled)

Socket:

Single Socket E2 (LGA-4710)

Motherboard

Super X14SBW-TF

GPU

Up to 1x single-width GPUs
NVIDIA PCIe: L4, A2

Memory

8x DIMM slots/8x Channels

Memory Capacity:

Max Memory (1DPC): Up to 1TB 6400MT/s ECC DDR5 RDIMM

Drive Bays

2x internal fixed 2.5" NVMe/SATA drive bays

M.2:

2x M.2 PCIe 5.0 x2 NVMe slots
Form Factor: 2280/22110

Expansion Slots

2x PCIe 5.0 x16 FHFL slots
1x PCIe 5.0 x16 LP slots

On-Board Devices

SATA:

SATA (6Gbps)

Chipset:

System on Chip

Network Connectivity:

2x RJ45 10GbE with Intel® X550

Fans

6x 4cm heavy duty fans with optimal fan speed control

Power Supply

2x 800W Redundant (1 + 1) Platinum Level (94%) Hot-plug power supplies
2x 860W Redundant (1 + 1) Titanium Level (96%) Hot-plug power supplies

Chassis

Height: 1.7" (43.6mm)

Width: 17.2" (438.4mm)

Depth: 16.9" (429.3 mm)

Gross Weight: 15 lbs (6.8 kg)

Net Weight: 10 lbs (4.54 kg)

Documentation

Supermicro IoT SuperServer 112B-FWT - Documentation

Supermicro IoT SuperServer 112B-FWT Data Sheet Supermicro IoT SuperServer 112B-FWT User Manual Supermicro IoT SuperServer 112B-FWT Quick Reference Guide
