Supermicro IoT SuperServer 211SE-31A

Featuring 3x hot-pluggable system nodes, the Supermicro IoT SuperServer 211SE-31A has a short chassis length. Each node is outfitted with a single 4th or 5th Generation Intel Xeon Scalable CPU, plus 8x DDR5 DIMM slots. At maximum memory capacity, each node can provide up to 2TB. 2x slots on the system board can support M.2 NVMe drives. To expand the capabilities of the Supermicro IoT 211SE-31A server, each node houses a single PCIe 5.0 x16 low-profile slot and 2x PCIe 5.0 x16 full-height, full-length slots.
Configure

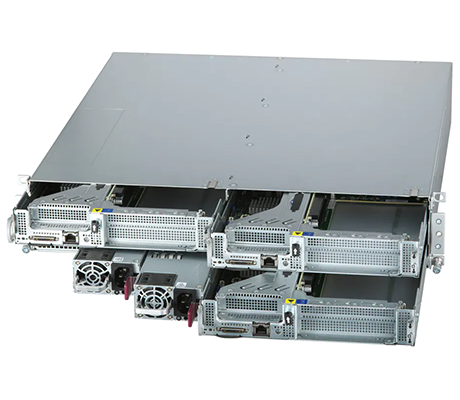

Supermicro 211SE-31A side view
Intel Partner Gold AMD Executive Elite System Builder NVIDIA Elite Partner
Configure

Supermicro IoT SuperServer 211SE-31A - System Overview

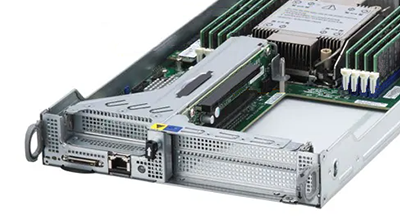

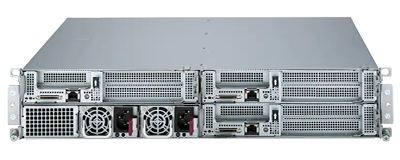

Supermicro SuperServer 211SE-31A front detail Supermicro SuperServer 211SE-31A detail top

Additional Features

The Supermicro 211SE-31A is designed for Multi-Access Edge Computing, Telecom DRAN, CRAN, and Edge Core Applications, and Enterprise Edge Computing. This system is powered by dual 2000W power supplies in a redundant configuration.

Supermicro IoT SuperServer 211SE-31A - Specifications

Processor - 1 Socket

  • 5th Generation Intel Xeon Scalable Processor
  • 4th Generation Intel Xeon Scalable Processor
  • Up to 52C/104T; Up to 97.5MB Cache per CPU
  • Supports 85W - 300W TDP CPUs (Air Cooled)*

    • *Air Cooled CPUs with TDP over 205W only supported under specific conditions.

    Socket (per Node):

  • 1 x LGA-4677

    • Socket (Total):

  • 3 x LGA-4677

Motherboard

  • Super X13SEED-F

Memory

    Memory Slots (per Node):

  • 8 x DDR5 DIMM slots

    • Memory Capacity (per Node):

  • Up to 2TB: 64x 256GB DRAM

    • Memory Slots (Total):

  • 24 x DDR5 DIMM slots

    • Memory Capacity (Total):

  • Up to 6TB: 64x 256GB DRAM

    • Memory Speed:

  • Up to 5600MHz

Drive Bays

    M.2 (per Node):

  • 2 x M.2 NVMe
  • M-Key, 2280/22110

    • M.2 (Total):

  • 6 x M.2 NVMe
  • M-Key, 2280/22110

Expansion Slots

    Per Node:

  • 1 x PCIe 5.0 x16 Low-Profile slots
  • 2 x PCIe 5.0 x16 Full-Height, Half-Length slots

    • Total:

  • 3 x PCIe 5.0 x16 Low-Profile slots
  • 6 x PCIe 5.0 x16 Full-Height, Half-Length slots

On-Board Devices (per Node)

    Chipset:

  • Intel C741 chipset

    • Network Connectivity:

  • 1 x 1GbE SFP

    • IPMI:

  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Input / Output (per Node)

    LAN:

  • 1 x SFP GbE LAN port (Shared NIC)

    • Video:

  • 1 x VGA ports

    • Serial Port:

  • 1 x COM Ports (1 COM)

    • Others:

  • 1 x KVM dongle (output VGA x1, COM x1, USB 2.0 x2 through KVM cable)

Chassis

    Enclosure:

    Height: 3.5" (88mm)

    Width: 17.7" (449mm)

    Depth: 16.9" (430mm)

Supermicro IoT SuperServer 211SE-31A - Documentation

Supermicro IoT SuperServer 211SE-31A Data Sheet Supermicro IoT SuperServer 211SE-31A User Manual
