Supermicro IoT SuperServer 211SE-31AS

Featuring 3x compute nodes and a short chassis length, the Supermicro IoT SuperServer 211SE-31AS is compatible with a single 4th or 5th Generation Intel Xeon Scalable per node. Each node in the 2U rack-mountable chassis supports 8x DDR5 DIMM slots. When fully configured each node has a maximum memory capacity of up to 2TB. Dual M.2 NVMe drive slots are available on the system board. On the rear of each node of the Supermicro IoT 211SE-31AS there is a single PCIe 5.0 x16 low-profile slot and 2x PCIe 5.0 x6 full-height, half-length slots.
Configure

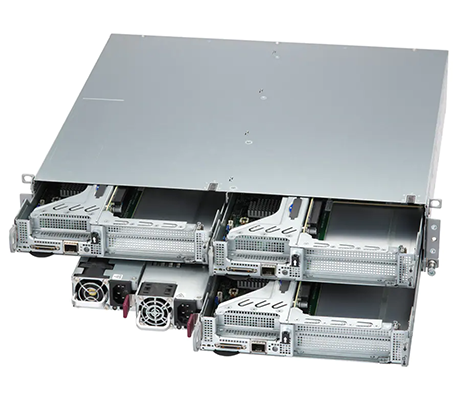

Supermicro 211SE-31AS side view
Intel Partner Gold AMD Executive Elite System Builder NVIDIA Elite Partner
Configure

Supermicro IoT SuperServer 211SE-31AS - System Overview

Supermicro SuperServer 211SE-31AS front detailSupermicro SuperServer 211SE-31AS detail top

Additional Features

With its short chassis length, the Supermicro 211SE-31AS is an ideal server for Multi-Access Edge Computing and Enterprise Edge Computing. It is powered by 2x 2000W power supplies in a redundant configuration. A total of 6x internal NVMe drive slots are available across this whole system and can be used to support the OS.

Supermicro IoT SuperServer 211SE-31AS - Specifications

Processor - 1 Socket

  • 5th Generation Intel Xeon Scalable Processor
  • 4th Generation Intel Xeon Scalable Processor
  • Up to 52C/104T; Up to 97.5MB Cache per CPU
  • Supports 85W - 300W TDP CPUs (Air Cooled)*

    • *Air Cooled CPUs with TDP over 205W only supported under specific conditions.

    Socket (per Node):

  • 1 x LGA-4677

    • Socket (Total):

  • 3 x LGA-4677

Motherboard

  • Super X13SEED-SF

Memory

    Memory Slots (per Node):

  • 8 x DDR5 DIMM slots

    • Memory Capacity (per Node):

  • Up to 2TB: 64x 256GB DRAM

    • Memory Slots (Total):

  • 24 x DDR5 DIMM slots

    • Memory Capacity (Total):

  • Up to 6TB: 64x 256GB DRAM

    • Memory Speed:

  • Up to 5600MHz

Drive Bays

    M.2 (per Node):

  • 2 x M.2 NVMe
  • M-Key, 2280/22110

    • M.2 (Total):

  • 6 x M.2 NVMe
  • M-Key, 2280/22110

Expansion Slots

    Per Node:

  • 1 x PCIe 5.0 x16 Low-Profile slots
  • 2 x PCIe 5.0 x16 Full-Height, Half-Length slots

    • Total:

  • 3 x PCIe 5.0 x16 Low-Profile slots
  • 6 x PCIe 5.0 x16 Full-Height, Half-Length slots

On-Board Devices (per Node)

    Chipset:

  • Intel C741 chipset

    • Network Connectivity:

  • 1 x 1GbE SFP

    • IPMI:

  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Input / Output (per Node)

    LAN:

  • 1 x SFP GbE LAN port (Shared NIC)

    • Video:

  • 1 x VGA ports

    • Serial Port:

  • 1 x COM Ports (1 COM)

    • Others:

  • 1 x KVM dongle (output VGA x1, COM x1, USB 2.0 x2 through KVM cable)

Chassis

    Enclosure:

    Height: 3.5" (88mm)

    Width: 17.7" (449mm)

    Depth: 16.9" (430mm)

Supermicro IoT SuperServer 211SE-31AS - Documentation

Supermicro IoT SuperServer 211SE-31AS Data Sheet Supermicro IoT SuperServer 211SE-31AS User Manual
