Supermicro IoT SuperServer 211SE-31D

The Supermicro IoT SuperServer 211SSE-31D offers 3x hot-pluggable nodes in a 2U form factor. Although the system does not support drive bays, there are 2x M.2 NVMe PCIe 5.0 x4 internal slots for 2280 and 22110 cards, per node. Each node can accommodate a single 4th or 5th generation Intel Xeon Scalable processor with up to 52 cores, 104 threads, and a TDP of up to 300W. The Super X13 motherboard enables up to 2TB of DDR5 memory. RDIMM and LRDIMM memory modules support speeds of up to 5600MHz.
Configure

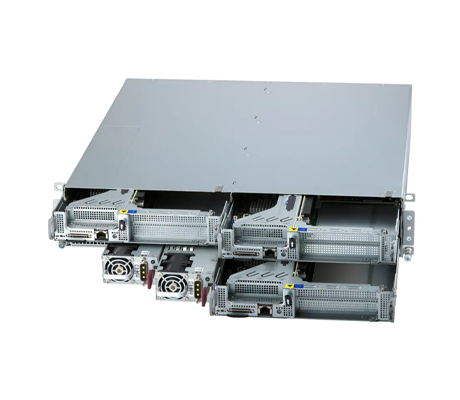

Supermicro IoT SuperServer 211SE-31D side view
Intel Partner Gold AMD Executive Elite System Builder NVIDIA Elite Partner
Configure

Supermicro IoT SuperServer 211SE-31D - System Overview

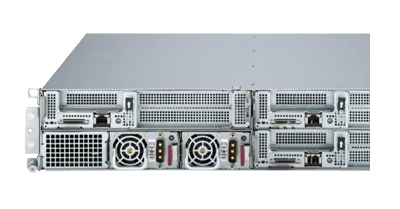

Supermicro 211SE-31D front of system

This system is ideal for multi-access edge computing, telecom DRAN, CRAN, edge core applications, and more. On the front of the server, there are dual 2000W DC redundant power supplies, plus 4x counter-rotating fans with fan speed control and an air shroud directing fresh air over critical components. Each node supports 3x PCIe 5.0 slots on the back of the chassis, including 1x PCIe 5.0 x16 low-profile slots and 2x PCIe 5.0 x16 full-height, half-length slots. With the help of SuperDoctor 5, Supermicro’s own software, the SuperServer 211SSE-31D can be used to keep track of the system's CPU temperature, voltages, fan speed, and other factors. This tool can be used locally or remotely, as well as other software like Redfish API, IPMI 2.0, and Watch Dog.

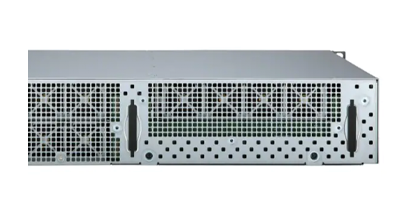

Supermicro 211SE-31D rear of system

Available Configurations

Explore available configurations for the Supermicro IoT SuperServer 211SE-31D. Each configuration includes a specific combination of components and options to meet different performance, cooling, storage, and deployment requirements.

Supermicro IoT SuperServer 211SE-31D - Specifications

Processor - 1 Socket (per node)

  • Single Socket E (LGA-4677)
  • 5th Gen Intel Xeon Scalable Processors
  • 4th Gen Intel Xeon Scalable Processors
  • Up to 52C/104T; Up to 97.5MB Cache per CPU
  • Supports 85W-300W TDP

    • *Air Cooled CPUs with TDP over 205W only supported under specific conditions.

Memory (per node)

    Maximum Memory:

  • Up to 2TB

    • Memory Slots:

  • 8 x DIMM slots

    • Memory Type:

  • 5600MHz ECC DDR5 RDIMM/LRDIMM

Drive Bays (per node)

    Hot-swap:

  • N/A

    • M.2:

  • 2x M.2 NVMe
  • M-Key, 2280 and 22110

On-board Devices (per node)

    Chipset:

  • Intel C741

    • Network Controllers:

  • 1x 1GbE BaseT port(s)

    • IPMI:

  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Input/Output (per node)

    LAN:

  • 1x RJ45 GbE LAN port (shared with IPMI)

    • Video:

  • 1x VGA Port

    • Serial Port:

  • 1x COM Port(s) (1 COM)

    • Others:

  • 1x KVM dongle (output VGA x1, COM x1, USB 2.0 x2 through KVM cable)

Management

  • Super Diagnostics Offline
  • IPMI 2.0, KVM with dedicated LAN
  • Supermicro Update Manager (SUM)
  • Supermicro Server Manager (SSM)
  • SuperDoctor® 5
  • Redfish API

Front Panel

    Buttons:

  • Power On/Off button
  • UID button

    • LEDs:

  • LAN1 Activity LED
  • Power Status LED
  • System Information LED

Expansion Slots

  • 1x PCIe 5.0 x16 LP slot(s)
  • 2x PCIe 5.0 x16 FHHL slot(s)

Power Supply

  • 2000W Redundant Titanium Level power supplies

Chassis

    Form Factor

  • 2U Rackmount

    • Dimensions (D x W x H)

  • 16.9" (430mm) x 17.7" (449mm) x 3.5" (89mm)

    • Weight

  • Gross Weight: 70.6 lbs (32 kg)
  • Net Weight: 55.1 lbs (25 kg)

Supermicro IoT SuperServer 211SE-31D - Documentation

Supermicro IoT SuperServer 211SE-31D Datasheet Supermicro IoT SuperServer 211SE-31D User Manual
