Supermicro IoT SuperServer 211SE-31DS

The Supermicro IoT SuperServer 211SE-31DS is housed in a 2U rackmountable chassis with 3x hot-pluggable compute nodes. Each node supports a single 4th or 5th Generation Intel Xeon Scalable processor and 8x DDR5 DIMM slots. Fully configured, the maximum memory capacity is 2TB per node. The system OS can be installed on 2x M.2 NVMe drives on the system board. System expansion is achieved through a single PCIe 5.0 x16 low-profile slot and 2x PCIe 5.0 full-height, half-length slots.
Configure

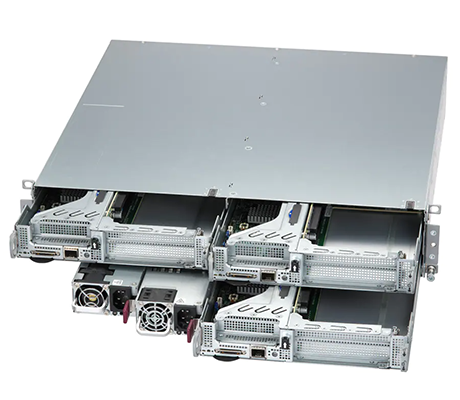

Supermicro 211SE-31DS side view
Intel Partner Gold AMD Executive Elite System Builder NVIDIA Elite Partner
Configure

Supermicro IoT SuperServer 211SE-31DS - System Overview

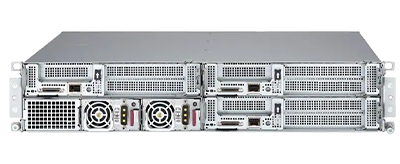

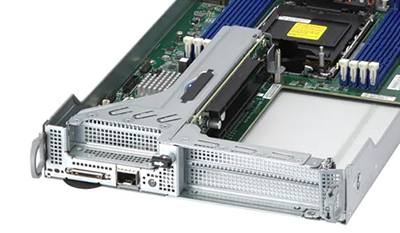

Supermicro SuperServer 211SE-31DS front detail Supermicro SuperServer 211SE-31DS detail top

Additional Features

Designed for Multi-Access Storage, Enterprise Edge Computing, and Telecom DRAN, CRAN, and Edge Core Applications, the Supermicro IoT 211SE-31DS is housed in a 2U chassis. All nodes and PSUs can be accessed from the front of the unit. This system features a short length chassis and is powered by dual 2000W power supplies in a redundant configuration.

Supermicro IoT SuperServer 211SE-31DS - Specifications

Processor - 1 Socket

  • 5th Generation Intel Xeon Scalable Processor
  • 4th Generation Intel Xeon Scalable Processor
  • Up to 52C/104T; Up to 97.5MB Cache per CPU
  • Supports 85W - 300W TDP CPUs (Air Cooled)*

    • *Air Cooled CPUs with TDP over 205W only supported under specific conditions.

    Socket (per Node):

  • 1 x LGA-4677

    • Socket (Total):

  • 3 x LGA-4677

Motherboard

  • Super X13SEED-SF

Memory

    Memory Slots (per Node):

  • 8 x DDR5 DIMM slots

    • Memory Capacity (per Node):

  • Up to 2TB: 64x 256GB DRAM

    • Memory Slots (Total):

  • 24 x DDR5 DIMM slots

    • Memory Capacity (Total):

  • Up to 6TB: 64x 256GB DRAM

    • Memory Speed:

  • Up to 5600MHz

Drive Bays

    M.2 (per Node):

  • 2 x M.2 NVMe
  • M-Key, 2280/22110

    • M.2 (Total):

  • 6 x M.2 NVMe
  • M-Key, 2280/22110

Expansion Slots

    Per Node:

  • 1 x PCIe 5.0 x16 Low-Profile slots
  • 2 x PCIe 5.0 x16 Full-Height, Half-Length slots

    • Total:

  • 3 x PCIe 5.0 x16 Low-Profile slots
  • 6 x PCIe 5.0 x16 Full-Height, Half-Length slots

On-Board Devices (per Node)

    Chipset:

  • Intel C741 chipset

    • Network Connectivity:

  • 1 x 1GbE SFP

    • IPMI:

  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Input / Output (per Node)

    LAN:

  • 1 x SFP GbE LAN port (shared with IPMI)

    • Video:

  • 1 x VGA ports

    • Serial Port:

  • 1 x COM Ports (1 COM)

    • Others:

  • 1 x KVM dongle (output VGA x1, COM x1, USB 2.0 x2 through KVM cable)

Chassis

    Enclosure:

    Height: 3.5" (88mm)

    Width: 17.7" (449mm)

    Depth: 16.9" (430mm)

Supermicro IoT SuperServer 211SE-31DS - Documentation

Supermicro IoT SuperServer 211SE-31DS Data Sheet Supermicro IoT SuperServer 211SE-31DS User Manual
