Supermicro IoT SuperServer 212B-FLN2T

The compact 2U Supermicro IoT SuperServer 212B-FLN2T measures 17.7 inches in depth, making it ideal for 5G core and edge environments, network function virtualization, cloud computing, and beyond. At its core, the system is powered by a single Intel Xeon 6 processor either from the 6500 or 6700 series.
Configure
Supermicro IoT SuperServer 212B-FLN2T side view
Intel Partner Gold AMD Executive Elite System Builder NVIDIA Elite Partner
Configure

Supermicro IoT SuperServer 212B-FLN2T - System Overview

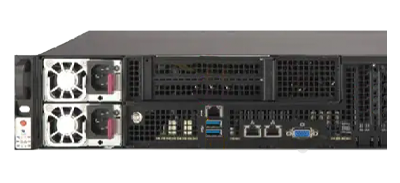

Supermicro IoT SuperServer 212B-FLN2T front detail

Users can choose between P-Core or E-Core configurations: P-Core CPUs support up to 86 cores and 172 threads, while E-Core variants offer up to 144 cores and 144 threads. Processors supported on this platform are limited to a maximum TDP of up to 350W with air cooling. The 8x DIMM slots surrounding the CPU, can accommodate up to 1TB of DDR5 RDIMMs at speeds of 6400 MT/s. For storage, the SuperServer 212B-FLN2T offers flexible options. The rear panel houses 4x hot-swap 2.5” NVMe drive bays, which may require additional storage controllers or cables. Additionally, the system includes 2x M.2 PCIe 5.0 x2 NVMe slots (M-key 22110) ideal for OS boot drives or extra storage.

The 212B-FLN2T server supports up to 4x single-width GPUs via a PCIe 5.0 x16 CPU-to-GPU interconnect. By default, it features 3x PCIe 5.0 x16 (in x16) HHFL slots and 3x PCIe 5.0 x8 (in x8) HHFL slots, but alternative configurations are also available.

Optional PCIe Configurations:
Default

  • 3 PCIe 5.0 x16 (in x16) HHFL slots
  • 3 PCIe 5.0 x8 (in x8) HHFL slots

Option A
  • 3 PCIe 5.0 x16 (in x16) HHFL slots
  • 3 PCIe 5.0 x8 (in x8) HHFL slots
  • 1 PCIe 5.0 x16 (in x16) FHFL double-width slot
Supermicro SuperServer 212B-FLN2T rear

The I/O panel is located at the front of the chassis, enabling easy access. To streamline management of the system, Supermicro provides a suite of software utilities. These include the SuperServer Automation Assistant (SAA), SuperCloud Composer, and Supermicro Server Manager. SAA, a command-line-based tool, allows administrators to configure, manage, and update a single node or an entire data center.

Available Configurations

Explore available configurations for the Supermicro IoT SuperServer 212B-FLN2T. Each configuration includes a specific combination of components and options to meet different performance, cooling, storage, and deployment requirements.

Supermicro IoT SuperServer 212B-FLN2T - Specifications

Processor - 1 Socket

  • Intel Xeon 6700 series processors with P-Cores
  • Intel Xeon 6500 series processors with P-Cores
  • Intel Xeon 6700 series processors with E-Cores
  • P-cores: Up to 86C/172T; Up to 336MB Cache
  • E-cores: Up to 144C/144T; Up to 108MB Cache
  • Supports up to 350W TDP CPUs (Air Cooled)
  • Chipset: System on Chip

Motherboard

  • Super X14SBI-TF

Memory

    Slot Count:

  • 8x DIMMs

    • Max Memory:

  • 1DPC: Up to 1TB 6400MT/s ECC DDR5 RDIMM

Drive Bays

    Default: Total 4 Bays

  • 4x rear hot-swap 2.5" NVMe drive bays

    • M.2:

  • 2x M.2 PCIe 5.0 x2 NVMe slots (M-key 22110)

Expansion Slots

    Default:

  • 3 PCIe 5.0 x16 (in x16) HHFL slots
  • 3 PCIe 5.0 x8 (in x8) HHFL slots

    • Option A:

  • 3 PCIe 5.0 x16 (in x16) HHFL slots
  • 3 PCIe 5.0 x8 (in x8) HHFL slots
  • 1 PCIe 5.0 x16 (in x16) FHFL double-width slot

GPUs

    Max GPU Count:

  • Up to 4 single-width GPUs

    • CPU-GPU Interconnect:

  • PCIe 5.0 x16 CPU-to-GPU Interconnect

On-Board Devices

    NVMe:

  • NVMe; RAID 0/1 support(Intel VROC RAID key required)

    • Chipset:

  • System on Chip

    • Network Connectivity:

  • 2 RJ45 10GBASE-T with Intel X550

System BIOS

  • AMI 64MB UEFI

Input / Output

    LAN:

  • 1 RJ45 1 GbE Dedicated BMC LAN port
  • 2 RJ45 10 GbE LAN ports

    • USB:

  • 2 USB 3.2 Gen1 Type-A ports(front)

    • Video:

  • 1 VGA port

Management

  • SuperCloud Composer
  • Supermicro Server Manager (SSM)
  • Super Diagnostic Offline (SDO)
  • Supermicro Thin-Agent Service (TAS)
  • SuperServer Automation Assistant (SAA)

System Cooling

  • 4x 4-PIN PWM 8cm Fan(s)
  • 1 Air Shroud

Power Supply

  • 1x 2000W Redundant Titanium Level (96%) power supply

Chassis

    Enclosure:

    Height: 3.5" (89 mm)

    Width: 17.2" (437 mm)

    Depth: 17.72" (450 mm)

    Gross Weight: 23 lbs (10.43 kg)

    Net Weight: 17 lbs (7.7 kg)
