The Supermicro IoT SuperServer 212B-FN4TP features a compact 2U chassis with a short depth of just 11.8 inches. It includes a front I/O system with 2x hot-swappable 2.5" PCIe 5.0 NVMe drive bays and supports booting the OS via 2x M.2 PCIe 5.0 x2 NVMe slots on the system board, accommodating 2280 or 22110 form factor cards. This server supports a single Intel Xeon 6700E series processor with E-cores, offering up to 144 cores and 144 threads, and a maximum thermal design power (TDP) rating of 330W when air cooled.
Supermicro IoT SuperServer 212B-FN4TP - System Overview
Ideal for demanding applications such as 5G core and edge computing, AI inference, machine learning, and cloud computing, when fully equipped, the Supermicro 212B-FN4TP can support up to 1TB of RDIMM memory. With 8-memory channel architecture, memory modules are distributed across 8x DDR5 DIMM slots. Supported memory is capable of running at speeds up to 6400 MT/s. The server meets NEBS-Level 3 standards, making it suitable for critical applications in telecom networks and other carrier-grade environments. To tackle demanding workloads, it can accommodate up to 3x single-width GPUs connected via a PCIe 5.0 x16 CPU-to-GPU interconnect.

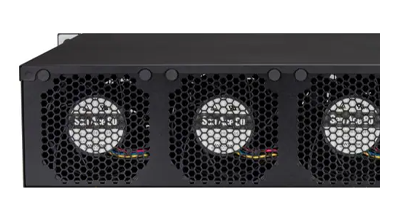

The system can be powered by either dual 600W or 800W redundant power supplies, which are accessible from the front of the chassis. 4x large cooling fans are located on the back of the system. For monitoring and managing the IoT SuperServer 212B-FN4TP, administrators can use software tools such as Supermicro Server Manager (SSM), Super Diagnostics Offline (SDO), and SuperServer Automation Assistant (SAA). Depending on the configuration, the server supports up to 5x PCIe slots using optional risers.
Configuration Options
Default
2x PCIe 5.0 x16 FHHL slots
1x PCIe 5.0 x16 HHHL slot
1x PCIe 5.0 x8 HHHL slot
3x PCIe 5.0 x16 FHHL slots
1x PCIe 5.0 x8 FHHL slot
1x PCIe 5.0 x8 HHHL slot
3x PCIe 5.0 x16 FHHL slots
1x PCIe 5.0 x8 FHHL slot
1x PCIe 5.0 x16 HHHL slot
*This system is only sold as a completely assembled system with a minimum of 1x CPU, 2x DIMM modules, and a single 2.5-inch drive.
Compose the exact configuration you looking for to build the perfect server. Just add components and quantities you would like to incorporate into the system
Get a quote for Supermicro IoT SuperServer 212B-FN4TP
If you know what you want but can't find the exact configuration you're looking for, have one of our knowledgeable sales staff contact you. Give us a list of the components you would like to incorporate into the system, and the quantities, if more than one. We will get back to you immediately with an official quote.
