Supermicro IoT SuperServer 221HE-FTNR

Dual 4th or 5th Generation Intel Xeon Scalable CPUs provide compute for the Supermicro IoT SuperServer 221HE-FTNR. Fully configured, the maximum memory capacity on this server is up to 8TB across 32x DDR5 DIMM slots. The rear of the system holds 6x 2.5-inch hot-swappable NVMe/SATA drive bays, plus internal slots on the system board for 2x NVMe or SATA M.2 drives. To expand the capabilities of the Supermicro 221HE-FTNR server, the system features 8x PCIe slots total with 6x PCIe 5.0 x16 full-height, full-length slots and 2x PCIe 5.0 x16 full-height, half-length slots.
Configure

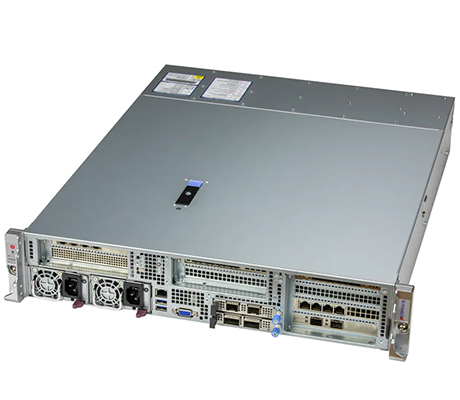

Supermicro 221HE-FTNR side view
Intel Partner Gold AMD Executive Elite System Builder NVIDIA Elite Partner
Configure

Supermicro IoT SuperServer 221HE-FTNR - System Overview

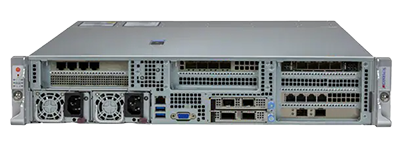

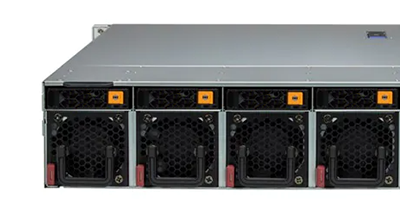

Supermicro SuperServer 221HE-FTNR front detail Supermicro SuperServer 221HE-FTNR detail top

Summary

The Supermicro IoT 221HE-FTNR server is designed for 5G Core and Edge applications, AI Inference and Machine Learning, Cloud Computing, and Network Function Virtualization. It’s powered by dual 2000W power supplies in a redundant configuration.

NOTE: This system is only sold as a complete system with at least 2 CPU, 4 DIMMs, 1 NIC adapter, & 1 HDD/SSD.

Available Configurations

Explore available configurations for the Supermicro IoT SuperServer 221HE-FTNR. Each configuration includes a specific combination of components and options to meet different performance, cooling, storage, and deployment requirements.

Supermicro IoT SuperServer 221HE-FTNR - Specifications

Processor - 2 Sockets

  • 5th Generation Intel Xeon Scalable Processor
  • 4th Generation Intel Xeon Scalable Processor
  • Supports Intel Xeon CPU Max Series with high bandwidth memory (HBM)​
  • Up to 60C/120T; Up to 112.5MB Cache per CPU
  • Supports up to 350W TDP CPUs (Air Cooled)

    • Socket:

  • 2 x LGA-4677

Motherboard

  • Super X13DEM

Memory

    Memory Slots:

  • 32 x DDR5 DIMM slots

    • Memory Capacty:

  • Up to 8TB: 32x 256GB DRAM

    • Memory Speed:

  • Up to 5600MHz

Drive Bays

    Hot-Swap:

  • 6 x 2.5" hot-swap NVMe/SATA drive bays (6x 2.5" NVMe hybrid)

    • M.2:

  • 2 x M.2 NVMe or 2 x M.2 SATA3
  • Form Factor: 2280/22110

Expansion Slots

  • 6 x PCIe 4.0 x16 FHFL slots
  • 2 x PCIe 4.0 x16 FHHL slots

On-Board Devices

    Chipset:

  • Intel C741 chipset

    • Network Controllers:

  • 2x 25GbE SFP28 with Broadcom® BCM57414 (optional)
  • 2x 100GbE QSFP28 with Broadcom® BCM57508 (optional)
  • 2x 100GbE QSFP28 with Intel® E810-CAM2 (optional)
  • 2x 100GbE QSFP28 or 4x 10GbE SFP+ with Intel® X710-BM2 (optional)
  • 2x 200GbE QSFP56 with Mellanox® CX-6 VPI (optional)
  • 2x 100GbE QSFP56 with Mellanox® CX-6 DX (optional)
  • 2x 1GbE BaseT with Intel® I350-AM2 (optional)
  • 4x 10GbE RJ45/SFP+ with Intel® X710-TM4 (optional)
  • 1x 400GbE OSFP with NVIDIA® CX-7 NDR (optional)
  • 4x 10GbE BaseT with Intel® X550 (optional)

    • IPMI:

  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Chassis

    Enclosure:

    Height: 3.5" (88.9mm)

    Width: 17.2" (437mm)

    Depth: 22.6" (574mm)
