Supermicro IoT SuperServer 221HE-FTNRD

Supporting 5G and Edge applications, the Supermicro IoT SuperServer 221HE-FTNRD is a 2U rackmountable server that supports dual 4th Generation Intel Xeon Scalable processors. Each CPU socket is in charge of 16x DIMM slots for a total of 32x active DDR5 DIMM slots. Fully configured, the maximum memory capacity is 8TB. The front of the system houses 6x 2.5-inch NVMe/SATA drive bays. There are 6x PCIe 5.0 x16 full-height, full-length expansion slots and 2x optional PCIe 5.0 x16 full-height, half-length expansion slots on the Supermicro 221HE-FTNRD server.

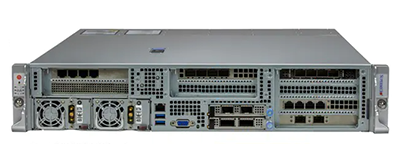

Supermicro IoT SuperServer 221HE-FTNRD - System Overview

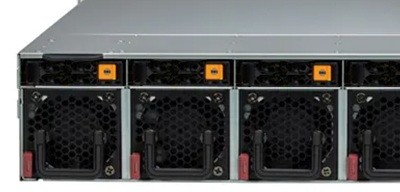

Supermicro SuperServer 221HE-FTNRD front detail

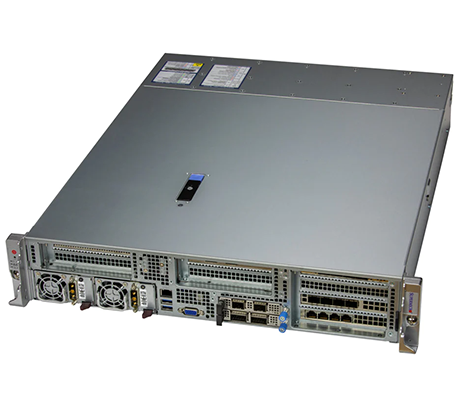

Supermicro SuperServer 221HE-FTNRD detail top

Summary

The Supermicro IoT 221HE-FTNRD server is designed for Virtualization, AI Inference and Machine Learning, Software-defined Storage, Cloud Computing, and Enterprise Server applications. It is powered by dual 1300W Titanium power supplies in a redundant configuration.

NOTE: This system is only sold as a complete system with at least 2 CPU, 4 DIMMs, 1 AIOM or advanced NIC adapter, and 1 HDD/SSD.

Supermicro IoT SuperServer 221HE-FTNRD - Specifications

Processor - 2 Sockets

5th Generation Intel Xeon Scalable Processor
4th Generation Intel Xeon Scalable Processor
Supports Intel Xeon CPU Max Series with high bandwidth memory (HBM)
Up to 60C/120T; Up to 112.5MB Cache per CPU
Supports up to 350W TDP CPUs (Air Cooled)

Socket:

2 x LGA-4677

Motherboard

Super X13DEM

Memory

32 x DDR5 DIMM slots

Memory Capacty:

Up to 8TB: 32x 256GB DRAM

Memory Speed:

Up to 5600MHz

Drive Bays

6 x 2.5" hot-swap NVMe/SATA drive bays (6 x 2.5" NVMe hybrid)

M.2:

2 x M.2 NVMe or 2 x M.2 SATA3
Form Factor: 2280/22110

Expansion Slots

6 x PCIe 5.0 x16 FHFL slots
2 x PCIe 5.0 x16 FHHL slots

On-Board Devices

Chipset:

Intel C741 chipset

Network Controllers:

2x 25GbE SFP28 with Broadcom® BCM57414 (optional)
2x 100GbE QSFP28 with Broadcom® BCM57508 (optional)
2x 100GbE QSFP28 with Intel® E810-CAM2 (optional)
2x 100GbE QSFP28 or 4x 10GbE SFP+ with Intel® X710-BM2 (optional)
2x 200GbE QSFP56 with Mellanox® CX-6 VPI (optional)
2x 100GbE QSFP56 with Mellanox® CX-6 DX (optional)
2x 1GbE BaseT with Intel® I350-AM2 (optional)
4x 10GbE RJ45/SFP+ with Intel® X710-TM4 (optional)
1x 400GbE OSFP with NVIDIA® CX-7 NDR (optional)
4x 10GbE BaseT with Intel® X550 (optional)

IPMI:

Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Chassis

Height: 3.5" (88.9mm)

Width: 17.2" (436.88mm)

Depth: 22.6" (574mm)
