Featuring a 2U form factor, the Supermicro IoT SuperServer 221HE-TNR is a dual-socket server supporting 4th and 5th generation Intel Xeon Scalable processors with a TDP of up to 350W. It can be outfitted with a maximum memory capacity of up to 8TB. Additionally, 6x 2.5” hot-swap drive bays are included on the system’s front panel that can be configured for NVMe, SATA, or SAS drives. 2x internal slots support M.2 NVMe or SATA3 drives.

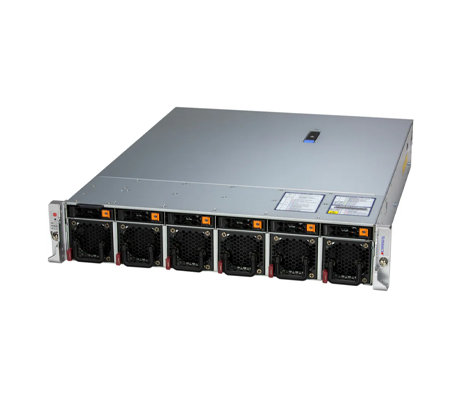

Supermicro IoT SuperServer 221HE-TNR - System Overview
32x DDR5 memory module slots can be populated with 256GB memory modules for maximum capacity. Designed for telecom micro data centers, cloud computing, AI inference, and machine learning, the Supermicro 221HE-TNR is powered by dual 2000W Titanium level power supplies in a redundant configuration. This machine supports up to 4x double-width GPUs. There are 6x PCIe 5.0 x16 full-height, full-length slots and 2x PCIe 5.0 x16 full-height, half-length slots for networking expansion possibilities, plus the following network connectivity options:
2x 25GbE SFP28 with Broadcom® BCM57414 (optional)
2x 100GbE QSFP28 with Broadcom® BCM57508 (optional)
2x 100GbE QSFP28 with Intel® E810-CAM2 (optional)
2x 100GbE QSFP28 or 4x 10GbE SFP+ with Intel® X710-BM2 (optional)
2x 200GbE QSFP56 with Mellanox® CX-6 VPI (optional)
2x 100GbE QSFP56 with Mellanox® CX-6 DX (optional)
2x 1GbE BaseT with Intel® I350-AM2 (optional)
4x 10GbE RJ45/SFP+ with Intel® X710-TM4 (optional)
1x 400GbE OSFP with NVIDIA® CX-7 NDR (optional)
4x 10GbE BaseT with Intel® X550 (optional)
Available Configurations
Explore available configurations for the Supermicro IoT SuperServer 221HE-TNR. Each configuration includes a specific combination of components and options to meet different performance, cooling, storage, and deployment requirements.
Supports Intel Xeon CPU Max Series with high bandwidth memory (HBM)
Up to 60C/120T; Up to 112.5MB Cache per CPU
Supports 350W TDP CPUs (Air Cooled)
Dual Socket E (LGA-4677)
Motherboard: Super X13DEM
Memory
Maximum Memory:
Up to 8TB: 32x 256 GB DRAM
Memory Slots:
32 x DIMM slots
Memory Type:
5600MHz ECC DDR5 RDIMM
Drive Bays
Hot-swap:
6x 2.5" hot-swap NVMe/SATA/SAS drive bays
M.2:
2x M.2 NVMe OR 2x M.2 SATA3
M-Key, 2280 and 22110
On-board Devices
SATA:
SATA3 (6Gbps); RAID 0/1/5/10 support
NVMe:
NVMe; RAID 0/1/5/10 support (Intel® VROC RAID Key required)
Chipset:
Intel C741
Network Controllers:
2x 25GbE SFP28 with Broadcom® BCM57414 (optional)
2x 100GbE QSFP28 with Broadcom® BCM57508 (optional)
2x 100GbE QSFP28 with Intel® E810-CAM2 (optional)
2x 100GbE QSFP28 or 4x 10GbE SFP+ with Intel® X710-BM2 (optional)
2x 200GbE QSFP56 with Mellanox® CX-6 VPI (optional)
2x 100GbE QSFP56 with Mellanox® CX-6 DX (optional)
2x 1GbE BaseT with Intel® I350-AM2 (optional)
4x 10GbE RJ45/SFP+ with Intel® X710-TM4 (optional)
1x 400GbE OSFP with NVIDIA® CX-7 NDR (optional)
4x 10GbE BaseT with Intel® X550 (optional)
IPMI:
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Input/Output
LAN:
1x RJ45 Dedicated BMC LAN port
USB:
2x USB 2.0 ports (front)
Video:
1x VGA Port
System BIOS
AMI 256MB SPI Flash
Management
Super Diagnostics Offline
IPMI 2.0, KVM with dedicated LAN
Supermicro Update Manager (SUM)
Supermicro Server Manager (SSM)
SuperDoctor® 5
Redfish API
Front Panel
Buttons:
Power On/Off button
LEDs:
HDD Activity LED
LAN1 Activity LED
LAN2 Activity LED
Power Fail
Power Status LED
System Information LED
Expansion Slots
6x PCIe 5.0 x16 FHFL slot(s)
2x PCIe 5.0 x16 FHHL slot(s)
If Slot 1 is configured as PCIe x16, Slot 2 will be disabled; If Slot 3 is configured as PCIe x16, Slot 4 will be disabled; If Slot 5 is configured as PCIe x16, Slot 6 will be disabled; (Optional) If Slot 7 is configured as PCIe x16, Slot 8 will be disabled.
Get a quote for Supermicro IoT SuperServer 221HE-TNR
If you know what you want but can't find the exact configuration you're looking for, have one of our knowledgeable sales staff contact you. Give us a list of the components you would like to incorporate into the system, and the quantities, if more than one. We will get back to you immediately with an official quote.
