Supermicro IoT SuperServer 222HE-FTN

The Supermicro IoT SuperServer 222HE-FTN is a 2U short-depth system supporting 6x rear hot-swap SFF NVMe, SAS, or SATA drive bays with optional configurations for 2x or 4x additional front hot-swap SFF NVMe drive bays. Under the hood, there are 2x internal M.2 PCIe 5.0 x2 NVMe slots for 2280 or 22110 form factor cards. At the heart of the server there are dual Intel Xeon 6 6700 series processor with E-cores delivering up to 144 cores and 144 threads and a maximum TDP of up to 330W. Up to 2TB of RDIMM DDR5 memory, distributed across 32x DDR5 DIMM slots, can be installed in this server when fully loaded.
Configure

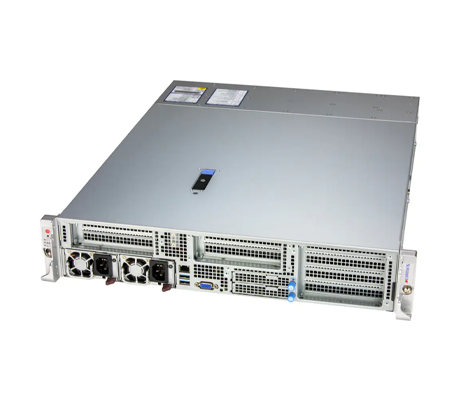

Supermicro IoT SuperServer 222HE-FTN side view
Intel Partner Gold AMD Executive Elite System Builder NVIDIA Elite Partner
Configure

Supermicro IoT SuperServer 222HE-FTN - System Overview

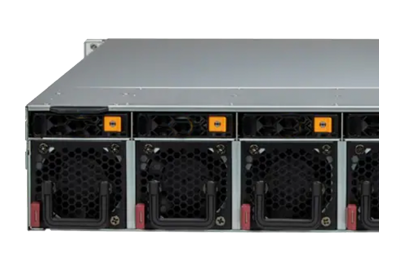

Supermicro IoT SuperServer 222HE-FTN front

The 22.6” depth system can be air cooled by 6x counter-rotating fans, or liquid cooled by an optional Direct to Chip (D2C) cold plate. Powered by 2x 1200W, 1300W, or 2000W Redundant (1 + 1) Titanium Level (96%) hot-plug power supplies, the 2U SuperServer 222HE-FTN supports up to 3x double-width or 4x single-width GPUs with a PCIe 5.0 x16 CPU-to-GPU interconnect. Apart from the expansion slots that accommodate these GPUs, there are 2x PCIe 5.0 x16 AIOM slots that support OCP 3.0 mezzanine cards. The system can also be outfitted with up to 4x CXL 2.0 x16/x8 devices. There can be up to eight PCIe slots on the server, depending on configuration:

Option A

  • 3x PCIe 5.0 x16 FH/10.5"L double-width slots
  • 1x PCIe 5.0 x16 FHHL slots
  • 2x PCIe 5.0 x16 AIOM slot(s) (OCP 3.0 compatible)

Option B

  • 6x PCIe 5.0 x8 (in x16) FH/10.5"L slots
  • 2x PCIe 5.0 x8 (in x16) FHHL slots
  • 2x PCIe 5.0 x16 AIOM slot(s) (OCP 3.0 compatible)

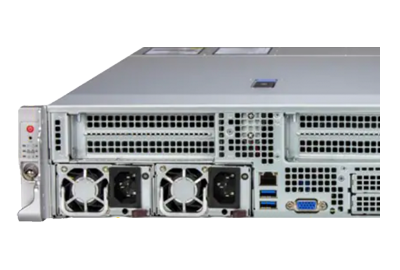

Supermicro IoT SuperServer 222HE-FTN rear

For management, administrators have access to several management utilities including; SuperCloud Composer, Supermicro Think-Agent Service (TAS), Supermicro Server Manager (SSM), Super Diagnostics Offline (SDO), and SuperServer Automation Assistant (SAA). This system is suitable for cloud computing, software-defined storage, virtualization, and 5G core and edge.

*This server can only be sold as a completely assembled system with a minimum of 2x CPUs, 2x DIMMs, 1x NIC, and 1x storage device such as HDD, HDS, and M.2. A NIC can either be an AIOM or PCIe card.

Available Configurations

Explore available configurations for the Supermicro IoT SuperServer 222HE-FTN. Each configuration includes a specific combination of components and options to meet different performance, cooling, storage, and deployment requirements.

Supermicro IoT SuperServer 222HE-FTN - Specifications

Processor - 2 Sockets

  • Intel Xeon 6 6700/6500 series processors with P-cores
  • Intel Xeon 6 6700 series processors with E-cores

  • P-cores: Up to 86C/172T; Up to 336MB Cache per CPU
  • E-cores: Up to 144C/144T; Up to 108MB Cache per CPU
  • Supports up to 330W TDP CPUs (Air Cooled)
  • Supports up to 330W TDP CPUs (Liquid Cooled)​

    • Socket:

  • Dual Socket E2 (LGA-4710)

Motherboard

  • Super X14DBM-SP

GPU

    Max GPU Count:

  • Up to 3x double-width or 4x single-width

    • Supported GPU:

  • NVIDIA PCIe: H100 NVL, H200 NVL (141GB), L40S, L4, A2

    • CPU-GPU Interconnect:

  • PCIe 5.0 x16 CPU-to-GPU Interconnect

    • GPU-GPU Interconnect:

  • PCIe

Memory

    Memory Slots:

  • 32 x DDR5 DIMM slots

    • Memory Capacity:

  • Max Memory (1DPC): Up to 4 TB 6400MT/s ECC DDR5 RDIMM
  • Max Memory (2DPC): Up to 8 TB 5200MT/s ECC DDR5 RDIMM

Drive Bays

    Default: Total 6 bays

  • 6x rear hot-swap 2.5" NVMe*/SAS*/SATA* drive bay(s)

    • Option A: Total 8 bays

  • 6x rear hot-swap 2.5" NVMe*/SAS*/SATA* drive bay(s)
  • 2x front hot-swap 2.5" NVMe* drive bay(s)

    • Option B: Total 10 bays

  • 6x rear hot-swap 2.5" NVMe*/SAS*/SATA* drive bay(s)
  • 4x front hot-swap 2.5" NVMe* drive bay(s)
    • *NVMe/SAS/SATA support may require additional storage controller and/or cables

    M.2:

  • 2 M.2 PCIe 5.0 x2 NVMe slots (M-key 2280/22110/25110)

Expansion Slots

    Option A:

  • 3x PCIe 5.0 x16 FH/10.5"L double-width slot(s)
  • 1x PCIe 5.0 x16 FHHL slot(s)
  • 2x PCIe 5.0 x16 AIOM slot(s) (OCP 3.0 compatible)

    • Option B:

  • 6x PCIe 5.0 x8 (in x16) FH/10.5"L slot(s)
  • 2x PCIe 5.0 x8 (in x16) FHHL slot(s)
  • 2x PCIe 5.0 x16 AIOM slot(s) (OCP 3.0 compatible)

    • CXL Support:

  • Up to 4 CXL 2.0 x16/x8 devices

    • M.2:

  • 2x M.2 PCIe 5.0 x2 NVMe slots (M-key 2280/22110)

On-Board Devices

    NVMe:

  • NVMe; RAID 0/1/5/10 support(Intel® VROC RAID key required)

    • Chipset:

  • System on Chip

    • Network Connectivity:

  • Via AIOM

LAN

  • 1x RJ45 1 GbE Dedicated BMC LAN ports

Fans

  • 6x counter-rotating 60x60x56mm Fan(s)
  • Direct to Chip (D2C) Cold Plate (optional)

Power Supply

  • 2x 2000W Redundant (1 + 1) Titanium (certification pending) Level (96%) Hot-plug power supplies
  • 2x 1200W power supplies
  • 2x 1300W Redundant (1 + 1) power supplies

Chassis

    Enclosure:

    Height: 3.5" (88.9mm)

    Width: 17.2" (436.88mm)

    Depth: 22.6" (574mm)

    Gross Weight: 47.4 lbs (21.5 kg)

    Net Weight: 34.4 lbs (15.6 kg)

Supermicro IoT SuperServer 222HE-FTN - Documentation

Supermicro IoT SuperServer 222HE-FTN Data Sheet Supermicro IoT SuperServer 222HE-FTN User Manual Supermicro IoT SuperServer 222HE-FTN Quick Reference Guide
