Supermicro IoT SuperServer 222HE-TN

The Supermicro IoT SuperServer 222HE-TN is a 2U, short-depth system with up to 6x hot-swap SFF hybrid drive bays on the front panel. Compute is provided by 2x Intel Xeon 6 series processors, either the 6700 or 6500 with P-cores or the 6700 with E-cores. Offering both air and liquid cooling, the maximum CPU TDP supported is up to 330W. When fully loaded, this server can accommodate up to 8TB of RDIMM memory spread across 32x DDR5 DIMM slots.
Configure
Supermicro IoT SuperServer 222HE-TN side view
Intel Partner Gold AMD Executive Elite System Builder NVIDIA Elite Partner
Configure

Supermicro IoT SuperServer 222HE-TN - System Overview

Supermicro IoT SuperServer 222HE-TN front

The SuperServer 222HE-TN is built for virtualization, 5G core and edge, cloud computing, and more. The front panel holds up to 6x hot-swap 2.5" NVMe, SAS, or SATA drive bays, plus the option to install up to 2x to 4x hot-swap 2.5" NVMe drive bays on the rear. To boot the operating system, there are 2x M.2 PCIe 5.0 x2 NVMe slots on the system board with support for 2280, 22110, or 25110 form factor cards.

The system can be configured with 3x double-width or 4x single-width GPUs with a PCIe 5.0 x16 CPU-to-GPU interconnect. The 22.6” short-depth system is powered by 2x 1200W, 1300W, or 2000W Redundant (1 + 1) Titanium Level (96%) PSUs. The server can provide up to 8x PCIe slots depending on the installed risers.

Configuration Options

Option A

  • 3x PCIe 5.0 x16 FH/10.5"L double-width slots
  • 1x PCIe 5.0 x16 FHHL slots
  • 2x PCIe 5.0 x16 AIOM slot(s) (OCP 3.0 compatible)

Option B

  • 6x PCIe 5.0 x8 (in x16) FH/10.5"L slots
  • 2x PCIe 5.0 x8 (in x16) FHHL slots
  • 2x PCIe 5.0 x16 AIOM slot(s) (OCP 3.0 compatible)

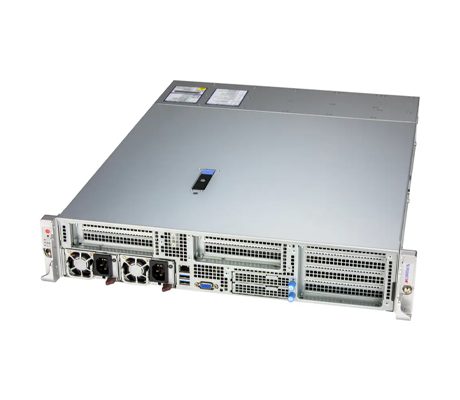

Supermicro IoT SuperServer 222HE-TN rear

In addition, there are 2x PCIe 5.0 x16 AIOM slots that are compatible with OCP 3.0, plus support for up to 4x CXL 2.0 x16/x8 devices. The rear I/O panel holds 1x VGA port, 2x USB 3.2 Gen1 ports, and a dedicated BMC LAN port. Software, including SuperCloud Composer, Supermicro Think-Agent Service (TAS), Supermicro Server Manager (SSM), Super Diagnostics Offline (SDO), and SuperServer Automation Assistant (SAA) can be utilized to manage the platform.

*This server can only be sold as a completely assembled system with a minimum of 2x CPUs, 2x DIMMs, 1x NIC, and 1x storage device. A NIC can either be an AIOM or PCIe card.

Supermicro IoT SuperServer 222HE-TN - Specifications

Processor - 2 Sockets

  • Intel Xeon 6 6700/6500 series processors with P-cores
  • Intel Xeon 6 6700 series processors with E-cores

  • P-cores: Up to 86C/172T; Up to 336MB Cache per CPU
  • E-cores: Up to 144C/144T; Up to 108MB Cache per CPU
  • Supports up to 330W TDP CPUs (Air Cooled)
  • Supports up to 330W TDP CPUs (Liquid Cooled)​

    • Socket:

  • Dual Socket E2 (LGA-4710)

Motherboard

  • Super X14DBM-SP

GPU

    Max GPU Count:

  • Up to 3x double-width or 4x single-width

    • CPU-GPU Interconnect

  • PCIe 5.0 x16 CPU-to-GPU Interconnect

    • GPU-GPU Interconnect

  • PCIe

Memory

    Memory Slots:

  • 32 x DDR5 DIMM slots

    • Memory Capacity:

  • Max Memory (1DPC): Up to 4TB 6400MT/s ECC DDR5 RDIMM
  • Max Memory (2DPC): Up to 8TB 5200MT/s ECC DDR5 RDIMM

Drive Bays

    Default: Total 6 bays

  • 6x front hot-swap 2.5" NVMe*/SAS*/SATA* drive bays

    • Option A: Total 8 bays

  • 6x front hot-swap 2.5" NVMe*/SAS*/SATA* drive bay(s)
  • 2x rear hot-swap 2.5" NVMe* drive bay(s)

    • Option B: Total 10 bays

  • 6x front hot-swap 2.5" NVMe*/SAS*/SATA* drive bay(s)
  • 4x rear hot-swap 2.5" NVMe* drive bay(s)
    • *NVMe/SAS/SATA support may require additional storage controller and/or cables

    M.2:

  • 2 M.2 PCIe 5.0 x2 NVMe slots (M-key 2280/22110/25110)

Expansion Slots

    Option A*

  • 3x PCIe 5.0 x16 FH/10.5"L double-width slot(s)
  • 1x PCIe 5.0 x16 FHHL slot(s)
  • 2x PCIe 5.0 x16 AIOM slot(s) (OCP 3.0 compatible)

    • Option B*

  • 6x PCIe 5.0 x8 (in x16) FH/10.5"L slot(s)
  • 2x PCIe 5.0 x8 (in x16) FHHL slot(s)
  • 2x PCIe 5.0 x16 AIOM slot(s) (OCP 3.0 compatible)
    • *Requires additional parts

On-Board Devices

    NVMe:

  • NVMe; RAID 0/1/5/10 support(Intel® VROC RAID key required)

    • Chipset:

  • System on Chip

    • Network Connectivity:

  • Via AIOM

LAN

  • 1x RJ45 1 GbE Dedicated BMC LAN ports

Fans

  • 6x counter-rotating 60x60x56mm Fan(s)
  • Direct to Chip (D2C) Cold Plate (optional)

Power Supply

  • 2x 2000W Redundant (1 + 1) Titanium (certification pending) Level (96%) Hot-plug power supplies
  • 2x 1200W Redundant (1 + 1) Titanium Level (96%) power supplies
  • 2x 1300W Redundant (1 + 1) power supplies

Chassis

    Enclosure:

    Height: 3.5" (88.9mm)

    Width: 17.2" (436.88mm)

    Depth: 22.6" (574mm)

    Gross Weight: 47.4 lbs (21.5 kg)

    Net Weight: 34.4 lbs (15.6 kg)

Supermicro IoT SuperServer 222HE-TN - Documentation

Supermicro IoT SuperServer 222HE-TN Data Sheet Supermicro IoT SuperServer 222HE-TN User Manual Supermicro IoT SuperServer 222HE-TN Quick Reference Guide
