Supermicro IoT SuperServer 510D-4C-FN6P

Offering short chassis depth of less than 10”, the Supermicro IoT SuperServer 510D-4C-FN6P is a mini 1U server designed for retail and firewall applications. This system has a single socket configuration, compatible with Intel Xeon Processor D-1700 Series. There are 4x DIMM slots on the system board, with a maximum memory capacity of 256GB. The storage configuration on this system includes 4x 2.5” SATA/PCIe internal drive bays. System expansion can be achieved through a single PCIe Gen4 x16 full-height, half-length slot.
Configure

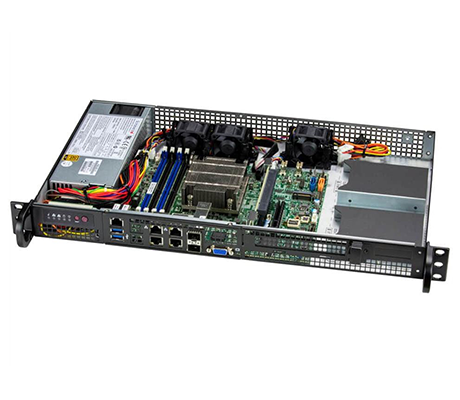

Supermicro 510D-4C-FN6P side view
Intel Partner Gold AMD Executive Elite System Builder NVIDIA Elite Partner
Configure

Supermicro IoT SuperServer 510D-4C-FN6P - System Overview

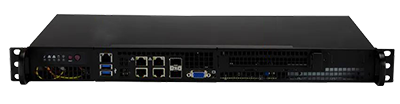

Supermicro SuperServer 510D-4C-FN6P front detail Supermicro 510D-4C-FN6P detail top

Additional Features

With a smaller physical footprint, the Supermicro IoT 510D-4C-FN6P server is a great option for retail applications. There are 1x M.2 NVMe or 2x M.2 SATA3 slots available on the system board, ideal for fast access storage needs or OS installation. Network connectivity options are plentiful on the Supermicro 510D-4C-FN6P with 4x 1GbE Base-T ports and 2x 25GbE SFP28 ports.

Available Configurations

Explore available configurations for the Supermicro IoT SuperServer 510D-4C-FN6P. Each configuration includes a specific combination of components and options to meet different performance, cooling, storage, and deployment requirements.

Supermicro IoT SuperServer 510D-4C-FN6P - Specifications

Processor - 1 Socket

  • Intel Xeon Processor D-1700 Series

    • Socket:

  • Single FCBGA-2227

    • TDP:

  • 46W

Motherboard

  • Super X12SDV-4C-SP6F

Memory

    Memory Capacity:

  • 4 x DIMM slots
  • Supports up to 256GB: ECC RDIMM
  • Memory Type: 2933MHz ECC DDR4 RDIMM

Drive Bays

    Drive Bays:

  • 4 x 2.5" SATA/PCIe drive bays
  • 2 x front fixed 2.5" SATA3 drive bays

    • M.2:

  • 1 x M.2 NVMe or 2 x M.2 SATA3
  • 1 x M-KEY
  • 1 x B-KEY
  • 1 x E-KEY
  • 2280/2230/3042/3052

Expansion Slots

    PCIe:

  • 1 x PCIe Gen 4 x16 FHHL slot

On-Board Devices

    Chipset:

  • Intel SoC

    • Network Connectivity:

  • 2 x 1GbE BaseT with Intel i210
  • 2 x 25GbE SFP28 with Intel SOC
  • 2 x 1GbE BaseT with Intel i350-AM2

    • IPMI:

  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Input / Output

    LAN:

  • 1 x RJ45 Dedicated IPMI LAN port
  • 2 x RJ45 1Gbe Intel I210-IT
  • 2 x RJ45 1Gbe Intel I350-AM2
  • 2 x SFP28 25Gbe Intel SOC

    • Video:

  • 1 x VGA port

Management

  • IPMI 2.0
  • KVM with dedicated LAN
  • Super Diagnostics Offline
  • SuperDoctor 5
  • Supermicro Update Manager (SUM)
  • Supermicro Server Manager (SSM)
  • Redfish API

System Cooling

    Fans:

  • 4x 4-PIN PWM 40x28mm Fan(s) (optional)

Power Supply

  • 200W Gold Level power supply

Chassis

    Enclosure:

    Height: 1.7" (43mm)

    Width: 17.2" (437mm)

    Depth: 9.8" (249mm)

Supermicro IoT SuperServer 510D-4C-FN6P - Documentation

Supermicro IoT SuperServer 510D-4C-FN6P Data Sheet Supermicro IoT SuperServer 510D-4C-FN6P User's Manual
