Supermicro IoT SuperServer 510D-8C-FN6P

Offering a short chassis length, the Supermicro IoT SuperServer 510D-8C-FN6P is outfitted with a single Intel Xeon Processor D-1736NT system on a chip CPU with a TSP of up to 67W. Featuring a depth of only 249mm, it is classified as a mini-1U server and supports only 4x internally mounted 2.5-inch SATA/PCIe drive bays along with a memory capacity of up to 256GB. There is also a single slot for an NVMe or SATA3 M.2 drive.
Configure

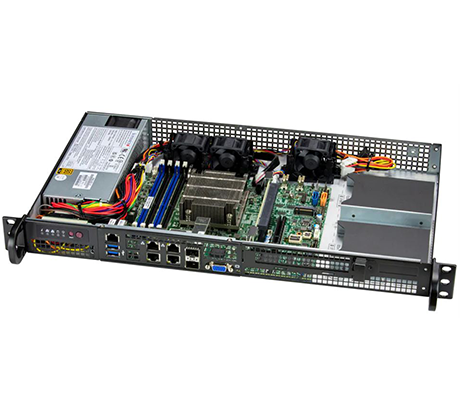

Supermicro 510D-8C-FN6P side view
Intel Partner Gold AMD Executive Elite System Builder NVIDIA Elite Partner
Configure

Supermicro IoT SuperServer 510D-8C-FN6P - System Overview

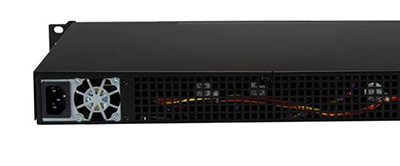

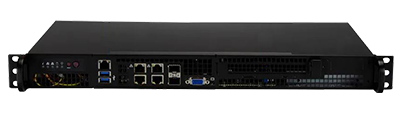

Supermicro SuperServer 510D-8C-FN6P front detail Supermicro 510D-8C-FN6P detail top

Additional Features

The Supermicro IoT 510D-8C-FN6P server is designed to support Intel QuickAssist Technology, which encompasses the compression and decompression of files for storage, cloud, enterprise, database, Internet of Things (IoT) or machine learning. Network connectivity includes 2x 1GbE BaseT with Intel i210, 2x 1GbE BaseT with Intel i350-AM2, and 2x 25GbE SFP28 with Intel SOC. A single full-height, half-length PCIe 4.0 slot provides additional opportunities for expansion options. The Supermicro 510D-8C-FN6P is powered by a 200W low-noise AC-DC 100-240Vac / 50-60Hz power supply .

Supermicro IoT SuperServer 510D-8C-FN6P - Specifications

Processor - 1 Socket

  • Intel Xeon Processor D-1736NT

    • TDP:

  • 67W

    • Socket:

  • FCBGA-2227

Motherboard

  • Super X12SDV-8C-SP6F

Memory

    Memory Capacity:

  • 4 x 64GB: Up to 256GB ECC RDIMM

    • Memory Type:

  • 2933MHz ECC DDR4 RDIMM

Drive Bays

    Drive Bays:

  • 4 x 2.5" SATA/PCIe drive bays

    • M.2:

  • 1 x M.2 NVMe OR 2 x M.2 SATA3

Expansion Slots

    PCIe:

  • 1 x PCIe Gen 4 x16 FHHL slot

On-Board Devices

    Chipset:

  • Intel SoC

    • Network Connectivity:

  • 4 x 1GbE GbE
  • 2 x Intel I210-IT
  • 2 x Intel I350-AM2
  • 2 x 25GbE SFP28 with Intel SOC

    • IPMI:

  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Input / Output

    Video:

  • 1 x VGA port

Management

  • IPMI 2.0
  • KVM with dedicated LAN
  • Super Diagnostics Offline
  • SuperDoctor 5
  • Supermicro Update Manager (SUM)
  • Supermicro Server Manager (SSM)
  • Redfish API

System Cooling

    Fans:

  • 4 x 4-PIN PWM 40x28mm Fans (optional)

Power Supply

  • 1 x 200W Gold Level 100-240Vac / 50-60Hz power supply

Chassis

    Enclosure:

    Height: 1.7" (43mm)

    Width: 17.2" (437mm)

    Depth: 9.8" (249mm)

Supermicro IoT SuperServer 510D-8C-FN6P - Documentation

Supermicro IoT SuperServer 510D-8C-FN6P Data Sheet
