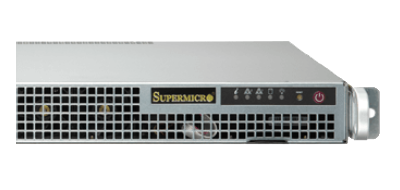

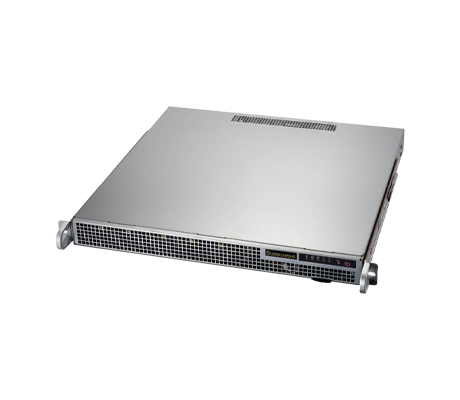

Supermicro Mainstream A+ Server 1015A-MT

The system supports CPUs with a maximum TDP of up to 170W, plus 16 physical cores and 32 virtual threads. Supported GPUs include the NVIDIA PCIe RTX 4000 Ada Generation GPU, NVIDIA RTX A4000, NVIDIA L4, NVIDIA A2, or AMD PCIe Radeon Pro W7500 GPU. With a 16.9-inch depth chassis, the Supermicro 1015A-MT packs various storage options such as a single internal fixed 3.5” SATA drive bay, or 4x internal fixed 2.5” SATA drive bays. To boot the operating system, the system can be outfitted with 2x M.2 PCIe 5.0 x4 NVMe slots for 2280 or 22110 cards. There are 4x memory module slots surrounding the processor for a total of up to 192GB ECC or non-ECC DDR5 UDIMMs with maximum speeds of up to 5200MT/s.

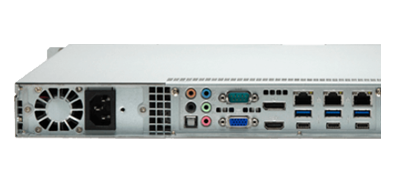

The rear of the chassis offers 1x RJ45 1GbE with Realtek RTL8211F PHY dedicated to IPMI and 2x RJ45 1GbE with Intel I210-AT. The Supermicro Mainstream 1015A-MT is powered by 1x 500W Platinum Level (93%) power supply, also accessible from the rear of the chassis. To manage the system, administrators have the choice to deploy numerous Supermicro tools such as SuperDoctor 5, SuperServer Automation Assistant, and Supermicro Server Manager. SuperDoctor 5 works on Windows and Linux and can be used through a command-line or web-based interface. Information like CPU temperature, power use, and fan speed can be managed, either locally or remotely.
