Supermicro MainStream A+ Server 2024S-TR

The Supermicro MainStream A+ Server 2024S-TR is a 2U rack-mountable server designed for virtualization, data center applications, model analysis, enterprise server tasks deployment, and other compute intensive applications. This server supports 2x 2nd or 3rd Generation AMD EPYC Series processors and a total of 16x DIMM slots on the system board. On the front of the system, there are 12x 3.5-inch hot-swap NVMe/SATA drive bays.
Configure

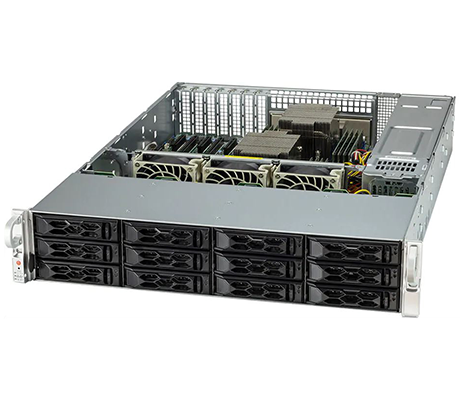

Supermicro 2024S-TR side view
Intel Partner Gold AMD Executive Elite System Builder NVIDIA Elite Partner
Configure

Supermicro MainStream A+ Server 2024S-TR - System Overview

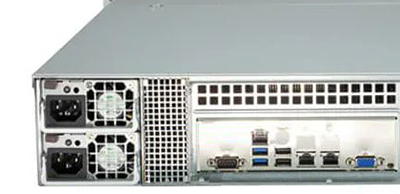

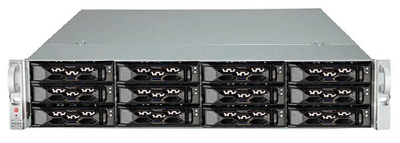

Supermicro A+ Plus 2024S-TR front detail Supermicro 2024S-TR detail rear

Additional Features

At full memory capacity the Supermicro 2024S-TR server will support up to 4TB of DDR4 registered (RDIMM) or load-reduced memory modules (LRDIMM). The rear of the server houses dual Gigabit LAN ports. There are 3x PCIe 4.0 x8 low-profile slots and 3x PCIe 4.0 x16 low-profile slots available on the rear of the server. Support for up to 12 NVMe drives is with an optional NVMe kit, as the default storage configuration includes 8x SATA and 4x NVMe drives. System management is achieved via a single Baseboard Management Controller LAN port. A single M.2 NVMe slot is available on the system board ideal for OS installation or fast access storage needs. The system is powered by dual redundant 920W power supply units.

Supermicro MainStream A+ Server 2024S-TR - Specifications

Processor - 2 Sockets

  • AMD EPYC 7002 Series Processors
  • AMD EPYC 7003 Series Processors

    • Socket:

  • SP3 / LGA4094

    • Cores:

  • 64x

    • Threads:

  • 128x

Motherboard

  • Super H12DSi-N6

Memory

    Memory Capacity:

  • Up to 4TB: 16x 256 GB DRAM

    • Memory Type:

  • 3200MHz ECC DDR4 RDIMM, LRDIMM

Drive Bays

    Drive Bays:

  • 12 x 3.5" hot-swap SATA/NVME drive bays
  • 3.5" drive installation is tool-less, 2.5" drives will require screws. Default drive configuration is 8 SATA + 4 NVMe, other configurations require additional optional parts)

    • M.2:

  • 1 x M.2 NVMe
  • M-Key, 2280 and 22110

Expansion Slots

    PCIe:

  • 3 x PCIe 4.0 x8 LP slots
  • 3 x PCIe 4.0 x16 LP slots

On-Board Devices

    Chipset:

  • AMD SP3

    • Network Connectivity:

  • 2 x 1GbE BaseT ports

    • IPMI:

  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Input / Output

    LAN:

  • 1 x RJ45 Dedicated IPMI LAN port
  • 2 x RJ45 1GbE LAN ports

    • USB:

  • 2 x USB 2.0 ports (2 rear)
  • 2 x USB 3.0 ports (2 rear)

    • Video:

  • 1 x VGA port

    • Serial Port:

  • 1 x COM Port (1 COM)

    • DOM:

  • 2 x SuperDOM (Disk on Module) port

Management

  • Intelligent Platform Managemnt Interface (IPMI) 2.0
  • KVM with dedicated LAN
  • Super Diagnostics Offline
  • SuperDoctor 5
  • Supermicro Update Manager (SUM)
  • Supermicro Server Manager (SSM)
  • Redfish API

System Cooling

    Fans:

  • 3 x Middle 80mm Fans

Power Supply

  • 2 x 920W Redundant Platinum Level Power Supplies

Chassis

    Enclosure:

    Height: 3.5" (89mm)

    Width: 17.2" (437mm)

    Depth: 25.5" (648mm)

Supermicro MainStream A+ Server 2024S-TR - Documentation

Supermicro Mainstream A+ Server 2024S-TR Data Sheet Supermicro Mainstream A+ Server 2024S-TR User's Manual
