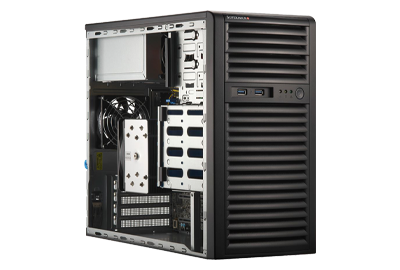

Compatible CPUs can provide up to 16 cores, 32 threads, and are limited to a maximum TDP range of up to 170W. Powered by a 668W Platinum Level (92%) power supply, the Supermicro 3015A-I delivers 4x front fixed SATA drive bays with either 2.5” or 3.5” storage configurations. In addition to these bays, the tower has 2x 5.25" peripheral bays that can be outfitted with optical drives or additional storage with an optional mobile rack. 2x M.2 PCIe 5.0 x4 slots on the system board can support NVMe M.2 drives and used for additional storage or to boot the OS. By default, this system features 1x PCIe 5.0 x16 FHFL slot with an option to support 2x PCIe 5.0 x8 FHFL slots. The mini-tower also supports a double width GPU either from the NVIDIA or AMD’s lineup:
Several Supermicro tools, including the SuperServer Automation Assistant, SuperDoctor 5, and Supermicro Server Manager are available to help administrators maintain the system. SuperDoctor 5, utilized via a web page or command line interface, is compatible with both Linux and Windows operating systems. Whether at-chassis or remotely via the dedicated IPMI LAN port, these software utilities help regulate elements like the CPU temperature, power consumption, and fan speed.
