Supermicro MainStream SuperServer 221P-C9R

The Supermicro MainStream SuperServer 221P-C9R is compatible with up to 2x 4th or 5th Generation Intel Xeon Scalable processors. Each CPU socket is connected to 8x DIMM slots for a total of 16x slots on the system board. 16x 2.5-inch hot-swappable drive bays on the front of the system support SAS and SATA drive types. Expanding the capabilities of this system are achieved via 4x PCIe 5.0 x16 low-profile slots and a single PCIe 5.0 x8 low-profile slot available on the rear of the system.

Overview

Supermicro MainStream SuperServer 221P-C9R - System Overview

Supermicro SuperServer 2015S-E1CR24L front detail

Additional Features

Offering a great deal of flexibility, the Supermicro MainStream 221P-C9R is designed for virtualization applications, enterprise server deployment, application and data serving, and compute intensive tasks. Outfitted with 2x 4th or 5th Generation Intel Xeon Scalable processors it can provide a maximum memory capacity of 4TB across 16x DIMM slots. 2x M.2 slots available on the system board are a great option for fast access storage needs or OS installation. There are also 2x 2.5-inch drive bays on the back of the system.

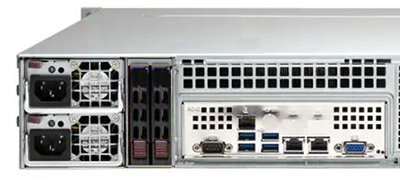

To connect the 221P-C9R to your network infrastructure there are dual RJ-45 LAN ports on the rear of the system, plus a dedicated IPMI GbE management port. 5x PCIe 5.0 slots provide options for additional NICs or storage controllers. The system is powered by dual redundant 1200W Titanium grade power supply units.

Specifications

Supermicro MainStream SuperServer 221P-C9R - Specifications

Processor - 2 Sockets

5th Generation Intel Xeon Scalable Processors
4th Generation Intel Xeon Scalable Processors
Up to 300W TDP (air cooled)
Super X13DEI

Socket:

Dual Socket E (LGA-4677)

Motherboard

Super X13DEI

Memory

Up to 4TB: 16x 256 GB DRAM

Memory Type:

5600MHz ECC DDR5 RDIMM

Drive Bays

16x 2.5" hot-swap drive bays
(8x SAS drive bays in the slot 0~7 via Broadcom® 3908 HW RAID and 8x SATA3 drive bays in the slot 8~15 via Intel® C741. Configurable option for 4x hot-swap NVMe in drive bay slot 0~3. NVMe or Additional SAS support requires additional parts.)

M.2:

2 x M.2 NVMe
M-Key, 2280 and 22110

Peripheral Bays:

1 x (slim or 5.25") DVD drive bays (optional)

Expansion Slots

4 x PCIe 5.0 x16 LP slots
1 x PCIe 5.0 x8 LP slots

On-Board Devices

Chipset:

Intel C741

Network Connectivity:

2 x 1GbE ports

IPMI:

Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Input / Output

1 x RJ45 Dedicated BMC LAN port

USB:

2 x USB 2.0 ports (2 front)
4 x USB 3.0 ports (4 rear)

Video:

1 x VGA port

Serial Port:

2 x COM Ports (1 front; 1 rear)

DOM:

2 x SuperDOM (Disk on Module) port

Management

Intelligent Platform Managemnt Interface (IPMI) 2.0
KVM with dedicated LAN
Super Diagnostics Offline
SuperDoctor 5
Supermicro Update Manager (SUM)
Supermicro Power Manager (SPM)
Supermicro Server Manager (SSM)
Redfish API

System Cooling

3x 8cm heavy duty fans with optimal fan speed control

Power Supply

2 x 1200W Redundant Titanium Level Power Supplies

Chassis

Height: 3.5" (89mm)

Width: 17.2" (437mm)

Depth: 24.8" (630mm)

Documentation

Supermicro MainStream SuperServer 221P-C9R - Documentation

Supermicro Mainstream SuperServer 221P-C9R Data Sheet Supermicro Mainstream SuperServer 221P-C9R User Manual Supermicro Mainstream SuperServer 221P-C9R Quick Reference Guide
