Xeon 6700 and 6500 series CPUs with P-cores support up to 128 cores and 256 threads per socket, while Xeon 6700 series models with E-cores offer up to 144 cores and 144 threads. With air cooling, the system supports CPUs with a TDP of up to 350W. With a compact 25.5-inch chassis depth, the Supermicro SuperServer 622B-TRT is ideal for virtualization, compute-intensive workloads, and more.

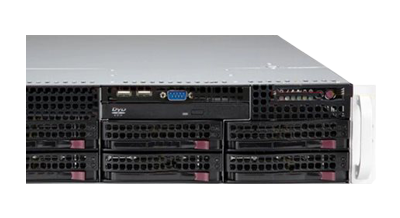

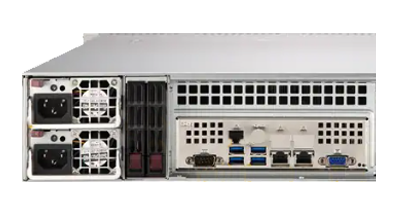

The front panel features a total of 8x drive bays with 4x 3.5" hot-swap bays supporting NVMe, SAS, or SATA drives and 4x bays for SAS or SATA drive types. An optional kit allows the installation of 2x additional fixed SATA drive bays above the existing bays. The rear of the chassis includes 2x 2.5" hot-swap bays for NVMe, SAS, or SATA drives. NVMe and SAS configurations may require additional controllers or cables. For OS boot or additional storage, the X14 motherboard offers 2x M.2 PCIe 5.0 x4 NVMe slots. An optional slim DVD drive can also be installed on the front panel.
Inside, the Supermicro 622B-TRT offers expansion via 2x PCIe 5.0 x8 low-profile slots and 4x PCIe 5.0 x16 low-profile slots. Power is provided by dual 1200W redundant Titanium-level power supplies for maximum efficiency and reliability. System management is supported through Supermicro’s software suite, including Super Diagnostics Offline (SDO), Supermicro Server Manager (SSM), and SuperServer Automation Assistant (SAA). SAA, a command-line utility, enables administrators to deploy, configure, and update systems from a single node to an entire data center.
